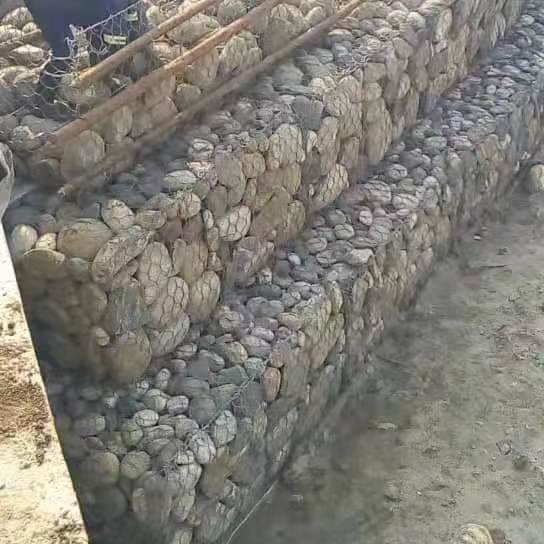

Hexagon Galfan Gaybian Basket Woven Stone Filled 8x10cm For Seawall Protection

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE, SGS
Model Number: SX-1 Gabion Box
Trading Properties
Minimum Order Quantity: 1000 square meter
Price: USD1.11
Standard Packaging: Packing with tape
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, D/A, D/P, Western Union,
Supply Ability: 10000 square meter per month
Product Summary
Hexagon Galfan Gabion Box Woven Stone Filled Gabion Basket 8X10CM For Seawall Protection Gabion Box Product Description Gabion box also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is ...

Product Details

Highlight:

galfan gaybian basket

,

stone filled gaybian basket

,

seawall protection gabion mesh basket

Name: Gabion Box
Wire Diameter: 2.7, 3.0, 3.4mm
Hole Size: 6x8cm, 8*10cm ,10x12cm
Surface Treatment: PVC Coated, Hot Dipped Galvanized
Color: Silver,gray,green
Application: Construction Wire Mesh,Cages,Protecting Mesh
Package: Wooden Pallet Rolls
Certification: CE,ISO
Product Description

Hexagon Galfan Gabion Box Woven Stone Filled Gabion Basket 8X10CM For Seawall Protection



Gabion Box Product Description



Gabion box also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.



Specification



Gabion box

(mesh size):

80*100mm

100*120mm

Mesh Wire diameter 2.7mm zinc coating:60g,245g, ≥270g/m2
Edge wire diameter 3.4mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g,≥220g/m2

Gabion mattress

(mesh size):

60*80mm

Mesh wire diameter. 2.2mm zinc coating:60g, ≥220g/m2
Edge wire diameter. 2.7mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g, ≥220g/m2



special sizes Gabion

are available



Mesh wire diameter 2.0~4.0mm

superior quality,competitive price and

considerate service

Edge wire diameter 2.7~4.0mm
Tie wire diameter 2.0~2.2mm



Material galvanized wire, Zn-Al(Galfan) coated wire/ PVC coated wire
Application

can be widely used in flood controlling,retaining wall,river bank protection,

slope protection .

Hole shape Hexagonal





Gabion box material:

(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.

(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.

(3) Coated galvanized steel wire: low carbon steel wire PVC coated.

(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm,

(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested

Hexagon Galfan Gaybian Basket Woven Stone Filled 8x10cm For Seawall Protection



Packing and Loading

After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.

The packing:

woven bags of the above and bottom,high quality package or as customers requested In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet. according to customers requirement.

The Shipping:

Production time :15-20 days after received your payments Transportation way : by see or by air Port: XinGang TianJin or as your order

Hexagon Galfan Gaybian Basket Woven Stone Filled 8x10cm For Seawall Protection

Our Company

Anping Shuxin Wire Mesh Manufactory Co., Ltd, was established in 2013, is a professional manufacturer.



In recent years, our company has introduced a series of advanced equipment including welded wire mesh machine,Cutting Machine,Bending machine,air pump,Punching machine. We have strong technical strength,scientific management and complete inspection means to guarantee iron wire products of high grade .We will with the most preferential price,best quality in the face of the customer.

Hexagon Galfan Gaybian Basket Woven Stone Filled 8x10cm For Seawall Protection
