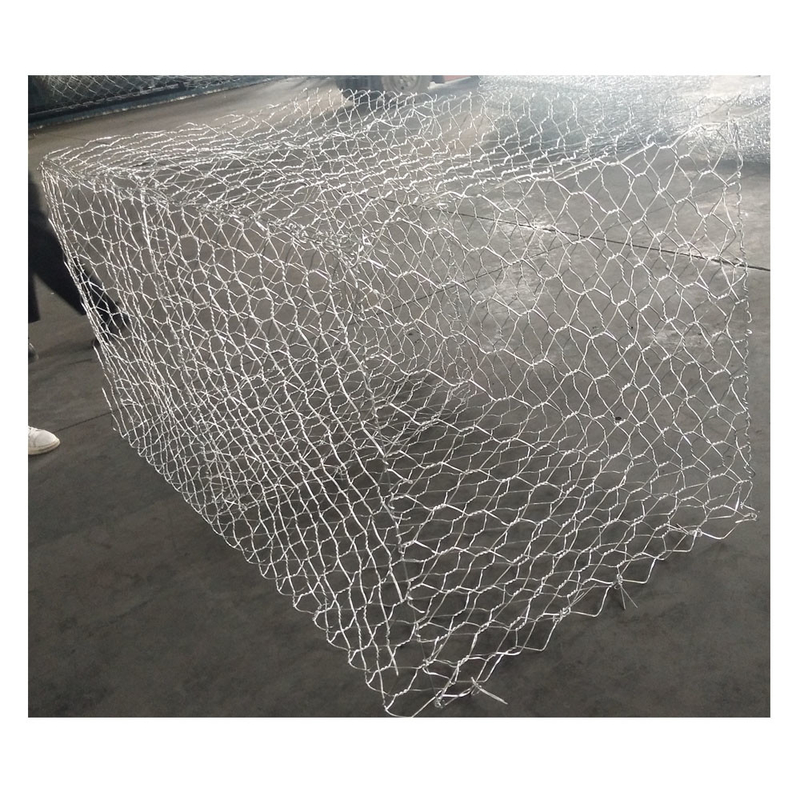

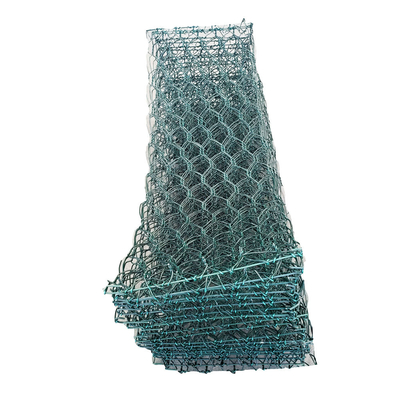

4.0mm Gabion Box Hexagonal Iron Wire Mesh 2x1x1 M

4.0mm Gabion Box Hexagonal Iron Wire Mesh 2x1x1 M
4.0mm Gabion Box Hexagonal Iron Wire Mesh 2x1x1 M
4.0mm Gabion Box Hexagonal Iron Wire Mesh 2x1x1 M 4.0mm Gabion Box Hexagonal Iron Wire Mesh 2x1x1 M 4.0mm Gabion Box Hexagonal Iron Wire Mesh 2x1x1 M 4.0mm Gabion Box Hexagonal Iron Wire Mesh 2x1x1 M

Large Image :  4.0mm Gabion Box Hexagonal Iron Wire Mesh 2x1x1 M

Product Details:
Place of Origin: Hebei, CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: SX-GABION
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: Negotiated
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per day

4.0mm Gabion Box Hexagonal Iron Wire Mesh 2x1x1 M

Description
Wire Gauge: 2.0mm-4.0mm Aperture: 60*80,80*100,100*120 Mm
Cage Size: 1*1*1m,2*1*1m,3*1*1m Mesh Shape: Hexagonal Hole
Feature: Anti-corrosion,Easily Install Application: Retaining Wall,Prevent The Water And Soil Lost
High Light:

4.0mm gabion box

,

2x1x1 m gabion box

,

iron gabion mesh basket

Hexagonal Iron Wire Gabion Box Mesh 2x1x1 m Gabion Basket In Philippines

Product Description:

Stone Gabion Mesh are made of high quality steel wire, which has 2 types of fabrication: double or triple twist fabric. The fabric structures are flexible and variable. Compared with welded gabion baskets, woven gabion baskets have durability for a long service life.
Gabion are rectangular baskets made of heavily galvanized, double twisted, steel woven wire mesh. The single unit constructed baskets are assembled, laced together and then filled with stone to form a monolithic structure.

Hole size: 60*80mm,80*100mm,100*120mm, etc

Wire size:
1.Mesh wire: 2mm-4mm
2.Edge wire: 0.5mm-1mm
3.Binding wire: 2.2mm


Tensile resistance: Above 38kg/m2 380N/mm

Gabion Wall Cages SpecificationsMesh hole modle
 8x10cm6x8cm
Length(m)Width(m)Height(m)Galvanized or PVC coatedGalvanized or PVC coated
 Mesh diameterZincMesh diameterZinc
2112.7mm>245g/m²2.0mm>215g/m²
311Side wire diameterZincSide wire diameterZinc
4113.4mm>265g/²2.7mm>245g/m²
611Binding wire diameter of 2.7mBinding wire diameter of 2.0m



Weaving typeFeatureMaterial

Mesh size


Wire Gauge


Processing Service
Durable Three Normal TwistCorrosion ResistanceGalvanized Iron Wire

80x100 cm
100x120cm

2.7mm-3.5mmBending Cutting


Introduction to the use of gabion baskets:
The structure can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, rivers, Erosion protection of dams and seawalls, as well as cages for the closure of reservoirs and rivers.


●Control and guide rivers and floods
The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.
●Channel canal bed
The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.
●Slope protection
The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.
Gabion Cage Advantage :

Economic. Just fill the stone into the gabion and seal it.
Easy to install.
High zinc coating thus anti-rust and anti-corrosive.
Low cost and High security.
Good permeation can prevent the damage by hydrostatic pressure
Less transport freight. It can be folded together for transport and further installation.
Packing:
woven bags of the above and bottom,high quality package or as customers requested
In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet.
According to customers requirement.
Shipping:
Production time :15-20 days after received your payments
Transportation way : by sea or by air
Port: Tianjin XINGANG or as your choice
