Galfan Coated Gabion Basket Retaining Wall 8x10cm Mesh Hole Stone Cage

Basic Properties
Place of Origin: CN
Brand Name: SHUXIN
Certification: ISO 9001
Model Number: SX-GM01
Trading Properties
Minimum Order Quantity: 1000 square meters
Price: Negotiated
Standard Packaging: Folded then in Pallet
Delivery Time: 8 working days after getting the depoist
Payment Terms: L/C, D/A, D/P, T/T, Western Union, ,Paypal
Supply Ability: 1000 square meter per week
Product Summary
Galfan Coated Retaining Wall Gabion Baskets 8x10cm Mesh Hole Stone Cage Hex Gabion Wire Mesh Gabion Baskets Stone Boxes is Woven by Machine used Low carbon Steel Wire, which is High corrosion resistance, high strength,and ductile. This kind of Gabion Wire Mesh also can make into Cage called Gabion ...

Product Details

Highlight:

galfan coated gabion basket retaining wall

,

8x10cm gabion basket retaining wall

,

galfan coated gabion mesh basket

Material: Q195,Q235
Surface Treatment: Galfan Coated/hot Dip Galvanized /PVC
Application: Retaining Wall For Protection
Advantages: Easy Operation,Corrosion Resistance
Cage Size: 1*1*1M, 1*1*2M,1*1*3M
Mesh Hole: 7*9cm,6*8cm,8*10cm,10*12cm
Package: Wooden Pallets
Ceritification: CE ,ISO
Product Description

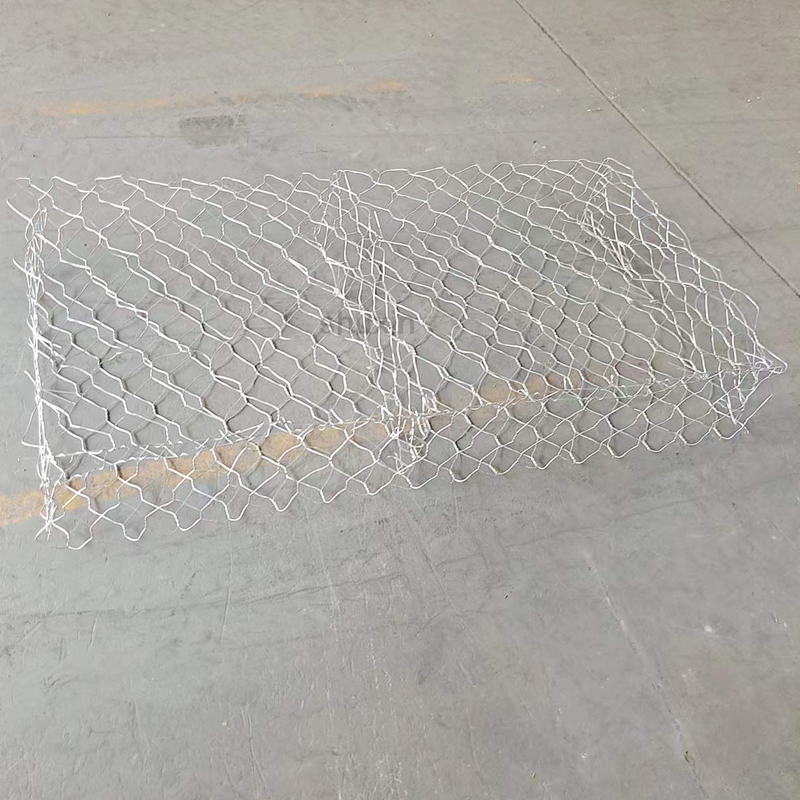

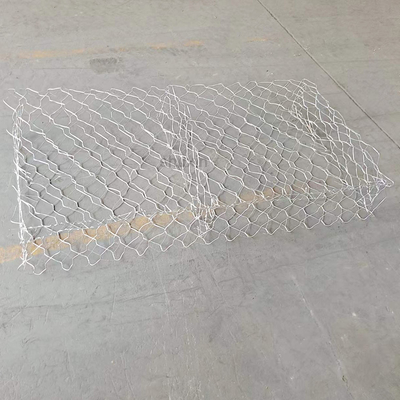

Galfan Coated Retaining Wall Gabion Baskets 8x10cm Mesh Hole Stone Cage



Hex Gabion Wire Mesh Gabion Baskets Stone Boxes is Woven by Machine used Low carbon Steel Wire, which is High corrosion resistance, high strength,and ductile. This kind of Gabion Wire Mesh also can make into Cage called Gabion Mesh Box Cage.According to ASTM and EN Standard, The Wire Diameter can be 2.0mm-4.0mm, The T/S not less than 38 kg/M2. The Zinc Coating is Higher than 245 g/M2. The Edge Wire Diameter is thicker than Wire Mesh Diameter, The Length of Twist part is not less than 50mm, to protect Zinc Coating or PVC Coating.





Gabion mesh/ gabion box material:

(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.

(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.

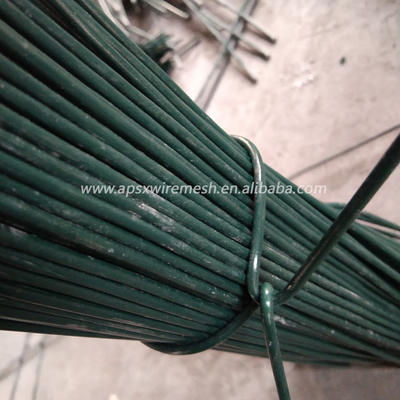

(3) coated galvanized steel wire: low carbon steel wire PVC coated.

(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm,

(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested

Specification Sheet of Hex Gabion Wire Mesh Gabion Baskets Stone Boxes :

Wire Diameter Mesh Hole Size of Box Cage
2.0mm-4.0mm 60 * 80 mm

2M * 1M * 1M
3M * 1M * 1M
4M * 1M * 1M
2M * 1M * 0.5M
4M * 1M * 0.5M

80 * 100 mm
80 * 120 mm
100 *120 mm
120 * 150mm
90 * 110 mm
Surface Treatment: Galvanized, Hot Dipped Galvanized,Galfan Coated, PVC Coated



Material galvanized wire, Zn-Al(Galfan) coated wire/ PVC coated wire
Application

can be widely used in flood controlling,retaining wall,river bank protection,

slope protection .

Hole shape Weave Hexagonal
Use life About 30 years ,
Processing Bending, Cutting
Package Wooden pallets



Advantages:

  • Economy, Just put the stone into the cage is okay to use.
  • It is simple to Operation, No need special skills.
  • Strong ability to resist the effects of natural damage, corrosion and weather.
  • It will not collapse with a wide range of deformation
  • It is good to Growing for Plant between the gap of Stone,together with the Environmental.
  • Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches
  • It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
  • Corrosion resistance: galvanized materials are not afraid of sea water.

Gabion basket application:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area

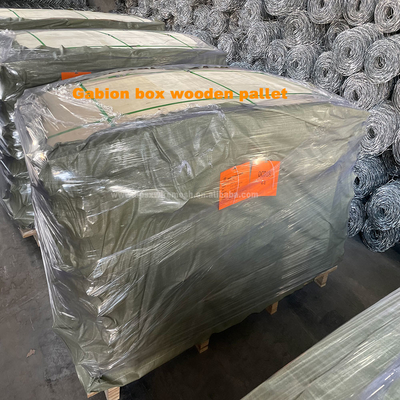

The packing:

woven bags of the above and bottom,high quality package or as customers requested In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet. according to customers requirement.

The Shipping:

Production time :15-20 days after received your payments Transportation way : by see or by air Port: XinGang TianJin or as your order



Galfan Coated Gabion Basket Retaining Wall 8x10cm Mesh Hole Stone Cage
