Product Details:
|
| Features: | High Corrosion Resistance, High Strength, Ductility | Product Name: | Gabion Stone Cage Gabion Basket Gabions Are Used To Slow The Velocity Of Concentrated Runoff |
|---|---|---|---|
| Surface Treatment: | Hot Dipped Galvanized + PVC Coated | Process: | Weave By Machine |
| Usage: | Used To Slow The Velocity Of Concentrated Runoff | Cage Size: | 1*1*1M, 1*1*2M,1*1*3M |
| High Light: | Woven Gabion Wire Mesh Box,Corrosion Resistance Gabion Stone Cage,Corrosion Resistance Gabion Basket |
||
Gabion Stone Cage Gabion Basket Gabions are used to slow the velocity of concentrated runoff
Gabion Basket is used to slow the velocity of concentrated runoff or to stabilize slopes with seepage problems and/or non-cohesive soils.
Quick View of Gabion Basket, Stone Cage Gabion :
| Product Name | Woven Gabion Wire Mesh Box |
| surface treatment | Hot Dipped Galvanized + PVC Coated |
| Process | Weave By Machine |
| Usage | used to slow the velocity of concentrated runoff |
| Features | High Corrosion Resistance, High Strength, Ductility |
| Tensile Strength | 38kg/m2 |
Gabion Cage Material :
1. hot-dip galvanized low carbon steel wire,
2. Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion.
3. PVC coated , PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
4. Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
5. zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
Specification Sheet of Gabion Basket, Stone Cage Gabion :
| Wire Diameter | Mesh Hole | Size of Box Cage |
| 2.0mm-4.0mm | 60 * 80 mm |
2M * 1M * 1M 3M * 1M * 1M 4M * 1M * 1M 2M * 1M * 0.5M 4M * 1M * 0.5M |
| 80 * 100 mm | ||
| 100 * 120 mm | ||
| 110 *130 mm | ||
| 120 * 150mm | ||
| 90 * 110 mm | ||
| Surface Treatment: Galvanized, Hot Dipped Galvanized,Galfan Coated, PVC Coated | ||
Application:

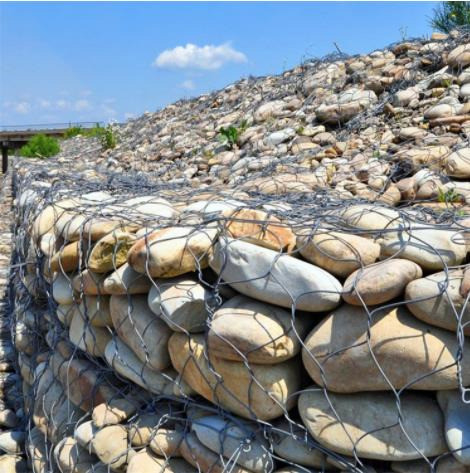

Mainly used for river, bank slope, road slope slope protection structure. It can not only prevent riverbank from making water flow and storm and wave, but also achieve the natural convection and exchange function between water bodies and the soil beneath the slope to achieve ecological balance. Slope vegetation can increase the landscape, greening effect.
