Rock Mesh Retaining Wall Gabion Basket To Stabilize Slopes With Seepage Problems
Product Details

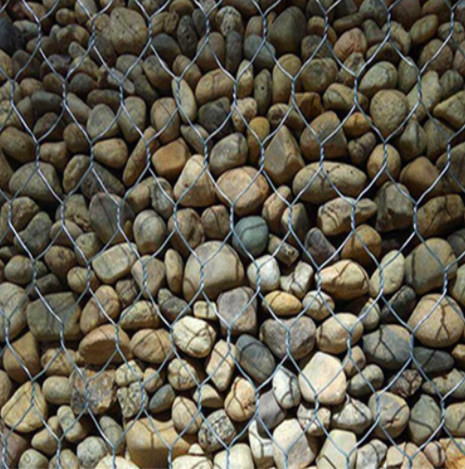

Rock Mesh Retaining Wall Gabion Basket
,Anti Corrosion Retaining Wall Gabion Basket
,Hexagonal Hole Gabion Basket
Rock Mesh Retaining Wall Gabion Basket to stabilize slopes with seepage problems and/or non-cohesive soils
Rock Mesh Retaining Wall Gabion Basket Description :Filled with stones, gabions become large, flexible and permeable elements from which a broad range of structures may be built. Gabions are widely used in many fields , such as flood controling , retaining wall , river bank protection etc used to stabilize slopes with seepage problems and/or non-cohesive soils
| Product Name | Woven Gabion Wire Mesh Box |
| Material | Q195 Low Carbon Steel Wire |
| Aperture | 80*100mm |
| Usage | stabilize slopes with seepage problems and/or non-cohesive soils |
| Features | High Corrosion Resistance, High Strength, Ductility |
| Mesh Shape | hexagonal hole |
Application:
Mainly used for river, bank slope, road slope slope protection structure. It can not only prevent riverbank from making water flow and storm and wave, but also achieve the natural convection and exchange function between water bodies and the soil beneath the slope to achieve ecological balance. Slope vegetation can increase the landscape, greening effect.
| Characteristics | Metallic coated | PVC coated | Metallic coated | PVC coated |
| Mesh type | 8x10cm | 6*8cm | ||
| Mesh openings |
83mm x 114mm 8 x 10 |
83mm x 114mm 8 x 10 |
64mm x 83mm 6x8 |
64mm x 83mm 6x8 |
| Mesh wire | 2.7mm (0.106 in.) | 3.05mm( 0.120 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) |
| Selvage wire | 3.4mm (0.134 in.) | 3.8mm (0.150 in.) | 2.7mm (0.105 in.) | 2.7mm (0.105 in.) |
| Lacing wire | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) |
2.2mm(0.087 in.) |
Gabion Cage Material :
1. hot-dip galvanized low carbon steel wire,
2. Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion.
3. PVC coated , PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
4. Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
5. zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
