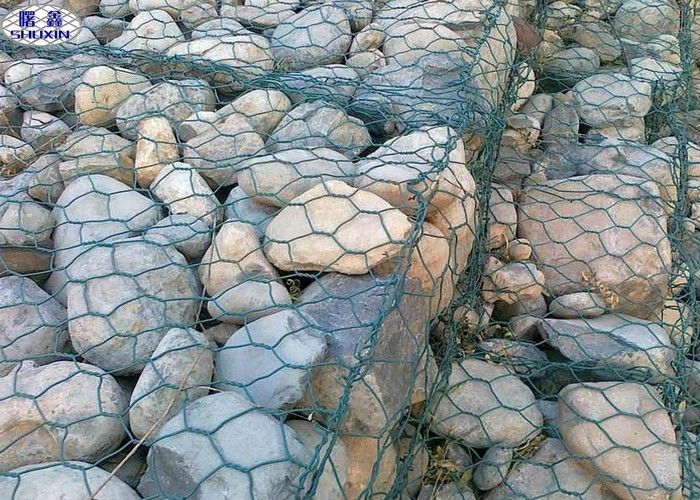

2 X 1 X 1 Stone Gabion Basket PVC Coated Anti Scour Ability

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO 9001 COC
Model Number: GABION
Trading Properties
Minimum Order Quantity: 100 pc
Price: Negotiated
Standard Packaging: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500 pc per day
Product Summary
2 X 1 X 1 Stone Gabion Basket PVC Coated Feature Anti - Scour Ability Gabion Basket How long do gabion basket walls last? Gabions are designed to be used in permanent structures but their longevity is directly related to the environment they are installed in. This means life expectancy of gabion ...

Product Details

Highlight:

2 X 1 X 1 Stone Gabion Basket

,

Anti Scour Stone Gabion Basket

,

PVC Coated Stone Gabion Basket

Wire Gauge: 2.0mm-4.0mm
Zinc: >245g/m²
Lacing Wire: 2.2mm
Surface Treatment: Pvc Coated Or Galvanized
Mesh Shape: Hexagonal Hole
Feature: Anti-corrosion
Product Description

                         2 X 1 X 1 Stone Gabion Basket PVC Coated Feature Anti - Scour Ability


Gabion Basket

How long do gabion basket walls last?

Gabions are designed to be used in permanent structures but their longevity is directly related to the environment they are installed in. This means life expectancy of gabion walls can be anywhere from 10 to 75 years depending on the install environment.



gabion specifications Mesh hole modle
  8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
  Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m



Product NameWoven Gabion Wire Mesh Box Material Q195 Low Carbon Steel WireProcessWeave By MachineUsageSlope Support, Foundation Pit SupportFeaturesHigh Corrosion Resistance, High Strength, DuctilityTensile Strength38kg/m2

Gabion Cage Applications :


• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road



2 X 1 X 1 Stone Gabion Basket PVC Coated Anti Scour Ability
