River Protection Galvanized Wire Gabion Cage 27mm

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: ISO,CE,SGS,
Model Number: SX-gabion basket-2
Trading Properties
Minimum Order Quantity: 1300PCS
Price: USD: 3-7/PCS
Standard Packaging: Bundle and Container
Delivery Time: 6-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 10001 PCS Per Week
Product Summary
Galvanized 27mm Gabion Basket River Protection Gabion Cage Prices china gabion supplier 3.0mm 2x1x1m 8*10cm hexagonal stone gabion mesh/3x1x0.5m gabion baskets The gabion net structure belongs to a flexible structure. The gabion cage is filled with stones or other materials and has certain gaps. ...

Product Details

Highlight:

Galvanized Gabion Basket 27mm

,

Galvanized Wire Gabion Cage

,

27mm Gabion Cage

Name: Gabion Box
Material: Galvanized Wire, PVC Wire, Galfan Wire
Weave: Double Twist
Mesh Wire: 2.5/2.9/3.0/3.3mm
Selvage Wire: 3.6mm
Biding Wire: 2.2mm
Mesh Hole: 60*80mm, 80*100mm, 100mm*120mm
Gabion Size: 6*2*0.3m, 2*1*1m, 3*1*1m, 4*1*1m
Warranty: ≥ 7 Years
Application: Gabions Retaining Wall, Bank Protection
Product Description

Galvanized 27mm Gabion Basket River Protection Gabion Cage Prices



china gabion supplier 3.0mm 2x1x1m 8*10cm hexagonal stone gabion mesh/3x1x0.5m gabion baskets

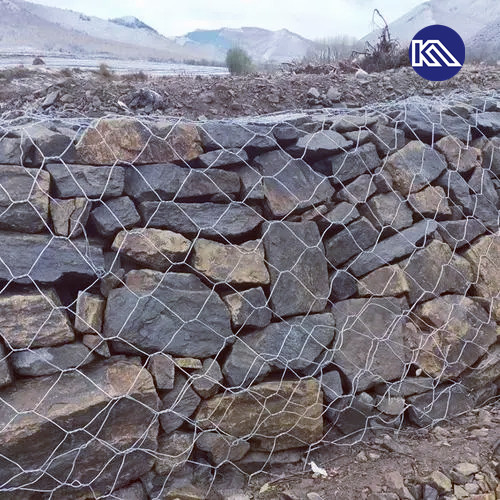

The gabion net structure belongs to a flexible structure. The gabion cage is filled with stones or other materials and has certain gaps. When the waves of the river hit the gabion net, the gap inside will destroy the vacuum suction of the waves and reduce the damage of the waves to the protection project. In addition, the operator can also fine tune the whole gabion cage structure to avoid cracks in the wall.

River Protection Galvanized Wire Gabion Cage 27mm

Mesh Hole
PVC Coated Wire (Inner/Outside
Hot Dipped Galvanized Wire
Galfan Coated Wire
60*80mm
2.0mm/3.0mm-2.8mm/3.8mm
2.2mm-3.8mm
2.2mm-3.8mm
80*100mm
2.2mm/3.2mm-3.0mm/4.0mm
3.2mm-4.0mm
3.2mm-4.0mm
100*120mm
2.4mm/3.4mm-3.2mm/4.2mm
3.4mm-4.2mm
3.4mm-4.2mm
120*150mm
2.7mm/3.7mm-3.5mm/4.5mm
3.7mm-4.5mm
3.7mm-4.5mm
Length (M)
Width (M)
Height (M)
Diaphragm Quantity
1
1
1
0
2
1
1
1
3
1
1
2
4
1
1
3
6
1
1
5
2
1
0.5
1
3
1
0.5
2
3
2
0.3
5

River Protection Galvanized Wire Gabion Cage 27mm

It can be produced according to the design requirements of the drawings. Generally, the machine is up to 4m wide and any length. However, the conventional size of Renault pad in China is 6*2*0.3m, mesh: 6*8cm, wire diameter: 2.0mm. Materials: galvanized, galvanized PVC (PVC color is usually gray or green), Galfan commonly known as 5% or 10% zinc aluminum alloy, zinc aluminum alloy coated PVC. Zinc aluminum alloy material is the best quality of these products, and its service life is 70~80 years! The cage size is generally 2*1*1m 4*1*1m 1*1*1m, and the mesh pad size is generally 6*2*0.3m 6*2*0.17m 4*2*0.35m.

River Protection Galvanized Wire Gabion Cage 27mm

Gabion pad material:
(1) Galvanized steel wire: high-quality low-carbon steel wire, with a diameter of 2.0mm-4.0mm, and a tensile strength of not less than 380MPa. The surface of the steel wire is protected by hot galvanizing. The thickness of the galvanized protective layer is made according to the customer's requirements, and the maximum amount of galvanizing can reach 300g/m2.
(2) Zinc-5% aluminum mixed rare earth alloy steel wire: (also known as golfan) steel wire, which is a new material in the world in recent years, has corrosion resistance more than three times that of traditional pure galvanizing. The diameter of the steel wire can reach 2.0mm-4.0mm, and the tensile strength of the steel wire is not less than 380MPa.
(3) Galvanized steel wire wrapped with plastic: high-quality low-carbon steel wire is wrapped with a layer of PVC or PE protective layer on the surface of the steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.
(4) Zinc-5% aluminum mixed rare earth alloy steel wire wrapped with plastic: a layer of PVC or PE protective layer is wrapped on the surface of Zinc-5% aluminum mixed rare earth alloy steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.

River Protection Galvanized Wire Gabion Cage 27mmRiver Protection Galvanized Wire Gabion Cage 27mm
