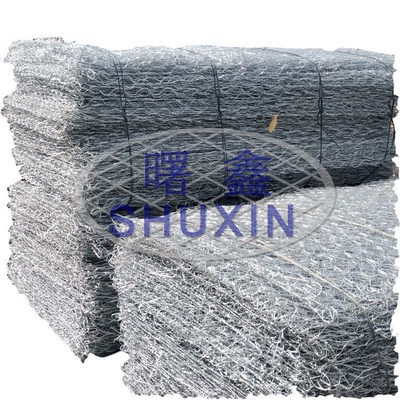

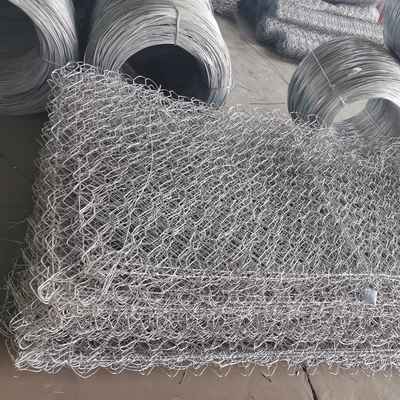

Hexagonal Hot Galvanized Three Twisted Gabion Basket For River Protection Project

Hexagonal Hot Galvanized Three- Twisted Gabion Basket Box For River Protection Project


Gabion is PVC coatings on zinc-coated metal wire fabric containers with variable sizes that fill rocks to form permanent structures. Green gabion mattress (Fibromat is also called gabion mattress system) is a great soil stabilization system, which can be used for slope erosion control, toe and river bank protection, to maximize the permeability of the structure, while providing reinforcement and grassland construction.

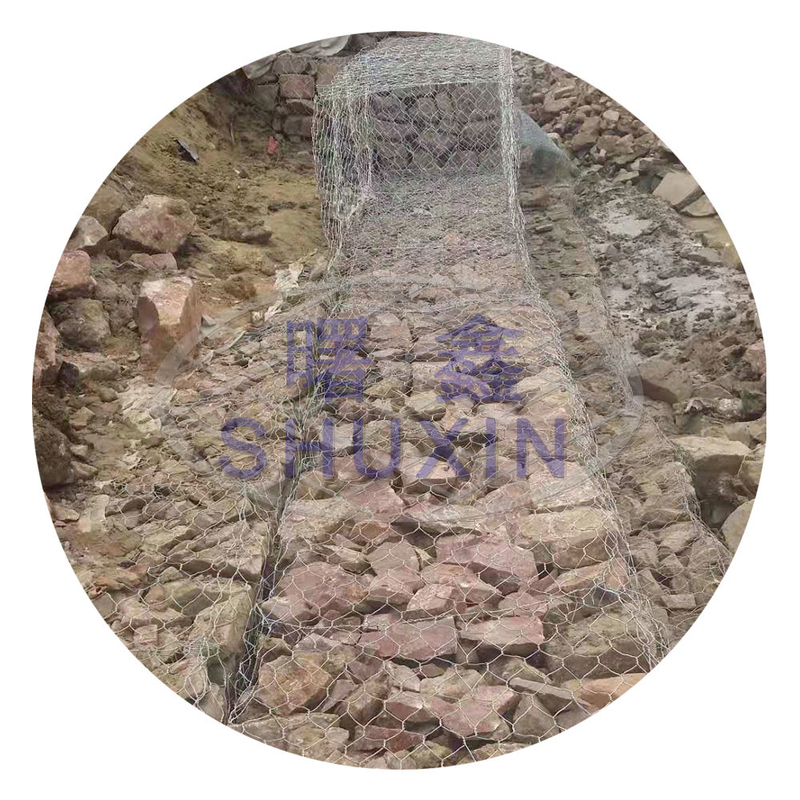

When your gabion walls are being used as erosion control, a civil engineer experienced in flood control and erosion prevention, should be consulted. Gabions are a proven method of halting river bank erosion, for both large rivers and small streams that are prone to flooding. Any river erosion system needs to be designed to cope with the expected peak river flood volumes, as this is when most damage to river banks and their erosion protection measures occurs. Flood events are often described as 1 in 100yr floods or 1 in 50yrs floods, and any river bank protection system needs to be able to cope with these flood events.



Gabion Basket Application:
Gabion are used as retaining walls to provide various prevention and protection projects, such as landslide prevention, erosion and erosion protection, as well as hydraulic and coastal protection for various types of rivers, seas and river courses. This gabion mattress system is made of a specially designed composite material, which maximizes its performance through a three-stage vegetation process from non-vegetation to vegetation establishment to vegetation maturation.

Gabion Box Bank Retaining Wall are strong and reliable offering engineers many benefits for managing earth and water. Typically gabion baskets are preferred on large scale civil, mining, industrial, road and rail projects.

Gabion Basket Retaining Wall Design can be widely used for erosion protection, roadway and bridge protection, gravity retaining wall, slope paving ,control and guide of water or flood and riverbank controlling.

Gabion Characteristics:
(1) Economic. Just fill the stone into the gabion and seal it.
(2) Simple installation. No special technology needed.
(3) Weather proof under natural destroy, corrosion resistant.
(4) No collapse even under big scope of deforming.
(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
(6) Good permeation can prevent the damage by hydrostatics.
(7) Less transport freight. It can be folded together for transport and further installation.

Gabion Basket Installation Process:
1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
