2 X 1 X 1 Flexibility Stone Filled Wire Cages PVC Coated Gabion Box Rust Resistance

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: GABION
Trading Properties
Minimum Order Quantity: 10 pc
Price: Negotiated
Standard Packaging: pallet
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500 pc per day
Product Summary
2 X 1 X 1 Stone Filled Wire Cages Gabion Basket PVC Coated In Kenya gabion basket Advantage: Flexibility: Flexibility is an important benefit of any gabion structure. Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones, adding to their durability. ...

Product Details

Highlight:

PVC Coated Gabion Box Rust Resistance

,

Stone Filled Wire Cages Rust Resistance

,

Flexibility Stone Filled Wire Cages

Wire Gauge: 2.0mm-4.0mm
Aperture: 80*100mm
Lacing Wire: 2.2mm
Surface Treatment: Pvc Coated Or Galvanized
Mesh Shape: Hexagonal Hole
Feature: Anti-corrosion
Product Description

                      2 X 1 X 1 Stone Filled Wire Cages Gabion Basket PVC Coated In Kenya



gabion basket Advantage:


Flexibility: Flexibility is an important benefit of any gabion structure.
Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones, adding to their durability.
Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses
Permeability: Gabion walls are previous to water and stabilize slopes by the combined action of draining and retaining

Low cost: Gabion systems are more economical than rigid or semi-rigid structures
Ecology: Gabions is an environmentally sensitive solution to slope stabilization.

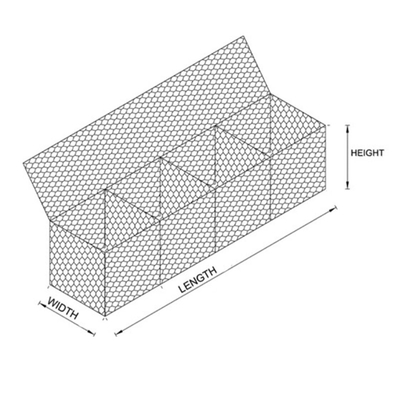

gabion specifications Mesh hole modle
  8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
  Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m

2 X 1 X 1 Flexibility  Stone Filled Wire Cages PVC Coated Gabion Box Rust Resistance




gabion basket Material :



1. hot-dip galvanized low carbon steel wire,
2. Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion.
3. PVC coated , PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
4. Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
5. zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2

gabion basket Applications :


• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road






Our Markets :


By now we have already established business relations with 45 customers from Southeast Asia, Asia, Europe, Middle East, Africa,
and quadruple the sales amount and customers annually. We almost have customers all over the world.



2 X 1 X 1 Flexibility  Stone Filled Wire Cages PVC Coated Gabion Box Rust Resistance
