Product Details:
|
| Type: | HDG Galvanized | Wire Diameter: | 2.7, 3.0, 3.4mm |
|---|---|---|---|
| Hole Size: | 6x8cm, 8*10cm ,10x12cm | Surface Treatment: | PVC Coated, Hot Dipped Galvanized |
| Color: | Silver,gray,green,black | Application: | Construction Wire Mesh,Cages,Protecting Mesh |
| Package: | Wooden Pallet | Certification: | CE,ISO |
| High Light: | Double Twisted Gabion Baskets,Double Twisted Stone Filled Cages,Gabion Baskets Preventing Rock Breaking |
||

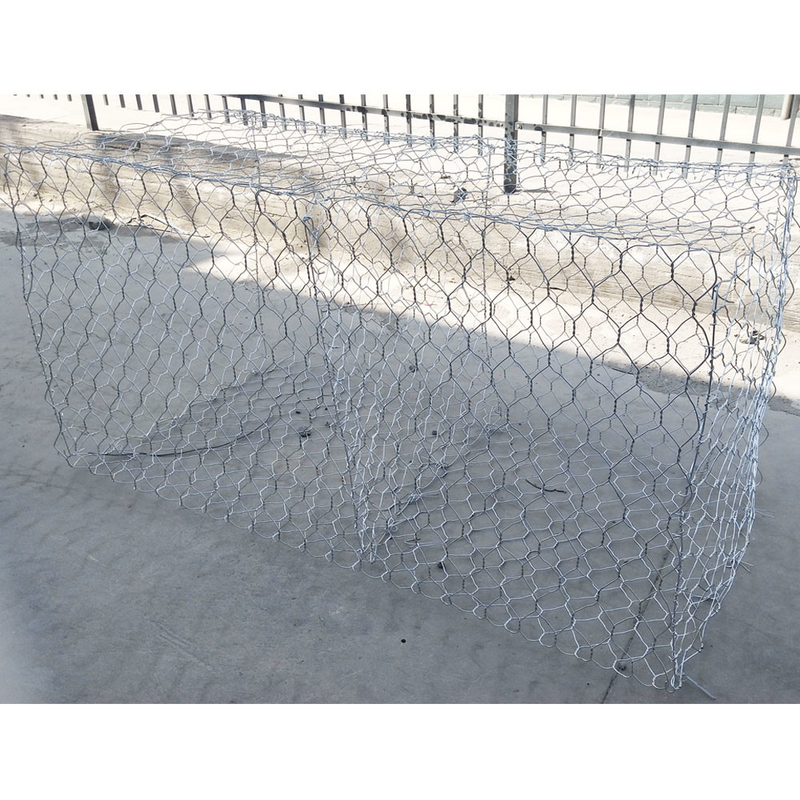

Hexagon Galvanized Double Twisted 8x10cm Gabion Baskets Stone Filled Cages Preventing Rock Breaking
Product Description
Gabion Mattresses serves as a retaining wall, providing various prevention and protection works such as landslide prevention, erosion and scour protection as well as various type of hydraulic and coastal protection for river, sea and channel protection. This Gabion Mattress System is made up of a specially designed composite in order to maximize its performance through three phases of vegetative process from vegetated to vegetation establishment up to vegetation maturation.
Specification
Gabion Specification :
Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire
Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.
Gabion size : 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.
Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized
Gabion application: can be widely used in flood controlling,retaining wall,river bank protection,slope protection
| Gabion basket | |
| Mesh wire | 2.0mm-4.0mm |
| Mesh size | 60*80mm, 80*100mm, 90*110mm, 100*120mm, 120*150mm |
| Selvedge wire | thicker 0.5mm-1.0mm than mesh wire |
| Tie wire | 2.2mm, 2.5mm |
| Gabion size | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m |
| Surface treatment | high zinc coated, HD galvanized, PVC coated |
| Material | galvanized wire, Zn-Al(Galfan) coated wire/ PVC coated wire |
| Application |
can be widely used in flood controlling,retaining wall,river bank protection, slope protection . |
| Hole shape | Hexagonal |
| Use life | About 30 years , |
| Processing | Bending, Cutting |
Advantages
(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;
(2) the construction is simple and does not need special technology;
(3) Strong ability to resist natural damage, corrosion and adverse weather effects;
(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.
(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;
(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.
Gabion mesh/ gabion box material:
(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.
(3) coated galvanized steel wire: low carbon steel wire PVC coated.
(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm,
(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested.
石笼篮的优势:
Packing and Loading
After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
