ISO Heavy Duty Pvc Coated Gabion Box 10x12cm Gabion Wire Mesh Baskets

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE, SGS
Model Number: SX-1
Trading Properties
Minimum Order Quantity: 1000 square meter
Standard Packaging: Packing with tape
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 square meter per month
Product Summary
Hexagonal Pvc Coated Heavy Duty 10x12cm Gabion Baskets Wire Mesh For Retaining​ Gabion Basket Product Description Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5...

Product Details

Highlight:

Pvc Coated Gabion Box 10x12cm

,

10x12cm Gabion Wire Mesh Baskets

,

ISO Pvc Coated Gabion Box

Name: Gabion Basket
Wire Diameter: 2.7, 3.0, 3.4mm
Hole Size: 6x8cm, 8*10cm ,10x12cm
Surface Treatment: PVC Coated, Hot Dipped Galvanized
Color: Silver,gray,green
Application: Construction Wire Mesh,Cages,Protecting Mesh
Certification: CE,ISO ,SGS
Gabion Size: 2*1*1m,1*1*1m 3*1*1m
Product Description

Hexagonal Pvc Coated Heavy Duty 10x12cm Gabion Baskets Wire Mesh For Retaining​



Gabion Basket Product Description

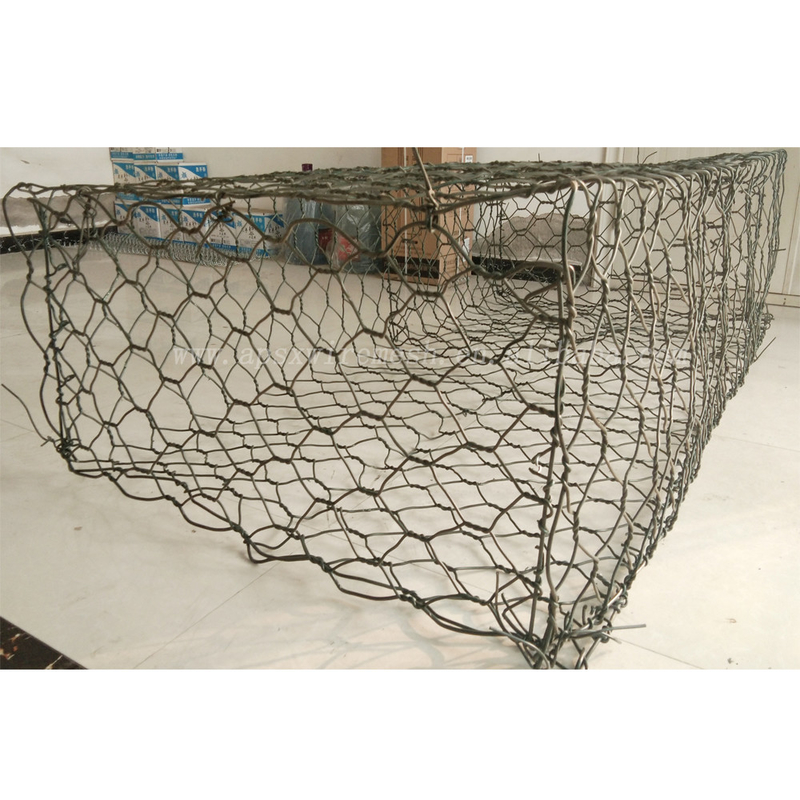

Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.



Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.



Specification

Material galvanized wire, Zn-Al(Galfan) coated wire/ PVC coated wire
Application

can be widely used in flood controlling,retaining wall,river bank protection,

slope protection .

Hole shape Hexagonal



Gabion box

(mesh size):

80*100mm

100*120mm

Mesh Wire diameter 2.7mm zinc coating:60g,245g, ≥270g/m2
Edge wire diameter 3.4mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g,≥220g/m2

Gabion mattress

(mesh size):

60*80mm

Mesh wire diameter. 2.2mm zinc coating:60g, ≥220g/m2
Edge wire diameter. 2.7mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g, ≥220g/m2



special sizes Gabion

are available



Mesh wire diameter 2.0~4.0mm

superior quality,competitive price and

considerate service

Edge wire diameter 2.7~4.0mm
Tie wire diameter 2.0~2.2mm





Advantages

(1) Economy. Just put the stone into the cage and seal it.

(2) The construction is simple and does not need special technology.

(3) Strong ability to resist natural damage, corrosion and adverse weather effects.

(4) Can withstand large-scale deformation without collapsing.

(5) Silt between the cage stones is beneficial to plant production and can be fused with the surrounding natural environment.

(6) It has good permeability and can prevent damage caused by hydrostatic force. It is conducive to the stability of mountain slopes and beaches.

(7) Save transportation costs. It can be folded up for transportation and assembled on the construction site.

(8) Good flexibility: no structural joints, and the overall structure has ductility.

(9) Corrosion resistance: Galvanized materials are not afraid of seawater.

Our Company

Anping Shuxin Wire Mesh Manufactory Co., Ltd, was established in 2013, is a professional manufacturer.



In recent years, our company has introduced a series of advanced equipment including welded wire mesh machine,Cutting Machine,Bending machine,air pump,Punching machine. We have strong technical strength,scientific management and complete inspection means to guarantee iron wire products of high grade .We will with the most preferential price,best quality in the face of the customer.

ISO Heavy Duty Pvc Coated Gabion Box 10x12cm Gabion Wire Mesh Baskets

Packing and Loading

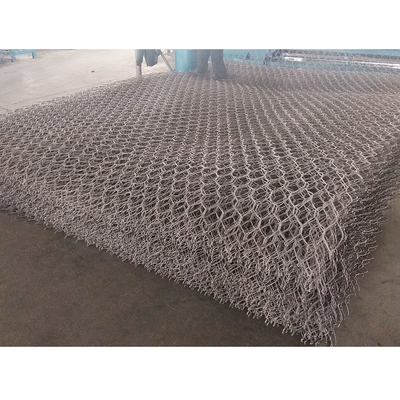

After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.

1*20 GP :1000 PCS (2*1*1M)

1*40 HQ:1600 PCS (2*1*1M)
