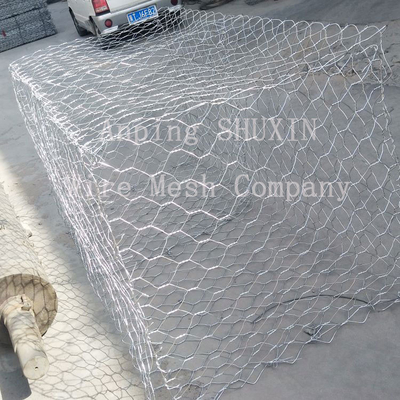

Gabion Wall Retaining Wall 4x1x1 M Hexagonal Galvanized Gabion Basket 1x1x1M
Product Description:
Gabion is PVC coatings on zinc-coated metal wire fabric containers with variable sizes that fill rocks to form permanent structures. Green gabion mattress (Fibromat is also called gabion mattress system) is a great soil stabilization system, which can be used for slope erosion control, toe and river bank protection, to maximize the permeability of the structure, while providing reinforcement and grassland construction.
Bridge protection
Gabions offer excellent protection as soil stabilizers around bridges, bridge piers and abutment slopes. Generally, the degree of the slope to be protected shall determine what structure type is best suited for a specific application. Slopes with an angle of 1:1 or steeper usually require standard gabion retaining wall protection. Slopes with an angle of 1:1.5 or less may use a combination of gabion baskets and/or mattresses for slope protection.

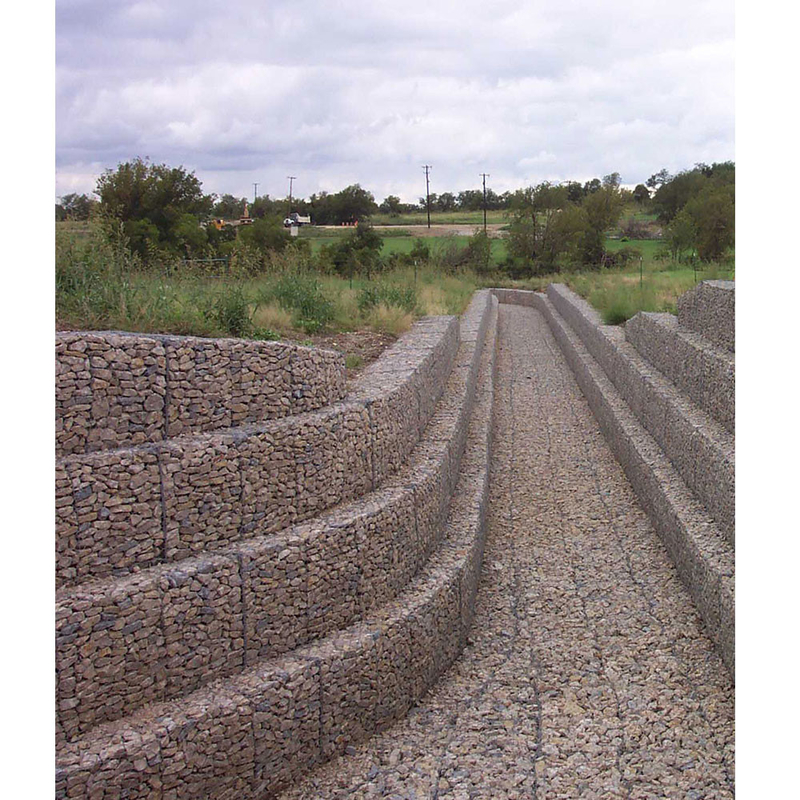

Gabion mattresses used in channel for erosion protection
The cracks between the rocks used to pack gabions are frequently filled with soil to encourage plant growth, which makes gabion retaining walls ideal for projects where beauty is a must, such as controlling soil erosion along waterways that run through residential areas that need to be both long lasting and visually pleasing.
| Material |
Galvanized low carbon steel wire |
| Weave Type |
Three-twist weave |
| Wire diameter |
Mesh wire:2.0mm-4.0mm |
| Selvedge wire:3.4mm, 3.8mm |
| Lacing wire:2.2mm |
| Mesh size |
60*80mm, 80*100mm, 100*120mm |
| Hole Shape |
Hexagonal |
| Gabion size |
1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, |
| Surface treatment |
HD galvanized, PVC coated |
| Color |
Green,Sliver |
| Characteristics |
Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported. |
| Usage |
Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.river gabion protection project |
| Packaging |
Packed in bundles or pallets or according to customer's requirements. |
Gabion basket, also known as gabion box and gabion net, is a new type of ecological grid structure. It has been successfully applied to water conservancy projects, highways, railway projects and dike protection projects, and has well realized the organic combination of engineering structure and ecological environment. At the same time, compared with the traditional rigid structure, it has its own advantages and has become the preferred structural form for riverbed, landslide, debris flow, rockfall protection and environmental protection worldwide.
Gabion mattresses are used as retaining walls to provide various prevention and protection projects, such as landslide prevention, erosion and erosion protection, as well as hydraulic and coastal protection for various types of rivers, seas and river courses. This gabion mattress system is made of a specially designed composite material, which maximizes its performance through a three-stage vegetation process from non-vegetation to vegetation establishment to vegetation maturation.
Retaining Gabion Advantages:
1). Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2). Anti-erosion ability, able to withstand the maximum flow rate of up to 6m / s .
3). This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.
