Product Details:
|
| Name: | Gabion Box | Material: | Galvanized Wire, PVC Wire, Galfan Wire |
|---|---|---|---|
| Weave: | Double Twist | Mesh Wire: | 2.5/2.9/3.0/3.3mm |
| Selvage Wire: | 3.6mm | Biding Wire: | 2.2mm |
| Mesh Hole: | 60*80mm, 80*100mm, 100mm*120mm | Gabion Size: | 6*2*0.3m, 2*1*1m, 3*1*1m, 4*1*1m |

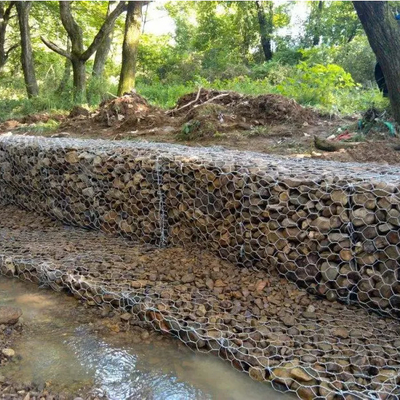

| Warranty: | ≥ 7 Years | Application: | Gabions Retaining Wall, Bank Protection |
| High Light: | Gabion Wire Mesh Box 80X100Mm,Flood Control Project Gabion Rock Basket,1M Gabion Wire Mesh Box |
||
The gabions are made of high corrosion resistant, high strength, ductile low carbon steel wire or PVC coated steel wire woven together using machinery. The diameter of the low carbon steel wire used varies according to ASTM and EN standards, depending on the design requirements. The tensile strength of the wire is not less than 38kg/m2 and the metal coating weight is generally higher than 245g/m2. The length of the twisted part of the double wire must not be less than 50 mm to ensure that the metal plating and PVC plating of the twisted part of the wire are not damaged.
It can be produced according to the design requirements of the drawings. Generally, the machine is up to 4m wide and any length. However, the conventional size of Renault pad in China is 6*2*0.3m, mesh: 6*8cm, wire diameter: 2.0mm. Materials: galvanized, galvanized PVC (PVC color is usually gray or green), Galfan commonly known as 5% or 10% zinc aluminum alloy, zinc aluminum alloy coated PVC. Zinc aluminum alloy material is the best quality of these products, and its service life is 70~80 years! The cage size is generally 2*1*1m 4*1*1m 1*1*1m, and the mesh pad size is generally 6*2*0.3m 6*2*0.17m 4*2*0.35m.
Gabion pad material:
(1) Galvanized steel wire: high-quality low-carbon steel wire, with a diameter of 2.0mm-4.0mm, and a tensile strength of not less than 380MPa. The surface of the steel wire is protected by hot galvanizing. The thickness of the galvanized protective layer is made according to the customer's requirements, and the maximum amount of galvanizing can reach 300g/m2.
(2) Zinc-5% aluminum mixed rare earth alloy steel wire: (also known as golfan) steel wire, which is a new material in the world in recent years, has corrosion resistance more than three times that of traditional pure galvanizing. The diameter of the steel wire can reach 2.0mm-4.0mm, and the tensile strength of the steel wire is not less than 380MPa.
(3) Galvanized steel wire wrapped with plastic: high-quality low-carbon steel wire is wrapped with a layer of PVC or PE protective layer on the surface of the steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.
(4) Zinc-5% aluminum mixed rare earth alloy steel wire wrapped with plastic: a layer of PVC or PE protective layer is wrapped on the surface of Zinc-5% aluminum mixed rare earth alloy steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.
