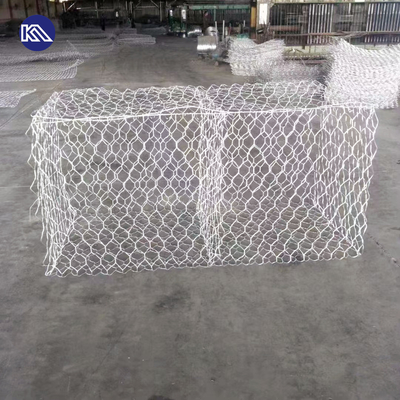

60*80mm Gabion Baskets Galvanized Zinc Coated Hexagonal Gabion Wire Mesh

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: ISO,CE,SGS,COC
Model Number: SX-gabion basket-01
Trading Properties
Minimum Order Quantity: 1000PCS
Price: USD: 7-12/PCS

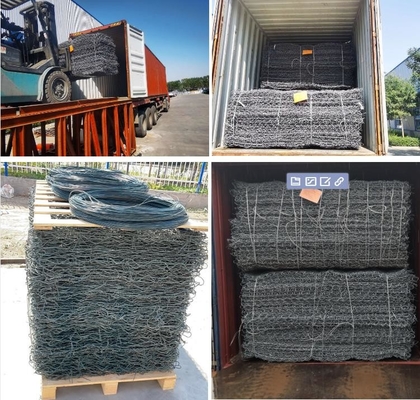

Standard Packaging: Bundle and Container
Delivery Time: 6-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 10000 PCS Per Week
Product Summary
China Best Supplier High Quality Gabion Baskets Galvanized Wire Zinc Coated Hexagonal Gabion Wire Mesh The gabion net is made of low carbon steel wire with high corrosion resistance, high strength and ductility or steel wire coated with PVC and woven mechanically. The box structure made of this net ...

Product Details

Highlight:

60*80mm Gabion Baskets

,

60*80mm Gabion Wire Mesh

,

Gabion Baskets Galvanized Zinc Coated

Name: Gabion Basket
Material: Galvanized Wire, PVC Wire, Galfan Wire
Weave: Double Twist
Mesh Wire: 2.5/2.8/3.0mm
Selvage Wire: 3.4mm
Biding Wire: 2.2mm
Mesh Hole: 60*80mm, 80*100mm, 100mm*120mm
Gabion Size: 6*2*0.3m, 2*1*1m, 3*1*1m, 4*1*1m
Warranty: ≥ 2.5 Years

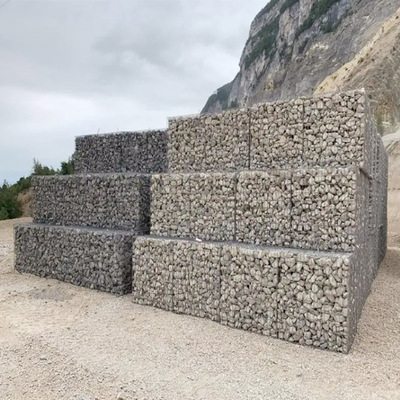

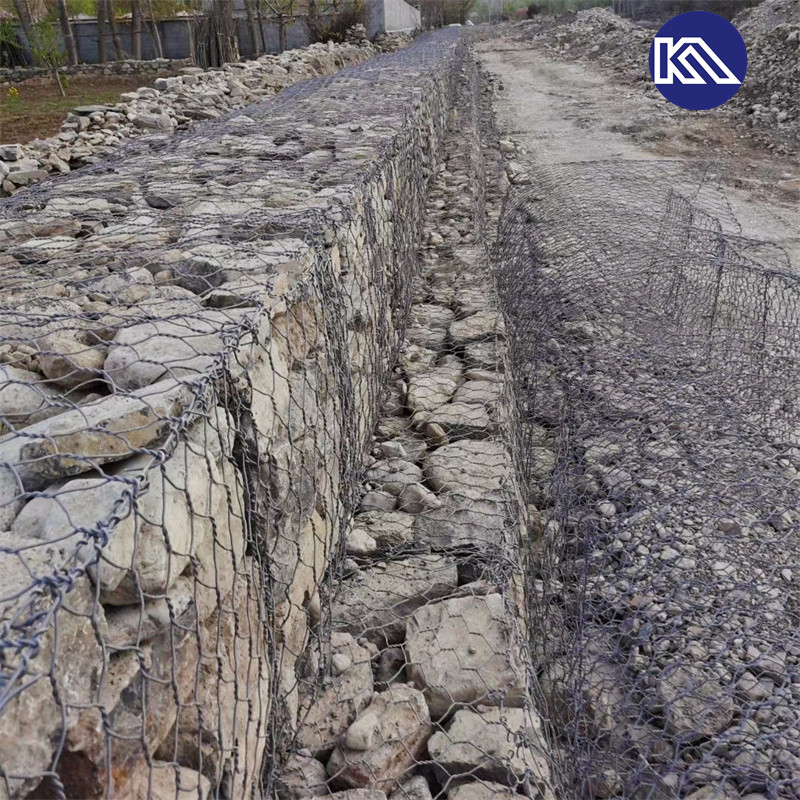

Application: Gabions Retaining Wall, Bank Protection
Product Description

China Best Supplier High Quality Gabion Baskets Galvanized Wire Zinc Coated Hexagonal Gabion Wire Mesh

The gabion net is made of low carbon steel wire with high corrosion resistance, high strength and ductility or steel wire coated with PVC and woven mechanically. The box structure made of this net is gabion net box. According to ASTM and EN standards, the diameter of low-carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of gabion mesh steel wire is not less than 38kg/m2, the weight of metal coating is generally higher than 245g/m2, and the diameter of edge line of gabion mesh is generally larger than the diameter of mesh wire. The length of the stranded part of the double wire shall not be less than 50 mm to ensure that the metal coating and PVC coating of the stranded wire are not damaged.



Mesh Hole
PVC Coated Wire (Inner/Outside
Hot Dipped Galvanized Wire
Galfan Coated Wire
60*80mm
2.0mm/3.0mm-2.8mm/3.8mm
2.2mm-3.8mm
2.2mm-3.8mm
80*100mm
2.2mm/3.2mm-3.0mm/4.0mm
3.2mm-4.0mm
3.2mm-4.0mm
100*120mm
2.4mm/3.4mm-3.2mm/4.2mm
3.4mm-4.2mm
3.4mm-4.2mm
120*150mm
2.7mm/3.7mm-3.5mm/4.5mm
3.7mm-4.5mm
3.7mm-4.5mm

60*80mm Gabion Baskets Galvanized Zinc Coated Hexagonal Gabion Wire Mesh

It can be produced according to the design requirements of the drawings. Generally, the machine is up to 4m wide and any length. However, the conventional size of Renault pad in China is 6*2*0.3m, mesh: 6*8cm, wire diameter: 2.0mm. Materials: galvanized, galvanized PVC (PVC color is usually gray or green), Galfan commonly known as 5% or 10% zinc aluminum alloy, zinc aluminum alloy coated PVC. Zinc aluminum alloy material is the best quality of these products, and its service life is 70~80 years! The cage size is generally 2*1*1m 4*1*1m 1*1*1m, and the mesh pad size is generally 6*2*0.3m 6*2*0.17m 4*2*0.35m.

60*80mm Gabion Baskets Galvanized Zinc Coated Hexagonal Gabion Wire Mesh

Gabion pad material:
(1) Galvanized steel wire: high-quality low-carbon steel wire, with a diameter of 2.0mm-4.0mm, and a tensile strength of not less than 380MPa. The surface of the steel wire is protected by hot galvanizing. The thickness of the galvanized protective layer is made according to the customer's requirements, and the maximum amount of galvanizing can reach 300g/m2.
(2) Zinc-5% aluminum mixed rare earth alloy steel wire: (also known as golfan) steel wire, which is a new material in the world in recent years, has corrosion resistance more than three times that of traditional pure galvanizing. The diameter of the steel wire can reach 2.0mm-4.0mm, and the tensile strength of the steel wire is not less than 380MPa.
(3) Galvanized steel wire wrapped with plastic: high-quality low-carbon steel wire is wrapped with a layer of PVC or PE protective layer on the surface of the steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.
(4) Zinc-5% aluminum mixed rare earth alloy steel wire wrapped with plastic: a layer of PVC or PE protective layer is wrapped on the surface of Zinc-5% aluminum mixed rare earth alloy steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.

60*80mm Gabion Baskets Galvanized Zinc Coated Hexagonal Gabion Wire Mesh
