ISO COC Iron Wire Mesh Galvanized Gabion Baskets 100*120mm Hole

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: Gabion
Trading Properties
Minimum Order Quantity: 100 pcs
Price: Negotiated
Standard Packaging: Packed in bundles.We have a lot of stock and can ship quickly.
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 Square Meter/Square Meters per Day
Product Summary
Iron Wire Mesh Galvanized/PVC Coated Gabion Basket Prices Retaining Wall Blocks Product Description: Gabion baskets, also called gabion boxes, are made of corrosion-resistant, high-strength and ductile galvanized wire or PVC coated wire through mechanical weaving. Wire material is zinc -5% aluminum ...

Product Details

Highlight:

Gabion Baskets 100*120mm Hole

,

COC Gabion Mesh Baskets

,

COC Galvanized Gabion Baskets

Product Name: Galvanized/PVC Coated Gabion Basket
Material: Galvanized Iron Wire
Hole Shape: Hexagonal
Hole Size: 60*80/80*100/100*120mm
Gabion Size: 1*1*1m, 2*1*1m, 3*1*1m, 2*1*0.5m
Wire Gauge: 2.0mm - 4.0mm
Surface Treatment: Hot Dipped Galvanized,PVC Coated
Delivery Time: Within 7 Days
Application: Gabions, Rockfall Protection, Bank Protection
Advantage: Easy To Assemble And Durable
Product Description

Iron Wire Mesh Galvanized/PVC Coated Gabion Basket Prices Retaining Wall Blocks





Product Description:



Gabion baskets, also called gabion boxes, are made of corrosion-resistant, high-strength and ductile galvanized wire or PVC coated wire through mechanical weaving. Wire material is zinc -5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.

Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.



Material Galvanized low carbon steel wire
Weave Type Three-twist weave
Wire diameter Mesh wire:2.0mm-4.0mm
Selvedge wire:3.4mm, 3.8mm
Lacing wire:2.2mm
Mesh size 60*80mm, 80*100mm, 100*120mm
Hole Shape Hexagonal
Gabion size 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m,
Surface treatment HD galvanized, PVC coated
Color Green,Sliver
Characteristics Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported.
Usage Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.river gabion protection project

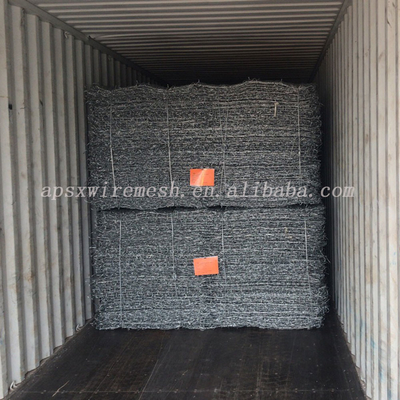

Packaging Packed in bundles or pallets or according to customer's requirements.



Gabion Basket Application:

  • Control and guide rivers and floods

The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.

  • Channel canal bed

The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.

  • Slope protection

The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.



Advantages of gabion basket structure:

1. The flexible structure can adapt to the changes of the slope without being destroyed, and has better safety and stability than the rigid structure;

2. Strong anti-scouring ability, can withstand the maximum water flow speed up to 6m/s;

3. The structure is inherently water-permeable, and has strong tolerance to the natural and filtering effects of groundwater. Suspended matter and silt in the water can be deposited in the rockfill, which is beneficial to the growth of natural plants. Restore the original ecological environment.



ISO COC Iron Wire Mesh Galvanized Gabion Baskets 100*120mm Hole
