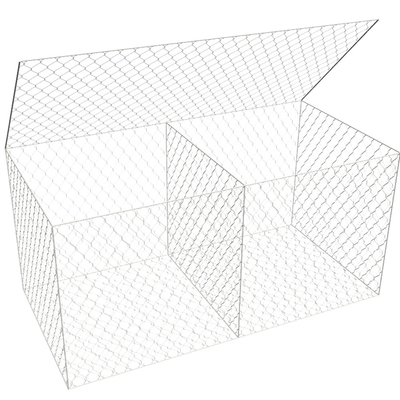

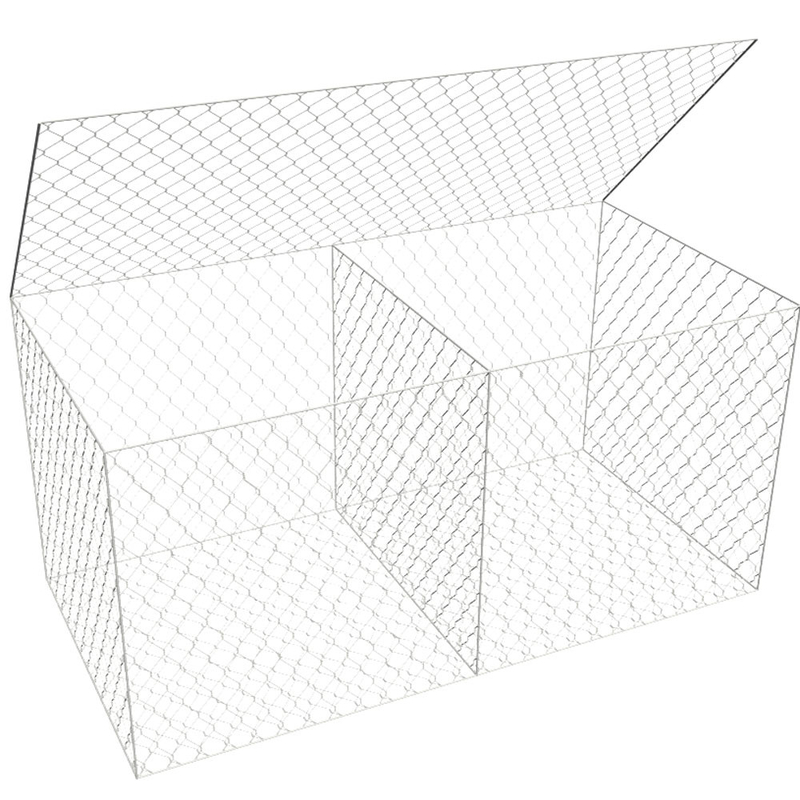

Double Twisted HDG Galvanized 8x10cm Gabion Baskets Stone Filled Wire Cages

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE, SGS
Model Number: SX-1
Trading Properties
Minimum Order Quantity: 1000 square meter
Standard Packaging: Packing with tape
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 square meter per month
Product Summary
Double Twisted Galvanized 8x10cm Gabion Baskets Stone Filled Cages Preventing Rock Breaking Product Description Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% ...

Product Details

Highlight:

8x10cm Gabion Baskets

,

Double Twisted stone filled wire cages

,

HDG galvanized Gabion Baskets

Type: HDG Galvanized
Wire Diameter: 2.7, 3.0, 3.4mm
Hole Size: 6x8cm, 8*10cm ,10x12cm
Surface Treatment: PVC Coated, Hot Dipped Galvanized
Color: Silver,gray,green,black
Application: Construction Wire Mesh,Cages,Protecting Mesh
Package: Wooden Pallet
Certification: CE,ISO
Product Description

Double Twisted Galvanized 8x10cm Gabion Baskets Stone Filled Cages Preventing Rock Breaking





Product Description



Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.



Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.



Specification



Gabion Specification :

Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire

Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.

Gabion size : 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,

5x1x0.3m,6x2x0.3m etc.,customized is available.

Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized

Gabion application: can be widely used in flood controlling,retaining wall,river bank protection,slope protection



Stone Gabion Mesh are made of high quality steel wire, which has 2 types of fabrication: double or triple twist fabric. The fabric structures are flexible and variable. Compared with welded gabion baskets, woven gabion baskets have durability for a long service life.



Gabion basket
Mesh wire 2.0mm-4.0mm
Mesh size 60*80mm, 80*100mm, 90*110mm, 100*120mm, 120*150mm
Selvedge wire thicker 0.5mm-1.0mm than mesh wire
Tie wire 2.2mm, 2.5mm
Gabion size 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m
Surface treatment high zinc coated, HD galvanized, PVC coated



Material galvanized wire, Zn-Al(Galfan) coated wire/ PVC coated wire
Application

can be widely used in flood controlling,retaining wall,river bank protection,

slope protection .

Hole shape Hexagonal
Use life About 30 years ,
Processing Bending, Cutting



Gabion mesh/ gabion box material:

(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.

(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.

(3) coated galvanized steel wire: low carbon steel wire PVC coated.

(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm,

(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested.



Advantages

(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;

(2) the construction is simple and does not need special technology;

(3) Strong ability to resist natural damage, corrosion and adverse weather effects;

(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.

(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;

(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.

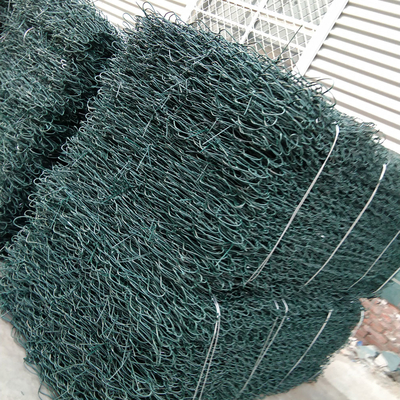

Packing and Loading



After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.

Double Twisted HDG Galvanized 8x10cm Gabion Baskets Stone Filled Wire Cages
