Hexagonal Pvc Coated Gabion Stone Cages 2x1x0.5m Erosion Resistant

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE, SGS
Model Number: SX-gabion basket
Trading Properties
Minimum Order Quantity: 1000 square meter
Price: negotiated
Standard Packaging: Packing with bundle
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, L/C,
Supply Ability: 10000 square meter per week
Product Summary
Stone Cages Hexagonal Pvc Coated Gabion Basket 2x1x0.5​ Gabion Basket Description Gabion refers to PVC coating on zinc coating wire fabric containers that comes in variable sizes with rocks filling to form a permanent structure. And the Green Gabion Mattress, also known as Gabion Mattress System by ...

Product Details

Highlight:

gabion 0.5m

,

gabion Erosion Resistant

,

Pvc Coated Gabion Erosion Resistant

Name: Gabion Basket
Wire Diameter: 2.7, 3.0, 3.4,3.9 Mm
Hole Size: 6x8cm, 8*10cm ,10x12cm
Surface Treatment: PVC Coated, Galvanized
Application: Construction Wire Mesh,Cages,Protecting Mesh
Certification: CE,ISO ,SGS,COC

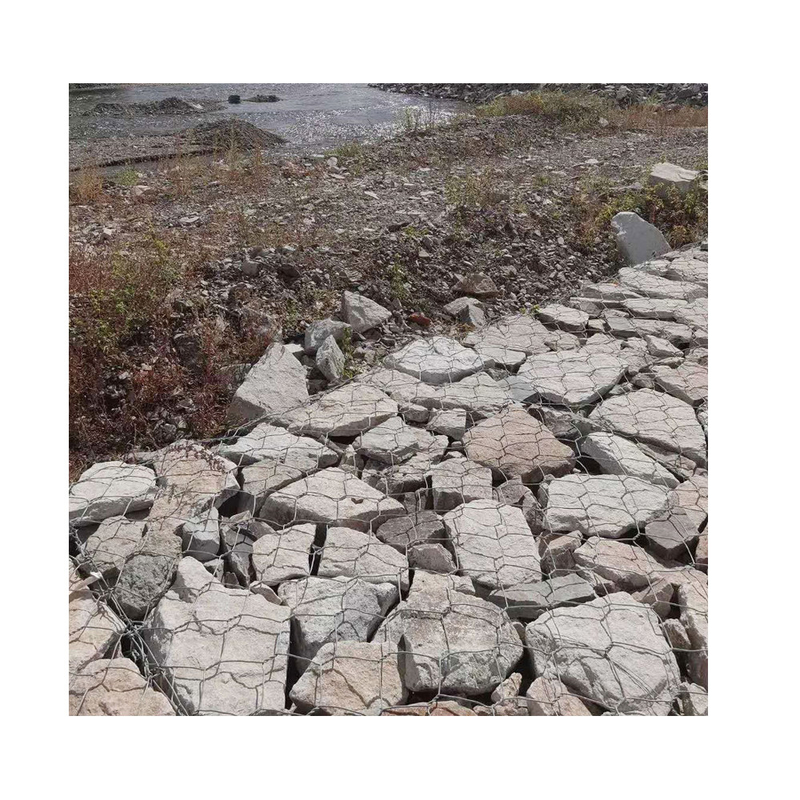

Application: Can Be Widely Used In Flood Controlling,retaining Wall,river Bank Protection,slope Protection
Feature: Corrosion Resistance
Product Description

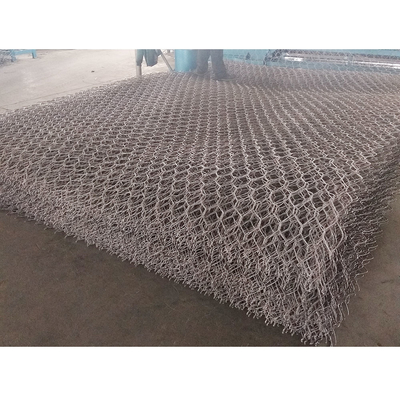

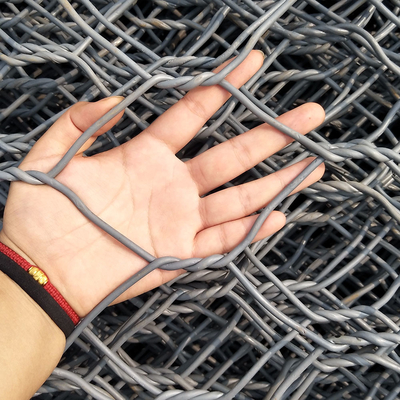

Stone Cages Hexagonal Pvc Coated Gabion Basket 2x1x0.5​



Gabion Basket Description



Gabion refers to PVC coating on zinc coating wire fabric containers that comes in variable sizes with rocks filling to form a permanent structure. And the Green Gabion Mattress, also known as Gabion Mattress System by Fibromat makes a great Earth Retention System caters for slopes erosion control, toe and river bank protection, maximizing permeability on the structure while providing reinforcement and grass establishment.



Gabion Basket Specification list



mesh hole size : 60*80mm, 80*100mm, 100*120mm
mesh body wire : 2.7mm,3.0mm
edge wire : 3.4mm,3.8mm
tie wire : 2.2mm
gabion size: 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m
Surface treatment : heavy zinc coated galvanized, pvc coated
use retaining walls, channel lining and other applications

Hexagonal Pvc Coated Gabion  Stone Cages 2x1x0.5m Erosion Resistant

Weaving type Feature Material

Mesh size



Wire Gauge



Processing Service
Durable Three Normal Twist Corrosion Resistance Galvanized Iron Wire

80x100 cm

100x120cm

2.7mm-3.5mm Bending Cutting



Gabion Basket Advantage



(1) Economy. Just put the stone into the cage and seal it.

(2) The construction is simple and does not need special technology.

(3) Strong ability to resist natural damage, corrosion and adverse weather effects.

(4) can withstand large-scale deformation without collapsing.

(5) Silt between the cage stones is beneficial to plant production and can be fused with the surrounding natural environment.

(6) It has good permeability and can prevent damage caused by hydrostatic force. It is conducive to the stability of mountain slopes and beaches. (7) Save transportation costs. It can be folded up for transportation and assembled on the construction site.



Gabion Basket Feature

High versatility: Gabion Wall Cages can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance.



Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our galfan gabion and PVC gabion can last up to 120 years based on different exposure conditions.



Robust and flexible structure: woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses.



Good ductility, no structural joints.



Gabion Basket Packing and Loading



After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.



1.With plastic weaving bags outside

2.With wooden pallet cloth

3.Less transport freight. It can be folded together for transport and further installation.

For 2*1*1 m :

1*20 gp :1000 pcs (11000sqm)

1*40 hq:1700 pcs (18700sqm)

Hexagonal Pvc Coated Gabion  Stone Cages 2x1x0.5m Erosion Resistant
