Product Details:
|
| Wire Gauge: | 2.0mm-4.0mm | Aperture: | 80*100mm |
|---|---|---|---|
| Lacing Wire: | 2.2mm | Surface Treatment: | Pvc Coated |
| Mesh Shape: | Hexagonal Gabion Basket | Warranty: | ≥ 3 Years |
| High Light: | Heavy Zinc Gabion Wall Cages,Erosion Control Gabion Wall Cages,Erosion Control hexagonal Gabion Cages |
||

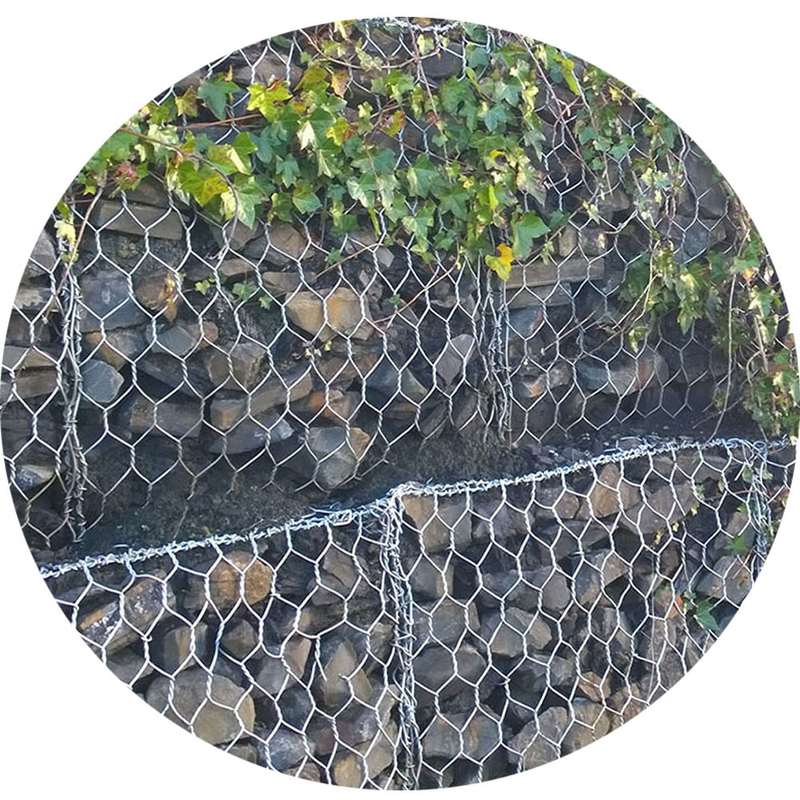

Erosion Control Heavy Zinc Gabion Basket Gabion Wall Cages For Retaining Wall
Product name: Gabion Basket
Gabion basket is an environmentally sensitive solution to slope stabilization. It has already been mentioned that stone fill is done with natural stones making the gabions, naturally porous allowing interaction between the land and the water table and also persuades deposition of soil in the smaller voids between the stone fill during drainage that again promote vegetation growth.
| Gabion basket material | galvanized wire,ZnAl(Galfan) coated wire/PVC or PE coated wire |
| Gabion basket wire diameter | 2.0mm,2.2mm,2.7mm,3.05mm etc. |
| Gabion basket sizes | 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m, |
| Gabion size | 60*80mm,80*100mm,100*120mm,120*150mm,or customized |
| Gabion surface treatment | hot dip galvanized,aluminum alloy(galfan),PVC coated etc. |
Gabion basket application: can be widely used in flood controling,retaining wall,river bank protection,slope protection etc.
Gabion Basket Advantage:
Flexibility: Flexibility is an important benefit of any gabion structure.
Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones
Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses
Permeability: Gabion walls are previous to water and stabilize slopes by the combined action of draining and retaining
Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
Ecology: naturally porous allowing interaction between the land and the water table and also persuades deposition of soil in the smaller voids between the stone fill during drainage that again promote vegetation growth.
| Hexagonal Wire Mesh Gabion Cage Specification | |||
| Length*Width*Height | 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m or Customized | ||
| Mesh Size | 60*80; 80*100; 100*120 as standard, or customized | ||
| Wire Diameter | 2.00mm to 4.0m or customized | ||
| Surface Finish | Electro Galvanized Hot Dipped Galvanized Galfan Coated PVC Coated |
||
| Weaving | Double Twist | ||
| PVC Coated Gabion Box Specification | |||
| Opening (mm) |
Wire Diameter(Metal Wire) (mm) | Wire Diameter (PVC Coate)/ Inner/Outside(mm) | |
| 60X80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | |
| 80X100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | |
| 80X120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | |
| 100X120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | |
| 100X150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | |
| 120X150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | |
