Marine Seawall Protection 2x1x1m Galvanized Gabion Basket High Durability
Product Details
marine and seawall protection 2x1x1m galvanized gabion basket with low price
Description :

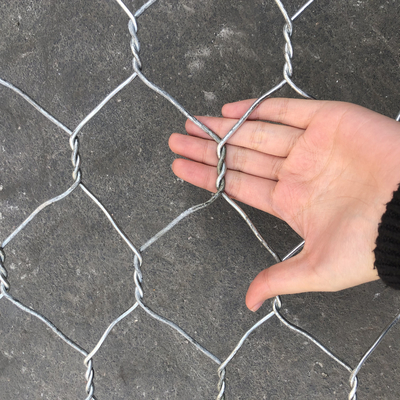

Gabion basket are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC coated wires, the mesh shape is hexagonal style.

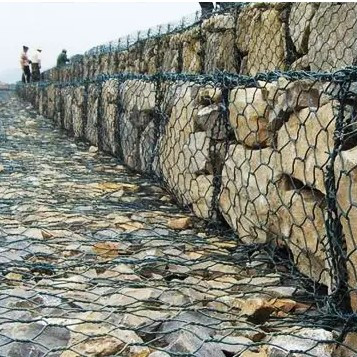

The gabion basket are used widely in slope protection, foundation pit suporting, mountain rock holding, river and dams scour protection.
Gabion basket can be supplied in various lengths, widths and heights. In order to strengthen the boxes,all the edges of the structure shall be selvedged with wire of bigger diameter.
Hole size: 60*80mm,80*100mm,80*120mm,100*120mm,120*150mm etc
Wire size: 1.Mesh wire: 2mm-4mm
2.Edge wire: 0.5mm-1mm
3.Binding wire: 2.2mm
Tensile resistance: Above 38kg/m2 380N/mm
Surface treatment: Electrical galvanized (zinc coating: 10g/m2), Hot dipped Galvanized: (zinc coating: 300g/m2), Aluminium Alloy, PVC coated (pvc thickness: 1.0mm)
Gabion Basket Material :
1. hot-dip galvanized low carbon steel wire,
2. Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion.

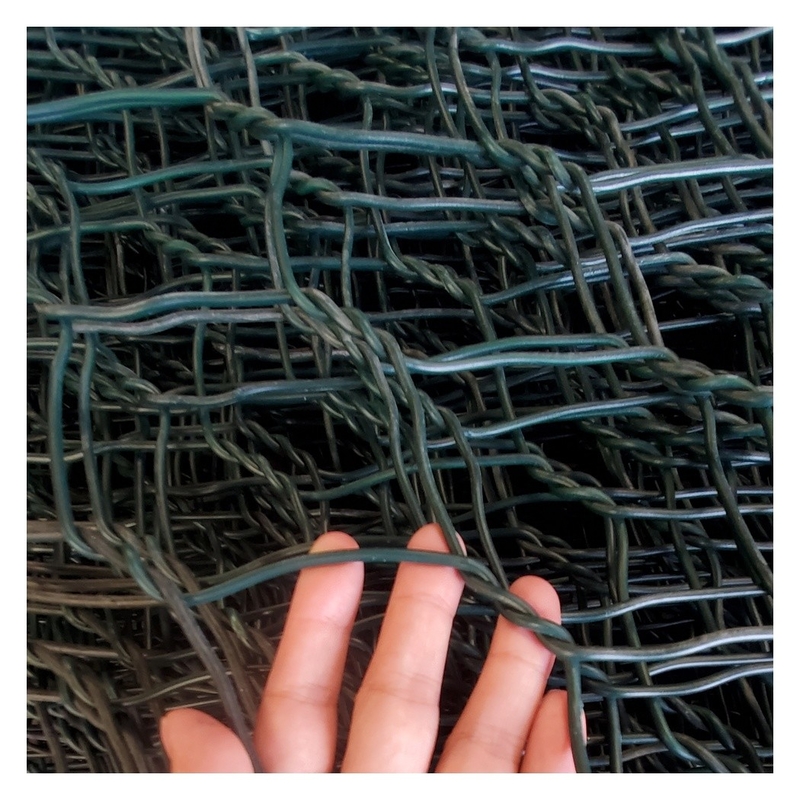

3. PVC coated , PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
4. Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
5. zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
| gabion specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m | ||
Gabion Basket Advantage:
-
Economic. Just put the stone into the gabion and seal.
-
Easily construct, no special technology needed.
-
Strong capacity of withstand nature destroy, rust-resistance and atrocious weather resistance.
-
Affording Large scale distortion, but never be defeated.
-
The slit between the mesh and stone is good for the growth, which can be the part of the environment around.
-
Excellent Penetrability, which can prevent from the whist by liquid.
-
Saving the transport costs. Which can fold while loading and transport, then assemble.
Gabion Basket Applications :
• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road
