Double Twist Galvanized Gabion Box Hexagonal Gabion Wire Mesh Corrosion Protection

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: ISO,CE,SGS,
Model Number: SX-gabion basket-2
Trading Properties
Minimum Order Quantity: 1800PCS
Price: USD: 3-7/PCS
Standard Packaging: Bundle and Container
Delivery Time: 6-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 10001 PCS Per Week
Product Summary
Galvanized Gabion Box Hexagonal Gabion Iron Wire Mesh Woven Gabion Net The gabion mesh is made of low-carbon steel wire with high corrosion resistance, high strength, and ductility, or steel wire coated with PVC, which is mechanically woven. The box structure made from this mesh is the gabion mesh ...

Product Details

Highlight:

Galvanized Gabion Box Corrosion Protection

,

Gabion Wire Mesh Corrosion Protection

,

Double Twist Galvanized Gabion Box

Name: Gabion Box
Material: Galvanized Wire, PVC Wire, Galfan Wire
Weave: Double Twist
Mesh Wire: 2.5/2.9/3.0/3.3mm
Selvage Wire: 3.6mm
Biding Wire: 2.2mm
Mesh Hole: 60*80mm, 80*100mm, 100mm*120mm
Gabion Size: 6*2*0.3m, 2*1*1m, 3*1*1m, 4*1*1m
Warranty: ≥ 7 Years
Application: Gabions Retaining Wall, Bank Protection
Product Description

Galvanized Gabion Box Hexagonal Gabion Iron Wire Mesh Woven Gabion Net





The gabion mesh is made of low-carbon steel wire with high corrosion resistance, high strength, and ductility, or steel wire coated with PVC, which is mechanically woven. The box structure made from this mesh is the gabion mesh box. According to ASTM and EN standards, the diameter of low-carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the gabion mesh steel wire is not less than 38kg/m2, the weight of the metal coating is generally higher than 245g/m2, and the diameter of the edge line of the gabion mesh is generally larger than the diameter of the mesh line. The length of the double stranded part shall not be less than 50mm to ensure that the metal coating and PVC coating of the stranded steel wire are not damaged.

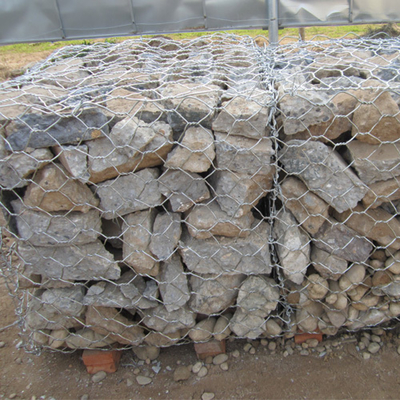

Double Twist Galvanized Gabion Box Hexagonal Gabion Wire Mesh Corrosion Protection

Mesh Hole
PVC Coated Wire (Inner/Outside
Hot Dipped Galvanized Wire
Galfan Coated Wire
60*80mm
2.0mm/3.0mm-2.8mm/3.8mm
2.2mm-3.8mm
2.2mm-3.8mm
80*100mm
2.2mm/3.2mm-3.0mm/4.0mm
3.2mm-4.0mm
3.2mm-4.0mm
100*120mm
2.4mm/3.4mm-3.2mm/4.2mm
3.4mm-4.2mm
3.4mm-4.2mm
120*150mm
2.7mm/3.7mm-3.5mm/4.5mm
3.7mm-4.5mm
3.7mm-4.5mm
Length (M)
Width (M)
Height (M)
Diaphragm Quantity
1
1
1
0
2
1
1
1
3
1
1
2
4
1
1
3
6
1
1
5
2
1
0.5
1
3
1
0.5
2
3
2
0.3
5

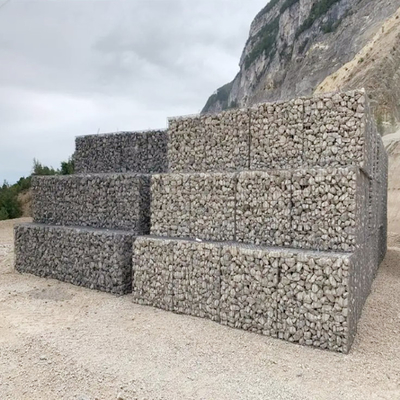

Double Twist Galvanized Gabion Box Hexagonal Gabion Wire Mesh Corrosion Protection

It can be produced according to the design requirements of the drawings. Generally, the machine is up to 4m wide and any length. However, the conventional size of Renault pad in China is 6*2*0.3m, mesh: 6*8cm, wire diameter: 2.0mm. Materials: galvanized, galvanized PVC (PVC color is usually gray or green), Galfan commonly known as 5% or 10% zinc aluminum alloy, zinc aluminum alloy coated PVC. Zinc aluminum alloy material is the best quality of these products, and its service life is 70~80 years! The cage size is generally 2*1*1m 4*1*1m 1*1*1m, and the mesh pad size is generally 6*2*0.3m 6*2*0.17m 4*2*0.35m.

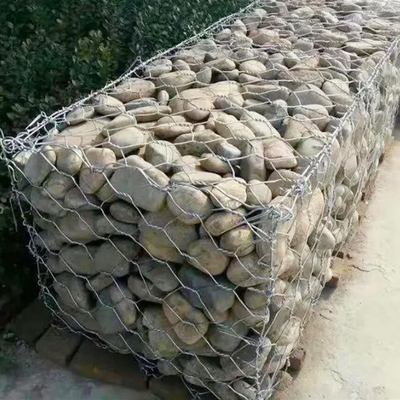

Double Twist Galvanized Gabion Box Hexagonal Gabion Wire Mesh Corrosion Protection

Gabion pad material:
(1) Galvanized steel wire: high-quality low-carbon steel wire, with a diameter of 2.0mm-4.0mm, and a tensile strength of not less than 380MPa. The surface of the steel wire is protected by hot galvanizing. The thickness of the galvanized protective layer is made according to the customer's requirements, and the maximum amount of galvanizing can reach 300g/m2.
(2) Zinc-5% aluminum mixed rare earth alloy steel wire: (also known as golfan) steel wire, which is a new material in the world in recent years, has corrosion resistance more than three times that of traditional pure galvanizing. The diameter of the steel wire can reach 2.0mm-4.0mm, and the tensile strength of the steel wire is not less than 380MPa.
(3) Galvanized steel wire wrapped with plastic: high-quality low-carbon steel wire is wrapped with a layer of PVC or PE protective layer on the surface of the steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.
(4) Zinc-5% aluminum mixed rare earth alloy steel wire wrapped with plastic: a layer of PVC or PE protective layer is wrapped on the surface of Zinc-5% aluminum mixed rare earth alloy steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.

Double Twist Galvanized Gabion Box Hexagonal Gabion Wire Mesh Corrosion ProtectionDouble Twist Galvanized Gabion Box Hexagonal Gabion Wire Mesh Corrosion Protection
