Standard Hexagonal Wire Gabion Box Retaining Wall Galvanized

Basic Properties
Place of Origin: CN
Brand Name: SHUXIN
Certification: ISO 9001, CE, SASO, COC
Model Number: -Gabion
Trading Properties
Minimum Order Quantity: 1000 square meters
Price: Negotiated
Standard Packaging: Folded then in Pallet
Delivery Time: 7 working days after getting the depoist
Payment Terms: L/C, D/A, D/P, T/T, Western Union, ,Paypal
Supply Ability: 10000 square meter per week
Product Summary
Standard Galvanized Hexagonal Gabion Basket Box for Flood Control Retaining Wall High versatility: Gabion Wall Cages can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted ...

Product Details

Highlight:

Gabion Box

,

galvanized wall basket

,

Standard hexagonal gabion box

Material: Q195, Low Carbon Steel Wire, Galfan Wire
Standard: EN 10223-3, EN 10223-9
Application: Gabion Retaining Wall, Gabion Basket River Protection
Advantages: Easy Install, Long Using Life
Cage Size: 1*1*1M, 1*1*2M,1*1*3M
Mesh Hole: 7*9cm,6*8cm,8*10cm,10*12cm
Wire Diameter: 2.7mm, 3.05mm
Zinc Coating: 240g - 275g
Package: In Bundle
Delivery: 7 Days
Sample: Free Sample Send
Stock: Have Large Stock
Type: Gabion
Certificate: CE, ISO, FE, CO Etc
Product Description

Standard  Galvanized Hexagonal  Gabion Basket Box for Flood Control Retaining Wall



High versatility: Gabion Wall Cages can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance.



Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our galfan gabion and PVC gabion can last up to 120 years based on different exposure conditions.



Robust and flexible structure: woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses.



Material: Galvanized wire, Galfan wire,PVC coated wire,
Wire Gauge: 2.7mm, 2-4mm
Hole Size: 60x80mm, 80x100mm, 100x120mm
Gabion Size: 1.5x1x1,2x1x0.5,2x1x1,3x1x0.5,3x1x1,4x1x0.5,4x1x1,5x1x1



Quick View of Gabions Woven Wire Mesh Box Retaining Walls :

Product Name Gabion Wire Mesh Box Cage
Material Low Carbon Steel Wire, Q195,Q235
Process Weave By Machine
Usage Slope support, foundation pit support
Features High corrosion resistance, high strength, ductility
Tensile Strength 38kg/m2



Production Process of Gabions Woven Wire Mesh Box Retaining Walls :

Raw Materials (Wire Rod) - Cold drawn / Galvanized / PVC Coated - Machine Weaving - Artificial Shear, Assembly - Product Inspection - Packaging and Transport

Standard  Hexagonal Wire  Gabion Box Retaining Wall Galvanized

Specification Sheet of Gabions Woven Wire Mesh Box Retaining Walls :

Wire Diameter Mesh Hole Size of Box Cage
2.0mm-4.0mm 60 * 80 mm

2M * 1M * 1M

3M * 1M * 1M

4M * 1M * 1M

2M * 1M * 0.5M

4M * 1M * 0.5M

80 * 100 mm
80 * 120 mm
100 *120 mm
120 * 150mm
90 * 110 mm
Surface Treatment: Galvanized, Hot Dipped Galvanized,Galfan Coated, PVC Coated

PS: People often use Hot Dipped Galvanized, Or Galfan Coated Gabion Wire Mesh, The using life can be        20 years, it is more suitable.

Application:

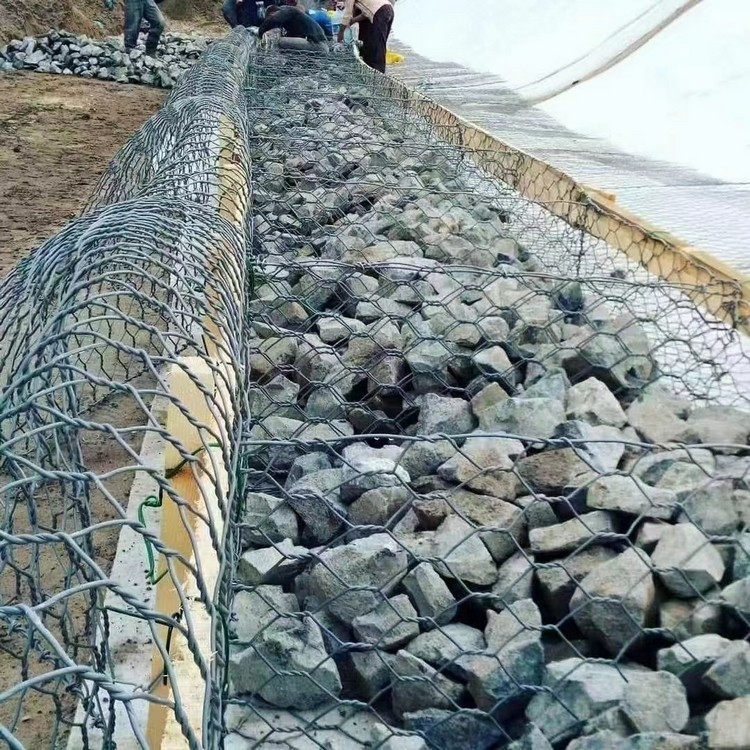

Foldable Stone Filled Woven Gabion Wire Mesh Mainly used for river, bank slope, road slope slope protection structure. It can not only prevent riverbank from making water flow and storm and wave, but also achieve the natural convection and exchange function between water bodies and the soil beneath the slope to achieve ecological balance.



Advantages:

  • Economy, Just put the stone into the cage is okay to use.
  • It is simple to Operation, No need special skills.
  • Strong ability to resist the effects of natural damage, corrosion and weather.
  • It will not collapse with a wide range of deformation
  • It is good to Growing for Plant between the gap of Stone,together with the Environmental.
  • Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches
  • It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
  • Corrosion resistance: galvanized materials are not afraid of sea water.

Standard  Hexagonal Wire  Gabion Box Retaining Wall Galvanized
