Weave Iron Wire Mesh / Gabion Mesh Factory Prices / Gabion Box Retaining Wall

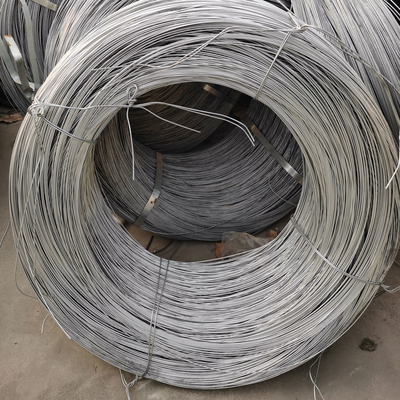

Gabion basket is an ecological grid structure. The stone cage net is mechanically woven from low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire. The box-shaped structure made by the net is the stone cage. The diameter of the low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire is not less than 38kg/m2, and the metal coating weight is generally higher than 245g/m2. The diameter of the edge wire of the gabion mesh is generally larger than the diameter of the wire. The length of the twisted part of the double wire shall not be less than 50mm. To ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.
Gabion Wire Mesh Gabion Baskets Stone Boxes :
| Gabion basket |
| Mesh wire |
2.0mm-4.0mm |
| Mesh size |
60*80mm,80*100mm,90*110mm,100*120mm,
120*150mm
|
| Selvedge wire |
thicker 0.5mm-1.0mm than mesh wire |
| Tie wire |
2.2mm,2.5mm |
| Gabion size |
1*1*1m,2*1*1m,3*1*1m,4*1*1m,6*2*0.3m |
| Surface treatment |
Hot dip galvanized, PVC coated |
Application:

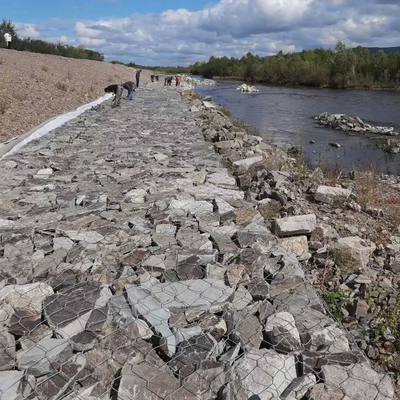

The structure can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, rivers, Erosion protection of dams and seawalls, as well as cages for the closure of reservoirs and rivers.
Retaining wall
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Advantages:
- Economy, Just put the stone into the cage is okay to use.
- It is simple to Operation, No need special skills.
- Strong ability to resist the effects of natural damage, corrosion and weather.
- It will not collapse with a wide range of deformation
- It is good to Growing for Plant between the gap of Stone,together with the Environmental.
- Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches
- It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
- Corrosion resistance: galvanized materials are not afraid of sea water.
Installation Process
1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
