razor wire bto-10 Razor Barbed Wire The Ultimate Solution for Enhanced Safety and Protection

Basic Properties
Place of Origin: China
Brand Name: SHUXIN
Model Number: No.1
Trading Properties
Minimum Order Quantity: 1 set
Price: 500USD
Standard Packaging: Packing into pallet and wooden box
Delivery Time: 1-2 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 5000 sets per DAY
Product Summary
High Quality Razor Barbed Wire - Factory Price Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and ...

Product Details

Highlight:

barbed wire and razor wire

,

barbed wire razor

,

barbed wire razor wire

Barbed Width: 13mm, 15mm, 21mm, 32mm
Packaging: Standard Export Packaging
Material: Galvanized Steel
Barbed Length: 10 12 18 22 28 30 60 65
Color: Silver
Ventilation: Side Ventilation
Product Description

High Quality Razor Barbed Wire - Factory Price

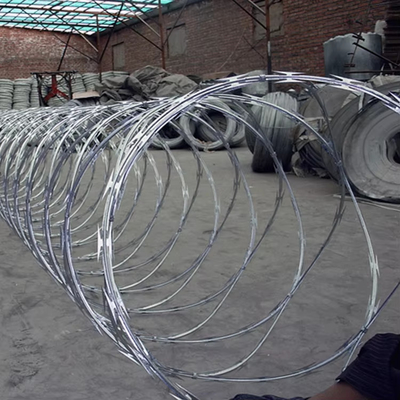

Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,
with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.
The wire and strip are galvanized or PVC coated to prevent corrosion.
Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate
Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65

razor wire bto-10  Razor Barbed Wire The Ultimate Solution for Enhanced Safety and Protection








Model Plate Thickness
mm
Core wire Diameter mm Barb Length
mm
Barb Width
Mm
Barb Spacing
mm
BTO-10 0 .5 +- 0.05 mm 2.5mm 10mm 13mm 26mm
BTO-12 0 .5 +- 0.05 mm 2.5mm 12mm 15mm 26mm
BTO-18 0 .5 +- 0.05 mm 2.5mm 18mm 15mm 38mm
BTO-22 0 .5 +- 0.05 mm 2.5mm 22mm 15mm 38mm
BTO-28 0 .5 +- 0.05 mm 2.5mm 28mm 15mm 53mm
BTO-30 0 .5 +- 0.05 mm 2.5mm 30mm 21mm 54mm
BTO-60 0 .6 +- 0.05 mm 2.5mm 60mm 32mm 102mm
BOT-65 0 .3 +- 0.05 mm 2.5mm 65mm 22mm 102mm




Coil OD
(mm)
NO. of Loops NO. of Clips The Utmost
Length (m)
Barb Type Notes
450 mm 33 - 7-8 m CBT60 CBT65 Single Coil
500 mm 56 - 12-13 m CBT60 CBT65 Single Coil
700 mm 56 - 13-14 m CBT60 CBT65 Single Coil
960 mm 56 - 14-15 m CBT60 CBT65 Single Coil
450 mm 56 3 clips 8-9 m BTO12 18 22 28 30 Cross Type
500 mm 56 3 clips 9-10 m BTO12 18 22 28 30 Cross Type
600 mm 56 3 clips 10-11 m BTO12 18 22 28 30 Cross Type
600 mm 56 5 clips 8-10 m BTO12 18 22 28 30 Cross Type
700 mm 56 5 clips 10-12 m BTO12 18 22 28 30 Cross Type
800 mm 56 5 clips 11-13 m BTO12 18 22 28 30 Cross Type
900 mm 56 5 clips 12-14 m BTO12 18 22 28 30 Cross Type
960 mm 56 5 clips 13-15 m BTO12 18 22 28 30 Cross Type
980 mm 56 5 clips 14-16m BTO12 18 22 28 30 Cross Type





razor wire bto-10  Razor Barbed Wire The Ultimate Solution for Enhanced Safety and Protection



razor wire bto-10  Razor Barbed Wire The Ultimate Solution for Enhanced Safety and Protection
