Weave Hexagonal Gabion Wall Cages Rust Resistance Galvanized / Pvc Coated 2.7mm

Basic Properties
Place of Origin: Hebei, CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: SX-GABION
Trading Properties
Minimum Order Quantity: 100 pc
Price: Negotiated
Standard Packaging: Wooden pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500 pc per day
Product Summary
Weave Hexagonal Rust Resistance Galvanized / Pvc Coated 2.7mm Gabion Wall Cages Gabion is PVC coatings on zinc-coated metal wire fabric containers with variable sizes that fill rocks to form permanent structures. Green gabion mattress (Fibromat is also called gabion mattress system) is a great soil ...

Product Details

Highlight:

2.7mm gabion wall cages

,

rust resistance gabion wall cages

,

weave hexagonal galvanized gabion

Wire Gauge: 2.0mm-4.0mm
Aperture: 60*80mm,80*100mm,100*120mm
Surface Treatment: PVC Coated Or Hot Galvanized
Mesh Shape: Hexagonal Hole
Cage Size: 1*1*1m,2*1*1m,3*1*1m
Application: Retaining Wall,Prevent The Water And Soil Lost
Product Description

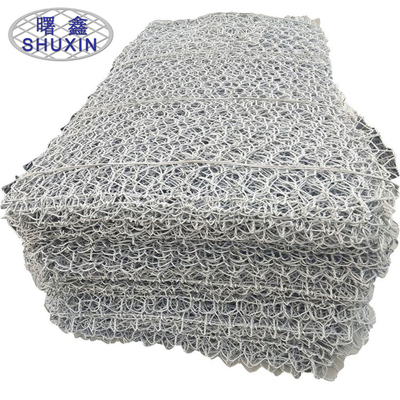

Weave Hexagonal Rust Resistance Galvanized / Pvc Coated 2.7mm Gabion Wall Cages




Gabion is PVC coatings on zinc-coated metal wire fabric containers with variable sizes that fill rocks to form permanent structures. Green gabion mattress (Fibromat is also called gabion mattress system) is a great soil stabilization system, which can be used for slope erosion control, toe and river bank protection, to maximize the permeability of the structure, while providing reinforcement and grassland construction.

Gabion mattresses are used as retaining walls to provide various prevention and protection projects, such as landslide prevention, erosion and erosion protection, as well as hydraulic and coastal protection for various types of rivers, seas and river courses. This gabion mattress system is made of a specially designed composite material, which maximizes its performance through a three-stage vegetation process from non-vegetation to vegetation establishment to vegetation maturation.



Gabion Wall Cages Specifications Mesh hole modle
  8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
  Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m



Gabion Wall Cages Characteristics:



(1) Economic. Just fill the stone into the gabion and seal it.

(2) Simple installation. No special technology needed.

(3) Weather proof under natural destroy, corrosion resistant.

(4) No collapse even under big scope of deforming.

(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.

(6) Good permeation can prevent the damage by hydrostatics.

(7) Less transport freight. It can be folded together for transport and further installation.



Introduction to the use of gabion baskets:



The structure can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, rivers, Erosion protection of dams and seawalls, as well as cages for the closure of reservoirs and rivers.



Control and guide rivers and floods

The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.

Channel canal bed

The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.

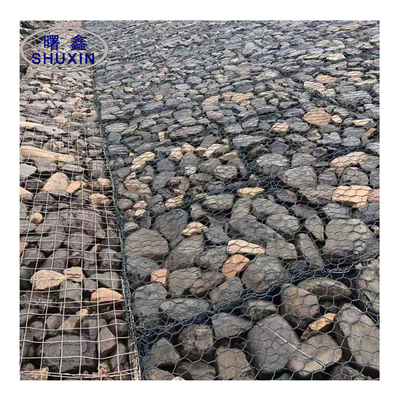

Slope protection

The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.


Gabion Cage Installation Process:

  • 1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
  • 2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
  • 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
  • 4. Box gabion filled with graded stone by hand or with a shovel.
  • 5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
  • 6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
