Product Details:
|
| Features: | High Corrosion Resistance, High Strength, Ductility | Weave Style: | PVC Coated Gabions Baskets Prices Retaining Wall |
|---|---|---|---|
| Color: | Sliver，Green，Gray | Surface Treatment: | Galvanized, PVC Coated |
| Mesh Wire: | 2.0mm-4.0mm | Selvedge Wire: | 3.4mm, 3.8mm |
| Lacing Wire: | Common Use 2.2mm | Zinc Coating: | 240-260g/m2 |
| Gabion Box Size: | 1*1*1m / 2*1*1m / 3*1*1m / 2*1*0.5m | Application: | Earth-Retaining Wall, River Bank Gabion Protection |
| High Light: | 4mm galfan gabion baskets,2m length galfan gabion baskets,hexagon 4mm gabion baskets |
||

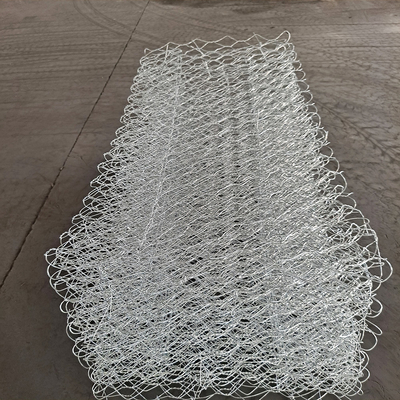

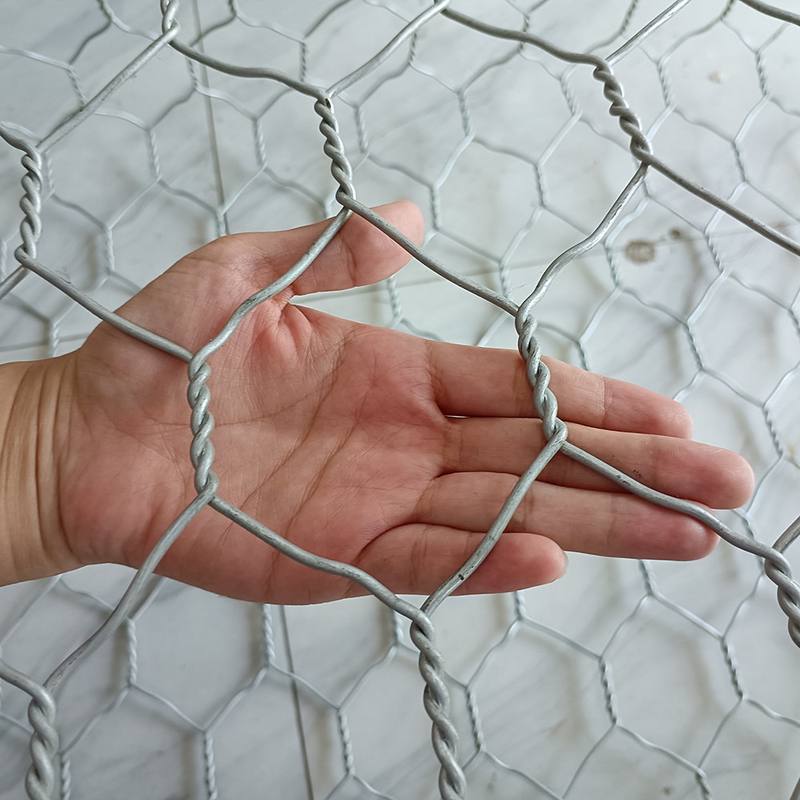

Hexagon 2m Length Gabion Basket Cages Seawall Protect
Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.
Gabion Specification :
Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire
Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.
Gabion size : 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.
Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized
Gabion application: can be widely used in flood controlling,retaining wall,river bank protection,slope protection
|
Gabion box (mesh size): 80*100mm 100*120mm |
Mesh Wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire diameter | 3.4mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire diameter. | 2.2mm | zinc coating:60g,≥220g/m2 | |
|
Gabion mattress (mesh size): 60*80mm |
Mesh wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire diameter. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 | |
|
special sizes Gabion are available
|
Mesh wire diameter | 2.0~4.0mm |
superior quality,competitive price and considerate service |
| Edge wire diameter | 2.7~4.0mm | ||
| Tie wire diameter | 2.0~2.2mm |
| Weaving type | Feature | Material |
Mesh size
|
Wire Gauge
|
Processing Service |
| Durable Three Normal Twist | Corrosion Resistance | Galvanized Iron Wire |
80x100 cm 100x120cm |
2.7mm-3.5mm | Bending Cutting |
After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.
Gabion Basket Application:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Gabion Basket Advantage:
Economic. Just fill the stone into the gabion and seal it.
Easy to install.
High zinc coating thus anti-rust and anti-corrosive.
Low cost and High security.
Good permeation can prevent the damage by hydrostatic pressure
Less transport freight. It can be folded together for transport and further installation.
The gabion basket has unique ecological function. A little soil is sprinkled on the surface of the protective body, and greening can be carried out. Because the stones are filled with gaps, the gaps contain soil, which is beneficial to the development of plant roots and creates a good ecological environment. Even if the soil is not sprinkled, with the passage of time, the space between the stones will silence the soil, thus growing some herbaceous plants and forming a natural ecological environment.
