Product Details:
|
| Name: | Gabion Basket | Wire Diameter: | 2.7, 3.0, 3.4,3.9 Mm |
|---|---|---|---|
| Hole Size: | 6x8cm, 8*10cm ,10x12cm | Surface Treatment: | PVC Coated, Galvanized |
| Application: | Construction Wire Mesh,Cages,Protecting Mesh | Certification: | CE,ISO ,SGS,COC |
| Application: | Can Be Widely Used In Flood Controlling,retaining Wall,river Bank Protection,slope Protection | Feature: | Corrosion Resistance |
| High Light: | erosion resistant pvc coated gabion box,2mx1mx1m pvc coated gabion box,pvc coated gabion baskets 2mx1mx1m |
||

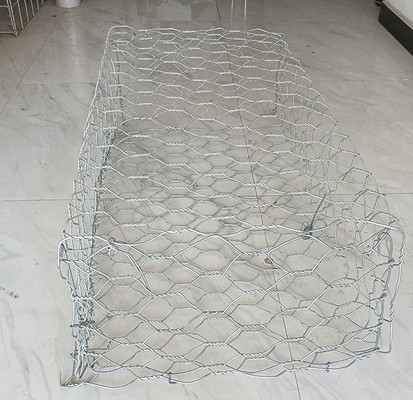

2*1*1 M Pvc Coated Hexagonal Gabion Baskets Cages Erosion Resistant
Gabion Basket Description
The gabions are made of high corrosion resistant, high strength, ductile low carbon steel wire or PVC coated steel wire woven together using machinery. The diameter of the low carbon steel wire used varies according to ASTM and EN standards, depending on the design requirements. The tensile strength of the wire is not less than 38kg/m2 and the metal coating weight is generally higher than 245g/m2. The length of the twisted part of the double wire must not be less than 50 mm to ensure that the metal plating and PVC plating of the twisted part of the wire are not damaged.
Gabion Basket Specification list

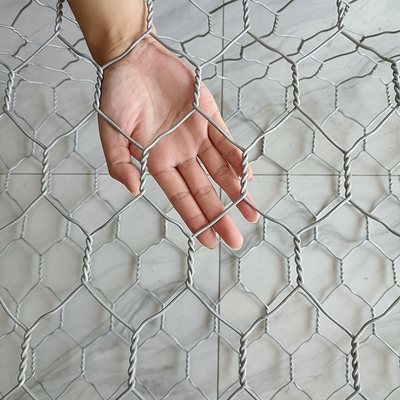

| mesh hole size : | 60*80mm, 80*100mm, 100*120mm |
| mesh body wire : | 2.7mm,3.0mm |
| edge wire : | 3.4mm,3.8mm |
| tie wire : | 2.2mm |
| gabion size: | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m |
| Surface treatment : | heavy zinc coated galvanized, pvc coated |
| use | retaining walls, channel lining and other applications |
| Weaving type | Feature | Material |
Mesh size
|
Wire Gauge
|
Processing Service |
| Durable Three Normal Twist | Corrosion Resistance | Galvanized Iron Wire |
80x100 cm 100x120cm |
2.7mm-3.5mm | Bending Cutting |
Gabion Basket Feature
High versatility: Gabion Wall Cages can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance.
Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our galfan gabion and PVC gabion can last up to 120 years based on different exposure conditions.
Robust and flexible structure: woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses.
Good ductility, no structural joints.

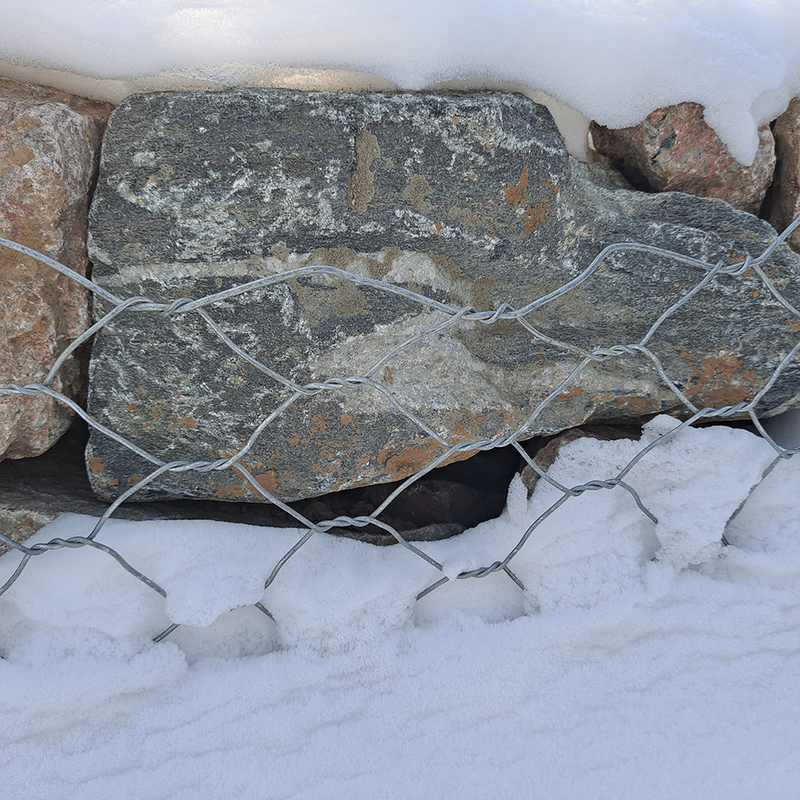

The construction combination and stone filling steps can be summarized as follows: Each unit structure is combined before placement The structure of the pad combination is placed at the construction site, and the cell structures are connected by tie wire. Rock fill in structure Cover the structure and fasten it with tie wire.
Gabion Basket Packing and Loading
After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport and further installation.
For 2*1*1 m :
1*20 gp :1100 pcs (11000sqm)
1*40 hq:1800 pcs (18700sqm)
