1x1x1m Hexagonal Gabion Basket / Galvanized Pvc Coated Gabion Box

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: Gabion
Trading Properties
Minimum Order Quantity: 100 pcs
Price: Negotiated
Standard Packaging: Packed in bundles.We have a lot of stock and can ship quickly.
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 Square Meter/Square Meters per Day
Product Summary
Wholesale Galvanized PVC Coated Gabion Box Hexagonal Gabion Basket Galvanized coated gabion Mesh hole : 80*100 mm Mesh wire : 2.7 mm Tie wire : 2.2 mm Selvedge wire : 3.4 mm Including binding wire for gabion box. Product Characteristics: (1) Economic. Just fill the stone into the gabion and seal it. ...

Product Details

Highlight:

1x1x1m hexagonal gabion basket

,

pvc coated hexagonal gabion basket

,

1x1x1m pvc coated gabion box

Product Name: Galvanized/PVC Coated Gabion Basket
Material: Galvanized Iron Wire
Hole Shape: Hexagonal
Hole Size: 60*80/80*100/100*120mm
Gabion Size: 1*1*1m, 2*1*1m, 3*1*1m, 2*1*0.5m
Wire Gauge: 2.0mm - 4.0mm
Surface Treatment: Hot Dipped Galvanized,PVC Coated
Delivery Time: Within 7 Days
Application: Gabions, Rockfall Protection, Bank Protection
Advantage: Easy To Assemble And Durable
Product Description

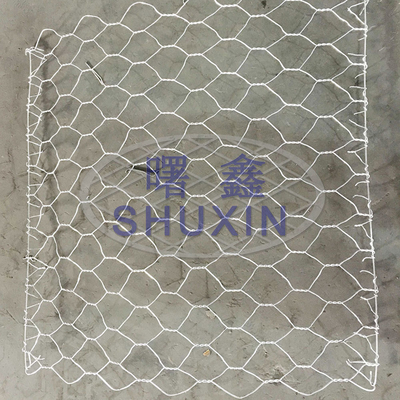

Wholesale Galvanized PVC Coated Gabion Box Hexagonal Gabion Basket





Galvanized coated gabion

Mesh hole : 80*100 mm

Mesh wire : 2.7 mm

Tie wire : 2.2 mm

Selvedge wire : 3.4 mm

Including binding wire for gabion box.



Product Characteristics:

(1) Economic. Just fill the stone into the gabion and seal it.

(2) Simple installation. No special technology needed.

(3) Weather proof under natural destroy, corrosion resistant.

(4) No collapse even under big scope of deforming.

(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.

(6) Good permeation can prevent the damage by hydrostatics.

(7) Less transport freight. It can be folded together for transport and further installation.



Material Galvanized low carbon steel wire
Weave Type Three-twist weave
Wire diameter Mesh wire:2.0mm-4.0mm
Selvedge wire:3.4mm, 3.8mm
Lacing wire:2.2mm
Mesh size 60*80mm, 80*100mm, 100*120mm
Hole Shape Hexagonal
Gabion size 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m,
Surface treatment HD galvanized, PVC coated
Color Green,Sliver
Characteristics Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported.
Usage Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.river gabion protection project
Packaging Packed in bundles or pallets or according to customer's requirements.

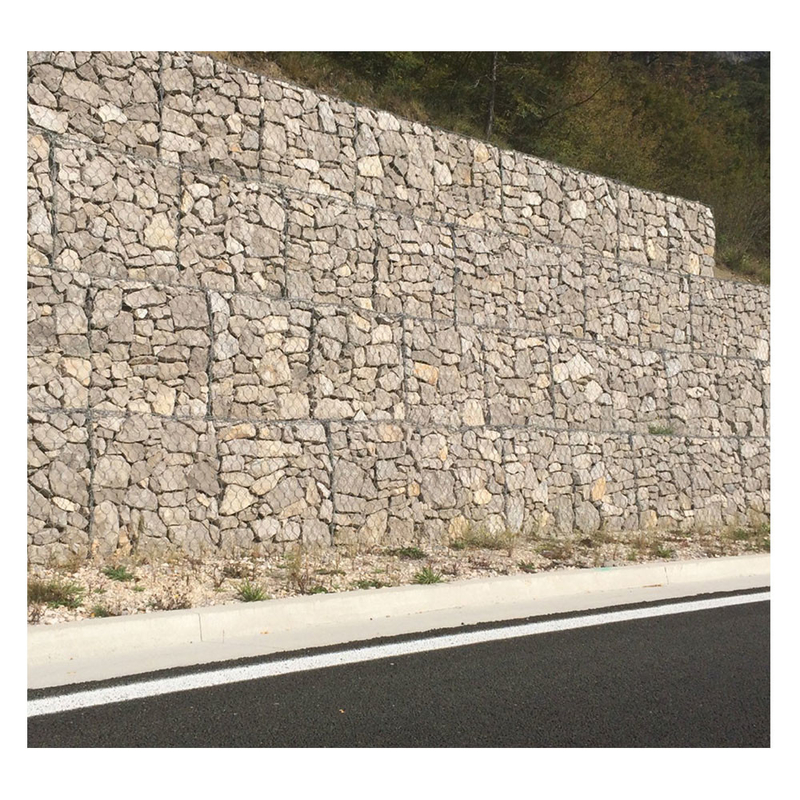

Application of Gabion Box Bank Retaining Wall

Gabion Box Bank Retaining Wall are strong and reliable offering engineers many benefits for managing earth and water. Typically gabion baskets are preferred on large scale civil, mining, industrial, road and rail projects.



Bridge protection

Gabions offer excellent protection as soil stabilizers around bridges, bridge piers and abutment slopes. Generally, the degree of the slope to be protected shall determine what structure type is best suited for a specific application. Slopes with an angle of 1:1 or steeper usually require standard gabion retaining wall protection. Slopes with an angle of 1:1.5 or less may use a combination of gabion baskets and/or mattresses for slope protection.

Gabion mattresses used in channel for erosion protection

The cracks between the rocks used to pack gabions are frequently filled with soil to encourage plant growth, which makes gabion retaining walls ideal for projects where beauty is a must, such as controlling soil erosion along waterways that run through residential areas that need to be both long lasting and visually pleasing.



Installation Process

1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh

2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels

3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped

4. Box gabion filled with graded stone by hand or with a shovel.

5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.

6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.



Gabion Basket Advantages

1. Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;

2. Anti-erosion ability, able to withstand the maximum flow rate of up to 6m / s .

3. This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.
