Product Details:
|
| Material: | Q235 | Surface Treatment: | Hot Dip Galvanized /PVC |
|---|---|---|---|
| Application: | Retaining Wall For Protection Gabion Basket | Advantages: | Easy Operation,Corrosion Resistance |
| Cage Size: | 1*1*1M, 1*1*2M,1*1*3M | Mesh Hole: | 7*9cm,6*8cm,8*10cm,10*12cm |
| Package: | Wooden Pallets | Ceritification: | CE ,ISO |
| High Light: | 3mm diameter gabion wire baskets,astm en standard gabion wire baskets,slope protection heavy duty gabion baskets |
||

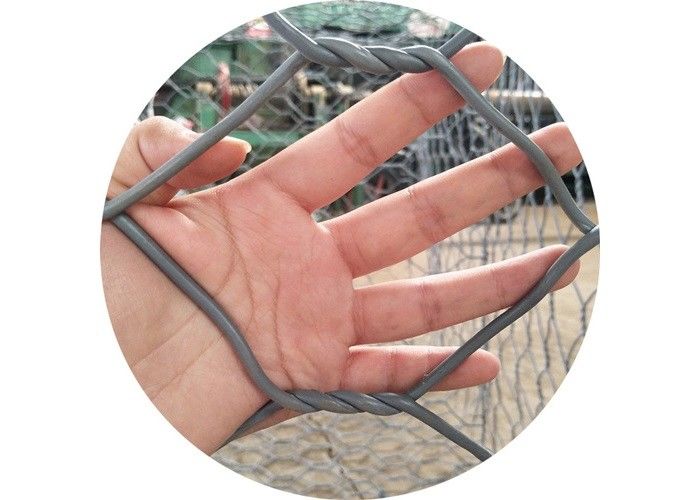

3mm Wire Diameter ASTM And EN Standard Gabion Wall Cages Basket Used For Slope Protection
Gabion basket The construction combination and stone filling steps can be summarized as follows: Each unit structure is combined before placement The structure of the pad combination is placed at the construction site, and the cell structures are connected by tie wire. Rock fill in structure Cover the structure and fasten it with tie wire.
Specification Sheet of Hex Gabion Basket :
| Gabion Baskets Specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m |
||
PS: People often use Hot Dipped Galvanized, Or Galfan Coated Gabion Wire Mesh, The using life can be 20 years, it is more suitable.
Production Process of Hex Gabion Wire Mesh Gabion Baskets Stone Boxes :
Raw Materials (Wire Rod) - Cold drawn / Galvanized / PVC Coated - Machine Weaving - Artificial Shear, Assembly - Product Inspection - Packaging and Transport
Gabion mesh/ gabion box material:
(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.
(3) coated galvanized steel wire: low carbon steel wire PVC coated.
(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm,
(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested
Gabion basket application:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
The construction combination and stone filling steps can be summarized as follows:
After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.
