Foldable Stone Filled Gabions Woven For River Project And Under Bridge

Basic Properties
Place of Origin: CN
Brand Name: SHUXIN
Certification: ISO 9001
Model Number: SX-GM01 Gabion Basket
Trading Properties
Minimum Order Quantity: 1000 square meters
Price: Negotiated
Standard Packaging: Folded then in Pallet Gabion Basket
Delivery Time: 8 working days after getting the depoist
Payment Terms: L/C, D/A, D/P, T/T, Western Union, ,Paypal
Supply Ability: 1000 square meter per week
Product Summary
Foldable Stone Filled Woven Gabion Basket Usd For River Project And Under Bridge Gabion Basket is Mainly used for river, bank slope, road slope slope protection structure. It can not only prevent riverbank from making water flow and storm and wave, but also achieve the natural convection and ...

Product Details

Highlight:

river project stone filled gabions

,

foldable woven stone filled gabions

,

under bridge woven gabion baskets

Material: Q195
Surface Treatment: Galfan Coated
Application: River Bank Project Gabion Basket
Advantages: Anti-Corrosion
Cage Size: 1*1*1M, 1*1*2M,
Mesh Hole: 7*9cm,6*8cm,8*10cm,10*12cm
Product Description

Foldable Stone Filled Woven Gabion Basket Usd For River Project And Under Bridge

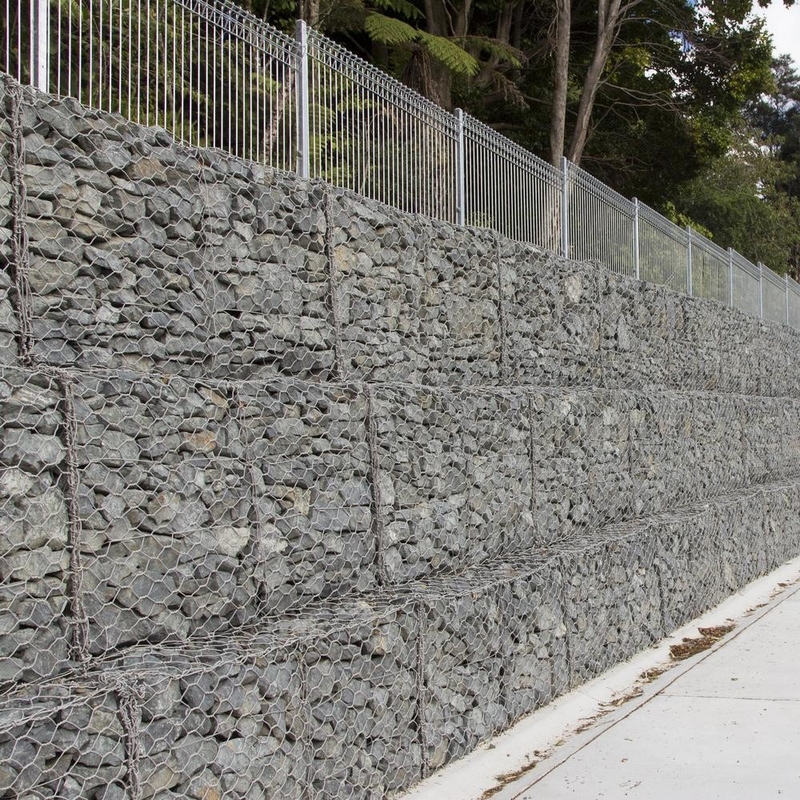

Gabion Basket is Mainly used for river, bank slope, road slope slope protection structure. It can not only prevent riverbank from making water flow and storm and wave, but also achieve the natural convection and exchange function between water bodies and the soil beneath the slope to achieve ecological balance.



Quick View of Foldable Stone Filled Woven Gabion Wire Mesh :

Gabion Baskets SpecificationsMesh hole modle
8x10cm6x8cmLength(m)Width(m)Height(m)Galvanized or PVC coatedGalvanized or PVC coated
Mesh diameterZincMesh diameterZinc2112.7mm>245g/m²2.0mm>215g/m²311Side wire diameterZincSide wire diameterZinc4113.4mm>265g/²2.7mm>245g/m²611Binding wire diameter of 2.7mBinding wire diameter of 2.0m

Foldable Stone Filled Gabions Woven For River Project And Under Bridge

Production Process of Foldable Stone Filled Woven Gabion Wire Mesh :

Raw Materials (Wire Rod) - Cold drawn / Galvanized / PVC Coated - Machine Weaving - Artificial Shear, Assembly - Product Inspection - Packaging and Transport



Specification Sheet of Foldable Stone Filled Woven Gabion Wire Mesh :

Wire Diameter Mesh Hole Size of Box Cage
2.0mm-4.0mm 60 * 80 mm

2M * 1M * 1M

3M * 1M * 1M

4M * 1M * 1M

2M * 1M * 0.5M

4M * 1M * 0.5M

80 * 100 mm
80 * 120 mm
100 *120 mm
120 * 150mm
90 * 110 mm
Surface Treatment: Galvanized, Hot Dipped Galvanized,Galfan Coated, PVC Coated

PS: People often use Hot Dipped Galvanized, Or Galfan Coated Gabion Wire Mesh, The using life can be        20 years, it is more suitable.

Foldable Stone Filled Gabions Woven For River Project And Under Bridge



Foldable Stone Filled Woven Gabion Wire Mesh



Advantages:

  • Economy, Just put the stone into the cage is okay to use.
  • It is simple to Operation, No need special skills.
  • Strong ability to resist the effects of natural damage, corrosion and weather.
  • It will not collapse with a wide range of deformation
  • It is good to Growing for Plant between the gap of Stone,together with the Environmental.
  • Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches
  • It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
  • Corrosion resistance: galvanized materials are not afraid of sea water.

Foldable Stone Filled Gabions Woven For River Project And Under Bridge
