Galvanized Gabion Iron Wire 2.7mm Hole 8*10cm Weave Gabion Boxes Basket Sale Canada
Gabion Box Bank Retaining Wall are strong and reliable offering engineers many benefits for managing earth and water. Typically gabion baskets are preferred on large scale civil, mining, industrial, road and rail projects.
Gabion Basket Retaining Wall Design can be widely used for erosion protection, roadway and bridge protection, gravity retaining wall, slope paving ,control and guide of water or flood and riverbank controlling.
| Product Name |
PVC Coated Weave Iron Wire Mesh Gabion Basket |
| Material |
Low Carbon Steel Wire, Q195,Q235 |
| Process |
Weave By Machine |
| Usage |
Slope support, foundation pit support |
| Features |
High corrosion resistance, high strength, ductility |
| Tensile Strength |
38kg/m2 |
| PVC Coated Weave Iron Wire Mesh Gabion Basket |
| Mesh wire |
2.0mm-4.0mm |
| Mesh size |
60*80mm,80*100mm,100*120mm |
| Selvedge wire |
thicker 0.5mm-1.0mm than mesh wire |
| Tie wire |
2.2mm,2.5mm |
| Gabion size |
1*1*1m,2*1*1m,3*1*1m,4*1*1m,6*2*0.3m |
| Surface treatment |
Hot dip galvanized, PVC coated |
Gabion basket Application:
Retaining wall
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Gabion Wall Cages Characteristics:
(1) Economic. Just fill the stone into the gabion and seal it.
(2) Simple installation. No special technology needed.
(3) Weather proof under natural destroy, corrosion resistant.
(4) No collapse even under big scope of deforming.
(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
(6) Good permeation can prevent the damage by hydrostatics.
(7) Less transport freight. It can be folded together for transport and further installation.

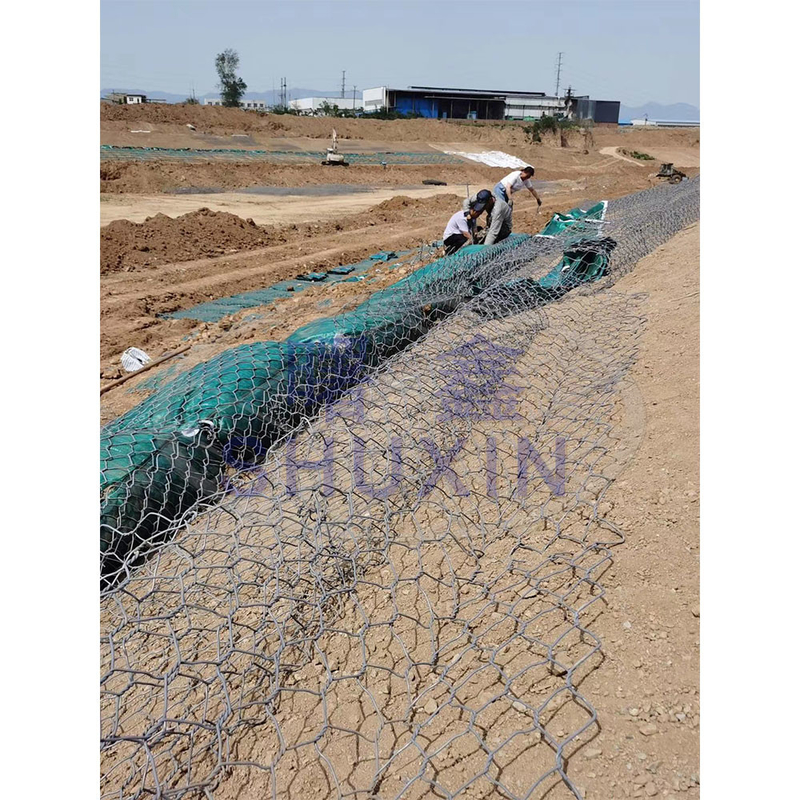

Gabion Cage Installation Process:
- 1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
- 2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
- 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
- 4. Box gabion filled with graded stone by hand or with a shovel.
- 5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
- 6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones
