Malaysia High Quality Heavy Galvanized Steel Gabion Basket For Retaining Wall

Malaysia High Quality Heavy Galvanized Steel Gabion Basket For Retaining Wall

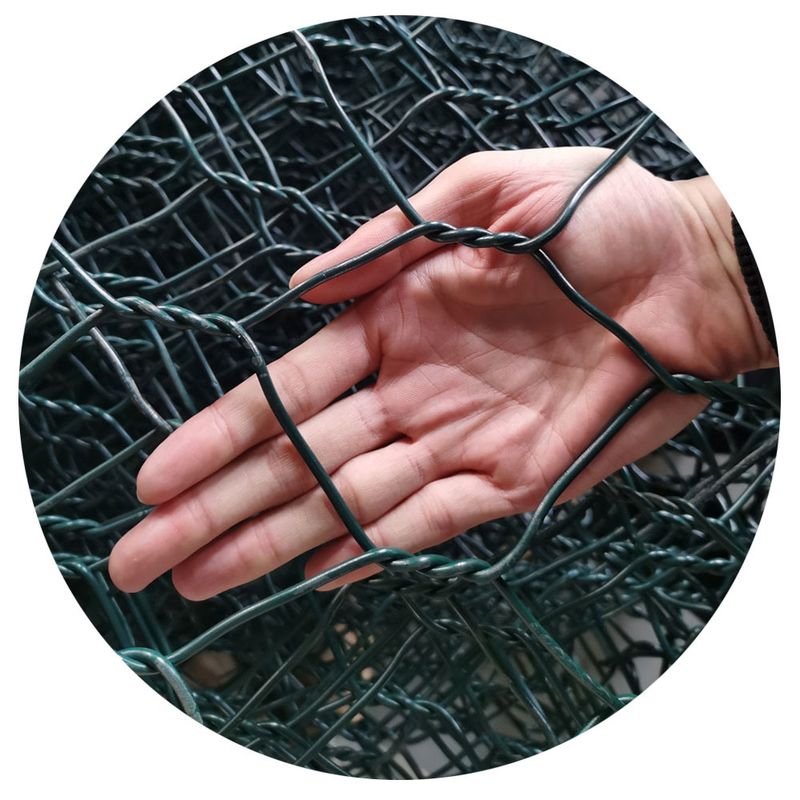

Gabion basket is woven from low-carbon steel wire treated with anti-corrosion technology. The mesh is shaped like a hexagon. The cage has a spacer per meter and is divided into independent units.

Gabion basket is an ecological grid structure. The stone cage net is mechanically woven from low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire. The box-shaped structure made by the net is the stone cage. The diameter of the low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire is not less than 38kg/m2, and the metal coating weight is generally higher than 245g/m2. The diameter of the edge wire of the gabion mesh is generally larger than the diameter of the wire. The length of the twisted part of the double wire shall not be less than 50mm. To ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.

Heavy galvanized coated

Mesh hole : 80*100 mm

Mesh wire : 2.7 mm

Tie wire : 2.2 mm

Selvedge wire : 3.4 mm

Including binding wire for gabion box.

We have 7 machines to produce gabion baskets, and daily production is 30,000 square meters. Have a lot of stock

We accept Customized Hexagonal Slope Protection Rockfall Netting, Welcome to Inquiry:

Quick View of Galvanized Steel Gabion Basket :

Specification Sheet of Galvanized Steel Gabion Basket :

Application:

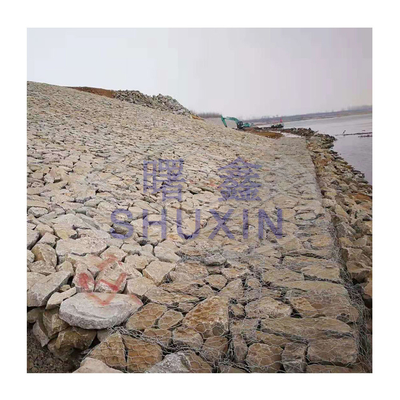

Galvanized Steel Gabion Basket Mainly used for river, bank slope, road slope slope protection structure. It can not only prevent riverbank from making water flow and storm and wave, but also achieve the natural convection and exchange function between water bodies and the soil beneath the slope to achieve ecological balance.

Advantages:

• Economy, Just put the stone into the cage is okay to use.
• It is simple to Operation, No need special skills.
• Strong ability to resist the effects of natural damage, corrosion and weather.
• It will not collapse with a wide range of deformation
• It is good to Growing for Plant between the gap of Stone,together with the Environmental.
• Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches
• It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
• Corrosion resistance: galvanized materials are not afraid of sea water.
