KN Tank Barrier Wire Mesh Anti Tank Track Wrapping Net Reduce Tank Mobility In Ukraine
Barely noticeable obstacle 10х10х1.4m is designed to provide effective obstruction of movement and hinder the advancement of state border violators. It helps to create favorable conditions for blocking and detention of offenders by border patrols and reserves, as well as
restricts the impact of animals and people on signaling and control equipment.
Safe and Effective Functionality
-
Effective Obstruction: Despite its inconspicuous nature, this obstacle serves as a reliable barrier, providing the necessary protection and separation in areas where safety is a priority.
-
Smooth Edges and Surfaces: Designed with safety in mind, it features smooth edges to prevent injuries, making it suitable for public spaces, including those frequented by children and the elderly.
Classification:
Wave type wire mesh, 10 meters long, 10 meters wide, 1.4m high, suitable for laying on the ground or grass.
Wheel-shaped wire mesh, with 10 to 20 coil into a cylindrical wire mesh piled up, with a stronger stability and protection.
| Product name |
Anti-Tank Barrier Netting |
| Size |
10*10*1.3 M |
| Brand name |
Hebei KN |
| Weight |
24KG each pc |
| Material |
Annealed steel wire |

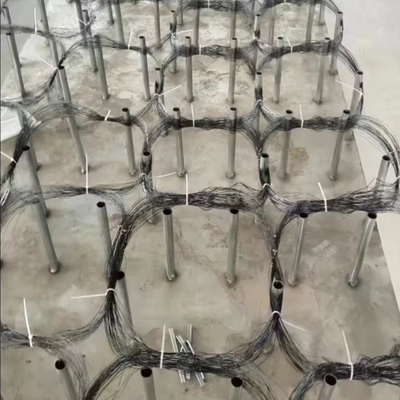

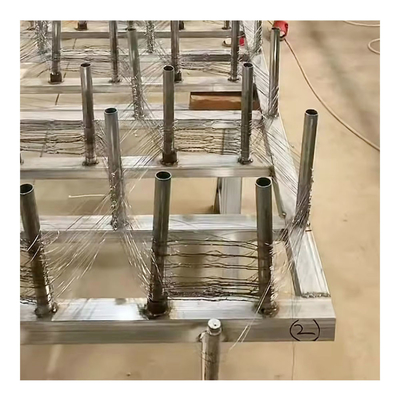

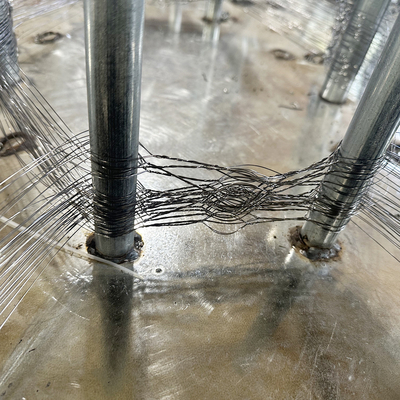

Production process
Secure the start of the 0.9 mm wire to one of the tubes at the start of a row.Lay a row of ramps in the correct direction, then return in the opposite direction following the pattern of laying the ramps to close the row of ramps.
Installation
Secure the start of the 0.9 mm wire to one of the tubes at the start of a row.Lay a row of ramps in the correct direction, then return in the opposite direction following the pattern of laying the ramps to close the row of ramps. Rewind the start of the wire secured to the tube (secured by winding) onto the last turn of the closed ramp. Do not cut the wire at the end of the row! Each row is braided with a single wire along all 20 layers!
1.Stretch two rows of coils to their full length
2.Lay out each row outward
3.Two rows should make four
4.To fix the coil with nails, you need to fix it with a thick coil with nails
5.Hold on to the propeller and move the wire sufficiently as shown in the picture.
6.By this move and stretch the bottom it will shows thick lines, thin lines will extend upward,after fix the outermost layer of coils.
What happens when you hit an inconspicuous obstacle?
If a person tries to go through into the territory, he gets confused in it. There is no way to get out of the confusion without outside help. Therefore, the offender remains safely waiting for the guard on the spot. When an armored vehicle or tank passes, the vehicle wraps around the wheels and turns into a pile of metal on the chassis, preventing it from moving further. And it’s difficult to remove such a gift from the wheels.
Invisible wire barrier is a kind of wire mesh barrier used in Ukraine military protection fence, in Ukrainian language, it called: (МПП, Путанка, МПП Плутанка, малопомітна перешкода, малопомітна дротяна сітка), it is a three-dimensional barrier made of rings made of high-carbon wire. This Wire is very thinn, wire thickness from 0.5mm to 0.9mm, so it almost invisible, people called it Low Visible Wire Mesh Barrier, mainly prevent tank moving forward.
10x10x1.1-1.4m size: Common Technical Data of Low Visible Wire Barrier:
Weight of the set: KG Up to 30
Overall dimensions in folded form: -------------------
Length 1200
Width 600
Height 120
Overall dimensions in expanded form: -------------------
Area 10x10
Height: 1.1 - 1.4m
Wire diameter: 0.5 - 0.9mm
The set includes: 40 steel rings, 40 steel pegs
warranty 3 years
