High Density Flat Type Single Razor Concertina Razor Wire for Secure Fencing

Basic Properties
Place of Origin: HB
Brand Name: KN
Certification: ISO, PVOC,SASO,FORM A, FORM E,CO
Model Number: BTO-22, CBT-60, CBT-65
Trading Properties
Minimum Order Quantity: 28 Tons
Price: USD 80~150/SET
Standard Packaging: Wooden Box and Wooden Pallet
Delivery Time: 7 Working Days
Payment Terms: T/T,Western Union,,Trade Assurance
Supply Ability: 28T per day
Product Summary
High Density Flat Type Hot Dipped Galvanized BTO-22 Type Concertina Razor Barbed Wire Mesh Fences High Density Flat Type Hot Dipped Galvanized BTO-22 Type Concertina Razor Barbed Wire Mesh Fences provide superior security with sharp, angular blades (0.1mm tip sharpness) that create an effective ...

Product Details

Highlight:

High Density Concertina Razor Wire

,

Flat Type Razor Barbed Wire

,

Single Razor Barbed Wire Mesh

Material: Stainless Steel Sheet, HDP Galvanized Sheet
Surface Treatment: Hot Dipped Galvanized, Stainless Stell
Using Life: About 10 Years
Application: Lawn Railways Expressways Farm Prison Etc
Razor Type: Single Razor
Sample: Free
Type: BTO-22, BTO-16, BTO-18, CBT-65, CBT-30
Package: Wooden Pallet, Water Proof Paper
Product Description
High Density Flat Type Hot Dipped Galvanized BTO-22 Type Concertina Razor Barbed Wire Mesh Fences
High Density Flat Type Hot Dipped Galvanized BTO-22 Type Concertina Razor Barbed Wire Mesh Fences provide superior security with sharp, angular blades (0.1mm tip sharpness) that create an effective physical barrier against intrusion. This design eliminates risks of forced climbing or cutting common with conventional barbed wire.
Key Advantages
  • Enhanced Security: Multi-dimensional protection with sharp blades that deter unauthorized access
  • Quick Installation: Supports tool-free splicing and modular assembly, reducing deployment time by 30%
  • Exceptional Durability: Hot-dipped galvanized coating (≥85μm zinc layer) resists UV, humidity, chemicals, and extreme temperatures (-40℃ to 80℃)
  • Long-term Performance: Maintains structural integrity in demanding environments including military, border, and industrial applications

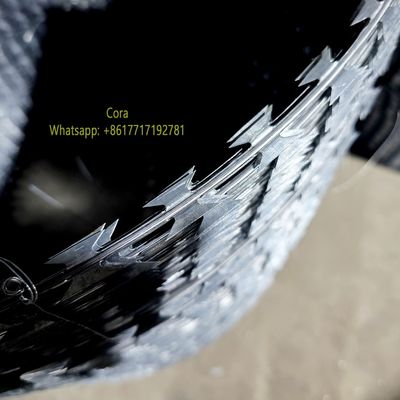

Close-up of BTO-22 Type Concertina Razor Barbed Wire showing sharp blades
Razor wire features a central high-tensile strength wire with steel tape punched into barbed shapes, cold-crimped tightly to the wire. Flat barbed tape is similar but lacks central reinforcement.
Product Specifications
Reference Number Thickness (mm) Wire Dia (mm) Bard Length (mm) Bard Width (mm) Bard Distance (mm)
BTO-100.5±0.052.5±0.0510±113±16±1
BTO-120.5±0.052.5±0.0512±115±126±1
BTO-160.5±0.052.5-2.816±119±130±1
BTO-180.5±0.052.5±0.0518±115±133±1
BTO-220.5±0.052.5±0.0522±115±134±1
BTO-280.5±0.052.5±0.0528±115±153+1
BTO-300.5±0.052.5±0.0530±121±154±1
CBT-600.5±0.052.5±0.0560±132±1100±1
CBT-650.5±0.052.5±0.0565±121±1100±2
Razor Barbed Wire Coil and Unit Loops
Outside Diameter No.of Loops Standard Length Per Coil Type Notes
450mm338MCBT-65Single coil
500mm4110MCBT-65Single coil
700mm4110MCBT-65Single coil
960mm5313MCBT-65Single coil
500mm10216MBTO-10.15.22Cross type
600mm8614MBTO-10.15.22Cross type
700mm7212MBTO-10.15.22Cross type
800mm6410MBTO-10.15.22Cross type
960mm529MBTO-10.15.22Cross type
110cm10020 MBTO-16,22Cross type
Manufacturing & Packaging

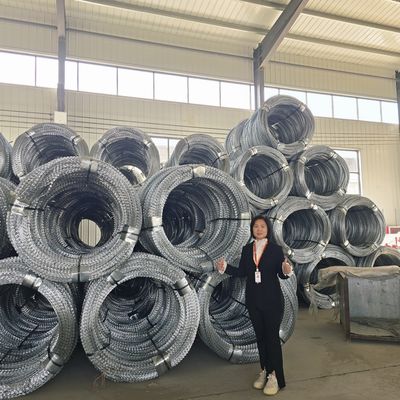

Workshop No.3 producing BTO-16 razor wire
Our No.3 workshop produces BTO-16 razor wire, packed in wooden boxes with a daily output of 1/40HQ.
Packing Options
  • Sheets packed by pallet or strapped into bundles
  • Sheets in cartons or wooden cases
  • Rolls in water-proof paper + plastic film
Packaged razor wire ready for shipment Close-up of razor wire packaging
Product Details
Technical diagram of razor wire construction Detailed measurements of razor wire components Cross-section view of razor wire
