Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence

Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence

Large Image :  Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence

Product Details:
Place of Origin: HB
Brand Name: KN
Certification: ISO, PVOC,SASO,FORM A, FORM E,CO
Model Number: BTO-22, CBT-60, CBT-65
Payment & Shipping Terms:
Minimum Order Quantity: 28 Tons
Price: USD 80~150/SET
Packaging Details: Wooden Box and Wooden Pallet
Delivery Time: 7 Working Days
Payment Terms: T/T,Western Union,MoneyGram,Trade Assurance
Supply Ability: 28T per day
Detailed Product Description
Material: Stainless Steel Sheet, HDP Galvanized Sheet Surface Treatment: Hot Dipped Galvanized, Stainless Stell
Using Life: About 10 Years Application: Lawn Railways Expressways Farm Prison Etc
Razor Type: Single Razor Sample: Free
Type: BTO-22, BTO-16, BTO-18, CBT-65, CBT-30 Package: Wooden Pallet, Water Proof Paper
Highlight:

stainless steel razor barbed wire

,

cross type security razor wire

,

BTO-22 razor wire fence

Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence


Razor wire (also named barbed tape or Blade Wire, Barbed Wire) is used to protect boundaries or perimeters by preventing or dissuading passage by humans.


Razor wire's points are made very sharp and meant for ripping clothes and flesh as it follows the curves in the body when a person tries to cross over them.


Razor wire acts both as a physical and psychological deterrent.


Razor wire/barbed tape is prohibited in some countries due to its potentially dangerous nature.

Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence 0

Types of Razor Wire:
Razor Wire Fence
Concertina Razor Coils
Razor Wire Flat Wrap Coils
Welded Razor Wire
Razor Ribbon
Razor Wire Mobile Security Barrier
Galvanized Razor Wire
Straight Line Razor Wire Fence
Stainless Steel Razor Wire
Razor Wire Concertina
Double Concertina Razor Wire


Specification:

Reference Number

Thickness

(mm)

Wire Dia

(mm)

Bard Length

(mm)

Bard Width

(mm)

Bard Distance

(mm)

BTO-10 0.5±0.05 2.5±0.05 10±1 13± 16±1
BTO-12 0.5±0.05 2.5±0.05 12±1 15±1 26±1
BTO-16 0.5±0.05 2.5-2.8 16±1 19±1 30±1
BTO-18 0.5±0.05 2.5±0.05 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.05 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5±0.05 28±1 15±1 53+1
BTO-30 0.5±0.05 2.5±0.05 30±1 21±1 54±1
CBT-60 0.5±0.05 2.5±0.05 60±1 32±1 100±1
CBT-65 0.5±0.05 2.5±0.05 65±1 21±1 100±2


Razor Barbed Wire Coil and Unit Loops

Outside Diameter No.of Loops Standard Length Per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type


Details of Razor Wire:

Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence 1

Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence 2

Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence 3


Workshop:

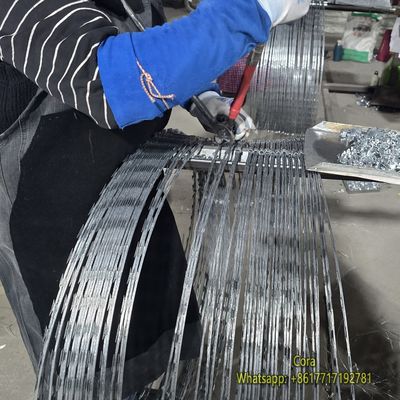

Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence 4

Above is our No.3 workshop, producing BTO-16, Packed with wooden box. daily output is 1/40HQ.


Packing & Delivery:


1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.

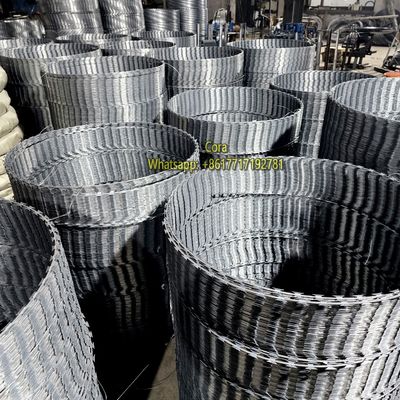

Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence 5

Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence 6

Razor Wire and Perimeter Security:
Detection at the perimeter enables security personnel to quickly assess and respond to security events while intruders remain delayed or caught up in the razor wire. Any attempt to cut, bypass or disturb the razor wire is immediately detected.

Stainless Steel Cross Type Security Barbed BTO-22 Razor Wire Protection Fence 7
