Factory Wholesale Galvanized PVC Stainless Steel Concertina Razor Barbed Wire BTO-22 BTO-60 Razor Barbed Wire Rolls

Basic Properties
Place of Origin: Hebei,China
Brand Name: KN
Certification: ISO CE
Model Number: KN-R06
Trading Properties
Minimum Order Quantity: 100 rolls
Price: USD12.68-USD32.98
Standard Packaging: Customized
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs/week
Product Summary
Factory Wholesale Galvanized PVC Stainless Steel Concertina Razor Barbed Wire BTO-22 BTO-60 Razor Barbed Wire Rolls Product description Blade barbed wire is a new type of protective net. Blade barbed wire has beautiful, economical and practical, good anti-resistance effect, convenient construction ...

Product Details

Highlight:

galvanized PVC razor barbed wire

,

stainless steel concertina barbed wire

,

BTO-22 razor barbed wire rolls

Product Description

Factory Wholesale Galvanized PVC Stainless Steel Concertina Razor Barbed Wire BTO-22 BTO-60 Razor Barbed Wire Rolls



Product description

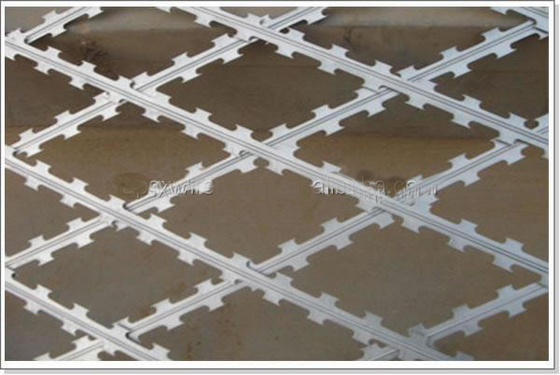

Blade barbed wire is a new type of protective net. Blade barbed wire has beautiful, economical and practical, good
anti-resistance effect, convenient construction and other excellent characteristics, at present, blade barbed wire has been widely used in many countries of industrial and mining enterprises, garden apartments, buildings and other security facilities.
Blade barbed wire is made of hot-dip galvanized steel sheet or stainless steel sheet stamping out sharp blade, high tension galvanized steel wire or stainless steel wire as a core wire combination of the resistance equipment. Because the gill net is unique in shape and is not easy to touch, it can achieve a good protective isolation effect. The main materials of blade wire products are galvanized sheet and stainless steel sheet
Factory Wholesale Galvanized PVC Stainless Steel Concertina Razor Barbed Wire BTO-22 BTO-60 Razor Barbed Wire RollsFactory Wholesale Galvanized PVC Stainless Steel Concertina Razor Barbed Wire BTO-22 BTO-60 Razor Barbed Wire Rolls

Product Details
Model
Thickness
Wire dia
Barb Length
Barbed Width
Barb Spacing
BTO-10
0.5+/-0.05 mm
2.5+/-0.1mm
10+/-1mm
13+/-1mm
26+/-1mm
BTO-12
0.5+/-0.05 mm
2.5+/-0.1mm
12+/-1mm
15+/-1mm
26+/-1mm
BTO-18
0.5+/-0.05 mm
2.5+/-0.1mm
18+/-1mm
15+/-1mm
38+/-1mm
BTO-22
0.5+/-0.05 mm
2.5+/-0.1mm
22+/-1mm
15+/-1mm
38+/-1mm
BTO-28
0.5+/-0.05 mm
2.5+/-0.1mm
28+/-1mm
15+/-1mm
53+/-1mm
BTO-30
0.5+/-0.05 mm
2.5+/-0.1mm
30+/-1mm
21+/-1mm
54+/-1mm
CBT-60
0.6+/-0.05 mm
2.5+/-0.1mm
60+/-2mm
32+/-1mm
102+/-1mm
CBT-65
0.3+/-0.05 mm
2.5+/-0.1mm
65+/-2mm
21+/-1mm
102+/-1mm
Outside diameter
No. of loops
The utmost effective length
Type
Notes
450 mm
33
7 - 8 M
CBT 60.65
Single coil
500 mm
56
12 - 13 M
CBT 60.65
Single coil
700 mm
56
13 - 14 M
CBT 60.65
Single coil
960 mm
56
14 - 15 M
CBT 60.65
Single coil
450 mm
56
8 - 9 M (3 CLIPS)
BTO - 10.12.18.22.28.30
Cross type
500 mm
56
9 - 10 M (3 CLIPS)
BTO - 10.12.18.22.28.30
Cross type
600 mm
56
10 - 11 M (3 CLIPS)
BTO - 10.12.18.22.28.30
Cross type
600 mm
56
8 - 10 M (5 CLIPS)
BTO - 10.12.18.22.28.30
Cross type




Factory Wholesale Galvanized PVC Stainless Steel Concertina Razor Barbed Wire BTO-22 BTO-60 Razor Barbed Wire RollsFactory Wholesale Galvanized PVC Stainless Steel Concertina Razor Barbed Wire BTO-22 BTO-60 Razor Barbed Wire Rolls

Applications

Factory Wholesale Galvanized PVC Stainless Steel Concertina Razor Barbed Wire BTO-22 BTO-60 Razor Barbed Wire RollsFactory Wholesale Galvanized PVC Stainless Steel Concertina Razor Barbed Wire BTO-22 BTO-60 Razor Barbed Wire RollsFactory Wholesale Galvanized PVC Stainless Steel Concertina Razor Barbed Wire BTO-22 BTO-60 Razor Barbed Wire Rolls



More details, Welcome inquiry me !
