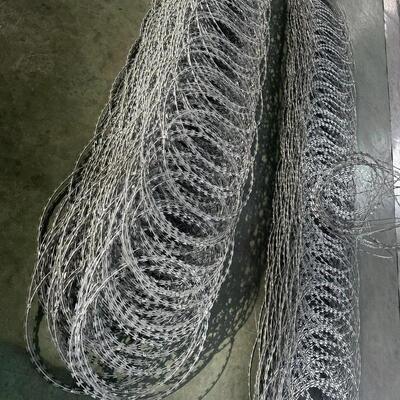

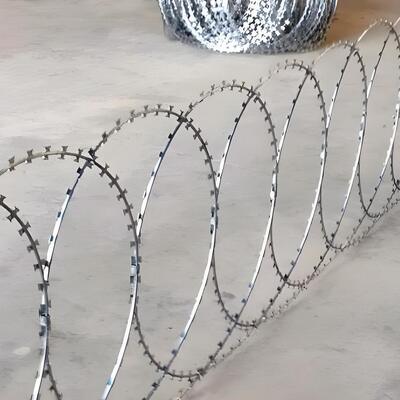

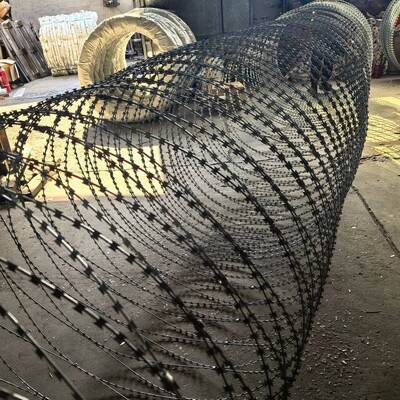

High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall

High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall
High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall
video play

Large Image :  High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall

Product Details:
Place of Origin: HB
Brand Name: KN
Certification: ISO, PVOC,SASO,FORM A, FORM E,CO
Model Number: BTO-22, CBT-60, CBT-65, BTO-16, CBT-30
Payment & Shipping Terms:
Minimum Order Quantity: 28 Tons
Price: Negotiated
Packaging Details: Waterproof Paper + woven cloth
Delivery Time: 7 Working Days
Payment Terms: T/T,Western Union,MoneyGram,Trade Assurance
Supply Ability: 28T per day
Contact Now
Detailed Product Description
Material: Steel Wire, HDP Galvanized Sheet Surface Treatment: Hot Dipped Galvanized, Stainless Stell
Using Life: Above 10 Years Application: Border Protection Fence, Prision Fence
Razor Type: Single Razor, Cross Type, Flat Type Sample: Free
Type: BTO-22, BTO-16, BTO-18, CBT-65, CBT-30 Package: Wooden Pallet, Water Proof Paper
Outer Diameter: 45-110mm Stock: 22 Containers
Highlight:

hot dipped galvanized razor barbed wire

,

BTO-22 concertina security fence

,

high security razor barbed wire wall

High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall



This galvanized razor wire is equipped with dedicated galvanized mounting clips.

Fabricated from premium hot-dip galvanized steel or stainless steel plate, it is a modern perimeter security fencing solution with outstanding defense capability and robust fencing strength.



Specification
Razor Wire Size Specifications
Peference Model
Thickness (mm)
Wire Diameter (mm)
Barb Length
(mm)
Bard Width
(mm)
Bard Spacing
(mm)
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-15
0.5±0.05
2.5±0.1
18±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
02±1
15±1
34±1
BTO-28
0.5±0.05
2.5±0.1
28
15
45±1
CBT-30
0.5±0.05
2.5±0.1
30
18
45±1
CBT-60
0.6±0.05
2.5±0.1
60±2
32±1
100±1
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±1
Outside Diameter
No. of Loops
Standard Length per Coil
Razor Type
Notes
450mm
33
7M-8M
CBT-60, 65
Single Coil
500mm
56
12M-13M
CBT-60, 65
Single Coil
700mm
56
13M-14M
CBT-60, 65
Single Coil
960mm
56
14M-15M
CBT-60, 65
Single Coil
450mm
56
8M-9M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
500mm
56
9M-10M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
10M-11M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
8M-10M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
700mm
56
10M-12M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
800mm
56
11M-13M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
900mm
56
12M-14M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
960mm
56
13M-15M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
980mm
56
14M-16M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall 0
  • Rapid Easy Installation for Temporary Needs: Adopting a modular cross-type blade structure paired with lightweight galvanized steel brackets, the fence requires no complex welding or concrete foundation. A 2-person team can complete the setup of a 10-meter section in just 30 minutes—equipped with pre-drilled holes and quick-connect fasteners, it can be assembled directly on flat ground, gravel, or grassland. The flexible connection design allows on-site adjustment of fence length and height (customizable from 1.2m to 2.5m) to adapt to irregular borders or factory compound contours, significantly reducing deployment time for emergency security scenarios.
  • 100% Recyclable & Cost-Saving: Constructed from high-purity low-carbon steel (recyclable rate ≥95%), the entire fence—including cross-type razor blades, brackets, and support poles—can be fully disassembled and recycled after use, avoiding waste of resources and reducing environmental impact. Compared with disposable temporary barriers, it can be reused 5-8 times under normal maintenance, lowering long-term security costs for projects with repeated temporary security demands (such as infrastructure construction, large-scale events, or temporary border checkpoints).
  • Hot-Dipped Galvanization for Durable Protection: Every component of the fence undergoes a strict hot-dip galvanization process (zinc coating thickness 60-100μm, compliant with EN ISO 1461 standard), forming a dense zinc layer that effectively resists rust, corrosion, and chemical erosion from industrial pollutants. Even in harsh environments such as coastal salt spray, industrial workshops with high humidity, or cold border regions with frequent freezing and thawing, it maintains structural integrity without paint peeling, ensuring a service life of up to 15 years for semi-permanent use and stable performance during repeated temporary deployments.



Types of Razor Wire:
Razor Wire Fence
Concertina Razor Coils
Razor Wire Flat Wrap Coils
Welded Razor Wire
Razor Ribbon
Razor Wire Mobile Security Barrier
Galvanized Razor Wire
Straight Line Razor Wire Fence
Stainless Steel Razor Wire
Razor Wire Concertina
Double Concertina Razor Wire



Details of Razor Wire:

High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall 1

High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall 2

High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall 3



Workshop:

High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall 4

Above is our No.3 workshop, producing BTO-16, Packed with wooden box. daily output is 1/40HQ.



Packing & Delivery:



1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.

High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall 5

High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall 6

Razor Wire and Perimeter Security:
Detection at the perimeter enables security personnel to quickly assess and respond to security events while intruders remain delayed or caught up in the razor wire. Any attempt to cut, bypass or disturb the razor wire is immediately detected.

High Security Fence Hot Dipped Galvanized BTO-22 Concertina Razor Barbed Wire Wall 7
