Galfan Coated Heavy Duty Blast Resistant Defensive Barrier Gabion Blast Wall

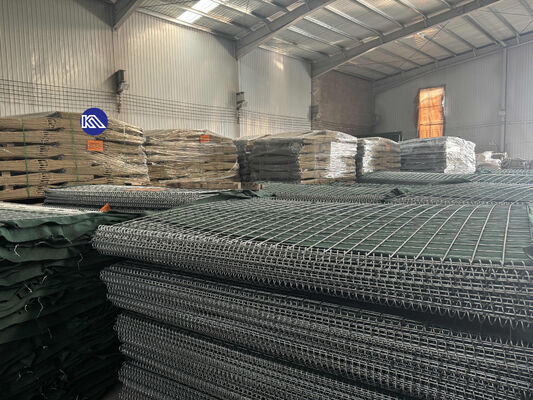

Large Image : Galfan Coated Heavy Duty Blast Resistant Defensive Barrier Gabion Blast Wall

Product Details:

Place of Origin:	China, Hebei Provence
Brand Name:	KN
Certification:	ISO CE
Model Number:	KN02

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	USD 28.98-88.98
Packaging Details:	Customized
Delivery Time:	7-15 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs/ month

Contact Now

Detailed Product Description

Height:	54" (1.37m)	Width:	42" (1.06m)
Length:	32'9" (10m)	Weight:	5+4=9 Cells
Material:	Galfan Coated	Type:	Welded Wire Mesh
Function:	Blast Resistant	Structure:	Multi-cellular System

Defensive Barrier Galfan Coated Heavy Duty Blast Resistant Welded Wire Mesh Protection Stand Bag Cage

Product Overview

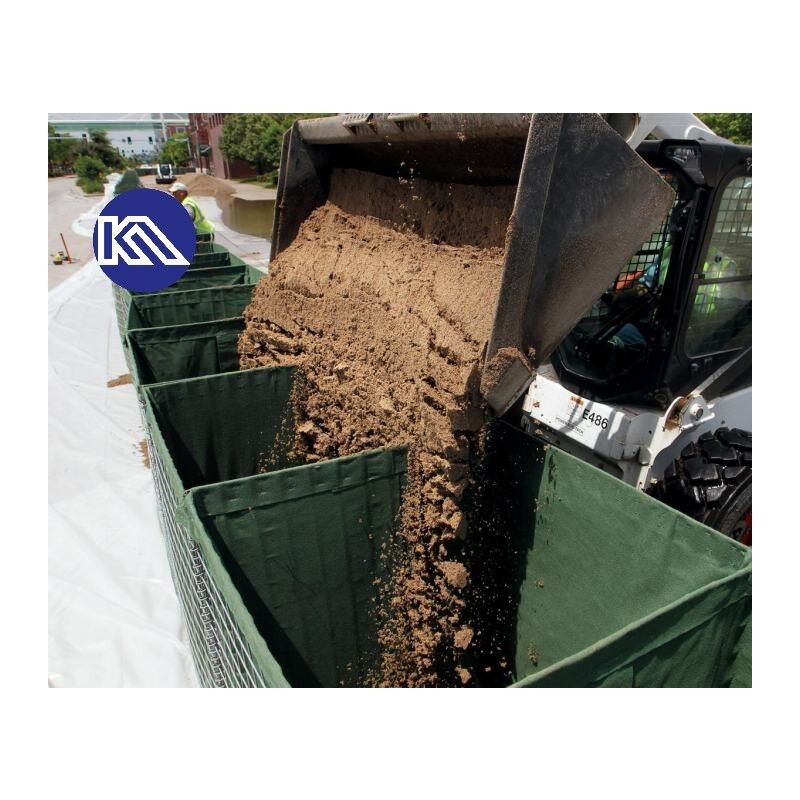

Defensive barriers, also known as Gabion Blast Wall, Defensive Barrier, or Defensive Bastion, are prefabricated multi-cellular systems made of Galfan/hot-dip galvanized welded gabion, lined with non-woven geotextiles. These barriers can be filled with sand, earth, cement, or stones and are widely used in flood control applications.

Product Specifications

MODEL	HEIGHT	WIDTH	LENGTH	WEIGHT
KN-1	54" (1.37m)	42" (1.06m)	32'9" (10m)	5+4=9 cells
KN-2	24" (0.61m)	24" (0.61m)	4' (1.22m)	2 cells
KN-3	39" (1.0m)	39" (1.0m)	32'9" (10m)	5+5=10 cells
KN-4	39" (1.0m)	60" (1.52m)	32'9" (10m)	5+5=10 cells
KN-5	24" (0.61m)	24" (0.61m)	10' (3.05m)	5 cells
KN-6	66" (1.68m)	24" (0.61m)	10' (3.05m)	5 cells
KN-7	87" (2.21m)	84" (2.13m)	91' (27.74m)	5+4+4=13 cells
KN-8	54" (1.37m)	48" (1.22m)	32'9" (10m)	5+4=9 cells
KN-9	39" (1.0m)	30" (0.76m)	30' (9.14m)	6+6=12 cells
KN-10	87" (2.21m)	60" (1.52m)	100' (30.5m)	5+5+5+5=20 cells
KN-11	48" (1.22m)	12" (0.30m)	4' (1.22m)	2 cells
KN-12	84" (2.13m)	42" (1.06m)	108' (33m)	5+5+5+5+5+5=30 cells
KN-19	108" (2.74m)	42" (1.06m)	10'5" (3.18m)	6 cells

Applications

Environmental & Flood Barriers: Reliable, easy-to-deploy, and robust solutions for emergency flood protection or long-term wetland restoration
Defensive Barriers: Secure, reliable protection for military and civilian personnel in dangerous environments
Protective Barriers: Workforce protection with accommodation bunkers that can protect up to eight people
Rockface Applications: Transforms effective walls into aesthetically pleasing structures ideal for customer-facing perimeter security

Defensive Barrier Walls have the ability to resist explosion shock waves and limit destructive effects within a specific range. Compared to concrete explosion-proof walls, they offer advantages including light weight, easy loading/unloading, and recyclable/reusable construction.
