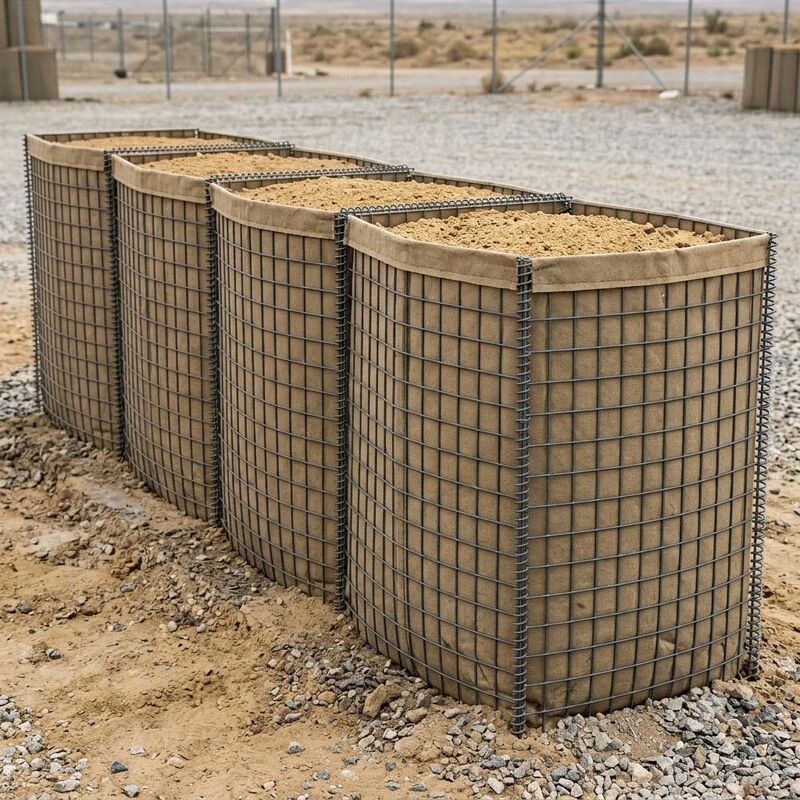

Rapid Deployment Sand Filled Barriers | Secure Bastion Wall
High-Security Military & Flood Defense Bastion Barriers
When time is short and security is paramount, the Rapid Deployment Sand Filled Barriers (Secure Bastion Wall) provide an impenetrable line of defense. Engineered for rapid installation and maximum structural integrity, these geotextile-lined, wire-mesh defense bastions are the industry standard for force protection, military fortification, and emergency flood control.
Whether you need to secure a perimeter against ballistic threats or erect a temporary flood wall, our Secure Bastion Wall system delivers unmatched reliability and speed.
Sand Filled Barriers Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Sand Filled Barriers Specification
| Model |
Height |
Width |
Length |
Internal Cells |
| SX-1(Mil 1) |
54”(1.37m) |
42”(1.06m) |
32’9”(10m) |
5+4=9 cells |
| SX-2(Mil 2) |
24”(0.61m) |
24”(0.61m) |
4’(1.22m) |
2 cells |
| SX-3(Mil 3) |
39”(1.0m) |
39”(1.0m) |
32’9”(10m) |
5+5=10 cells |
| SX-4(Mil 4) |
39”(1.0m) |
60”(1.52m) |
32’9”(10m) |
5+5=10 cells |
| SX-5(Mil 5) |
24”(0.61m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| SX-6(Mil 6) |
66”(1.68m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| SX-7(Mil 7) |
87”(2.21m) |
84”(2.13m) |
91’(27.74m) |
5+4+4=13 cells |
| SX-8(Mil 8) |
54”(1.37m) |
48”(1.22m) |
32’9”(10m) |
5+4=9 cells |
| SX-9(Mil 9) |
39”(1.0m) |
30”(0.76m) |
30’(9.14m) |
6+6=12 cells |
| SX-10(Mil 10) |
87”(2.21m) |
60”(1.52m) |
100’(30.5m) |
5+5+5+5+5=20 cells |
| SX-11(Mil 11) |
48”(1.22m) |
12”(0.30m) |
4’(1.22m) |
2 cells |
| SX-12(Mil 12) |
84”(2.13m) |
42”(1.06m) |
108’(33m) |
5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) |
108”(2.74m) |
42”(1.06m) |
10’5”(3.18m) |
6 cells |
Primary Applications
-
Military Fortifications & Perimeter Security: Ideal for constructing temporary or permanent military bases, ammunition bunkers, forward operating bases (FOBs), and vehicle checkpoints to mitigate blast and ballistic threats.
-
Emergency Flood Control & Management: Rapidly deploys along riverbanks, coastlines, and urban areas to create robust flood walls, preventing heavy water ingress and controlling erosion.
-
Critical Infrastructure Protection: Safeguards power plants, government buildings, and transport hubs from natural disasters or security breaches.
-
Storm Surge & Coastal Defense: Acts as a heavy-duty barrier against rising tides and severe weather conditions.
Key Features & Benefits
-
Rapid Deployment & Easy Assembly: Delivered flat-packed on pallets, these barriers can be unfolded, positioned, and filled with sand, earth, or gravel in a fraction of the time it takes to build traditional sandbag walls.
-
Heavy-Duty Construction: Fabricated from high-tensile, hot-dipped galvanized steel wire mesh and reinforced with a heavy-duty, UV-resistant non-woven geotextile liner.
-
Modular & Flexible Design: The interlocking system allows you to connect multiple units seamlessly, creating a continuous, custom-shaped secure bastion wall to fit any terrain.
-
Multi-Hazard Protection: Proven to absorb explosive blasts, stop high-velocity projectiles, and withstand immense hydrostatic pressure during severe flooding events.
Sand Filled Barriers Features
1.Galfan coated steel mesh frame
2. The integrated unit provides internal structural integrity.
3.Excellent strength and structural integrity
4.High tensile and impact resistance
5. Improve transportation efficiency and speed
Packaging:
The welded gabion mesh are collapsed when shipping.Usually in nude, or in pallet then wrapped with plastic film.Besides, customers' request are also available.
