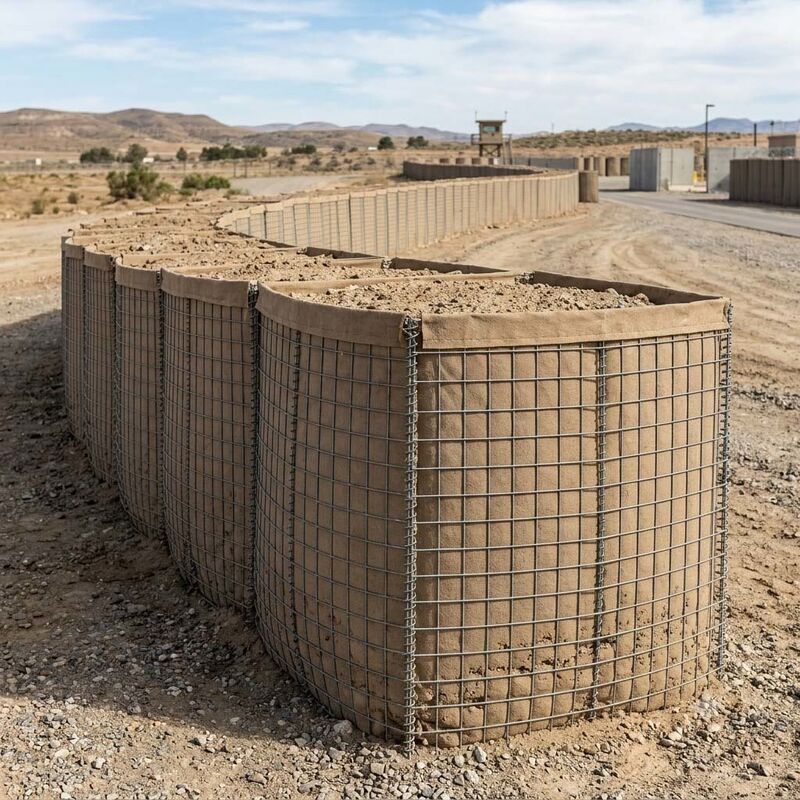

High Security Sand Filled Barriers For Perimeter Protection
Comprehensive Perimeter Security Solutions for Critical Infrastructure
When it comes to safeguarding high-risk zones, compromise is not an option. Our High Security Sand Filled Barriers provide an uncompromising, military-grade defense system designed for superior perimeter protection. Engineered to withstand extreme impacts, blast forces, and unauthorized hostile vehicle mitigation (HVM), these barriers are the gold standard for modern security infrastructure.
Whether you need to secure a military base, a critical utilities facility, a commercial property, or a temporary high-profile event, our sand-filled defensive barriers offer rapid deployment and unyielding resilience.
Sand Filled Barriers Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Sand Filled Barriers Specification
| Model |
Height |
Width |
Length |
Internal Cells |
| SX-1(Mil 1) |
54”(1.37m) |
42”(1.06m) |
32’9”(10m) |
5+4=9 cells |
| SX-2(Mil 2) |
24”(0.61m) |
24”(0.61m) |
4’(1.22m) |
2 cells |
| SX-3(Mil 3) |
39”(1.0m) |
39”(1.0m) |
32’9”(10m) |
5+5=10 cells |
| SX-4(Mil 4) |
39”(1.0m) |
60”(1.52m) |
32’9”(10m) |
5+5=10 cells |
| SX-5(Mil 5) |
24”(0.61m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| SX-6(Mil 6) |
66”(1.68m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| SX-7(Mil 7) |
87”(2.21m) |
84”(2.13m) |
91’(27.74m) |
5+4+4=13 cells |
| SX-8(Mil 8) |
54”(1.37m) |
48”(1.22m) |
32’9”(10m) |
5+4=9 cells |
| SX-9(Mil 9) |
39”(1.0m) |
30”(0.76m) |
30’(9.14m) |
6+6=12 cells |
| SX-10(Mil 10) |
87”(2.21m) |
60”(1.52m) |
100’(30.5m) |
5+5+5+5+5=20 cells |
| SX-11(Mil 11) |
48”(1.22m) |
12”(0.30m) |
4’(1.22m) |
2 cells |
| SX-12(Mil 12) |
84”(2.13m) |
42”(1.06m) |
108’(33m) |
5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) |
108”(2.74m) |
42”(1.06m) |
10’5”(3.18m) |
6 cells |
Applications of Sand-Filled Perimeter Barriers
Our high-security barriers are versatile assets utilized across various demanding industries:
-
Military & Defense: Perimeter fortification, forward operating bases (FOBs), ammunition depots, and guard posts.
-
Critical Infrastructure: Protection for power plants, oil and gas refineries, water treatment facilities, and data centers.
-
Border Control & Checkpoints: Creating secure, structured lanes for vehicle inspection and border security.
-
Civil Engineering & Flood Control: Dual-purpose utility as robust retaining walls and emergency flood protection barriers.
Key Features & Benefits
-
Heavy-Duty Blast & Impact Resistance: Constructed from high-tensile, corrosion-resistant steel wire mesh and lined with heavy-duty non-woven geotextile, these barriers absorb and dissipate massive kinetic energy when filled with sand, earth, or gravel.
-
Rapid Deployment & Easy Assembly: Shipped flat-packed for optimized logistics, the modular design allows for quick unfolding, positioning, and filling using standard construction equipment.
-
Modular & Scalable Protection: Easily connect multiple units side-by-side or stack them vertically to create custom-height perimeter walls, checkpoints, or blast bunds tailored to your specific security requirements.
-
All-Weather Durability: Equipped with advanced UV protection and hot-dipped galvanized coating, our barriers are built to endure harsh environmental conditions—from scorching deserts to freezing arctic climates—without degrading.
Sand Filled Barriers Features
1.Galfan coated steel mesh frame
2. The integrated unit provides internal structural integrity.
3.Excellent strength and structural integrity
4.High tensile and impact resistance
5. Improve transportation efficiency and speed
Packaging:
The welded gabion mesh are collapsed when shipping.Usually in nude, or in pallet then wrapped with plastic film.Besides, customers' request are also available.
Why Choose Our Perimeter Protection Barriers?
In today's unpredictable security landscape, static defenses must be reliable. Our sand-filled barriers undergo rigorous quality control to ensure they meet international security standards, giving you peace of mind that your personnel and assets are fully protected.
