High Security Razor Ribbon Barbed Wire Coils for Border Wall and Airport Fence Protection

Basic Properties
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: KN- Razor Barbed Wire
Trading Properties
Minimum Order Quantity: 1 ton
Price: USD 900-1000
Standard Packaging: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 50 ton day
Product Summary
High Security Razor Ribbon Barbed Wire Coils for Border Wall and Airport Fence Protection 1.Product description Razor barbed wire, also known as blade barbed wire, concertina wire, or barbed tape, is a modern security fencing material fabricated with razor-sharp steel blades and high-tensile steel ...

Product Details

Product Name: Heavy Duty Razor Wire BTO-22 CBT-65 Concertina Razor Barbed Wire For Perimeter Security Fence
Key Words: Razor Barbed Wire
Blade Thickness: 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, Etc.
Size: BTO-12 BTO-15 BTO-22 BTO-30 BTO-65
Type: Barbed Wire Coil, Razor Wire Mesh
Wire Material: Hot Dipped Galvanized Wire
Certificat: Iso9001-2000
Surface: Galvanized/PVC Coated
Meterial: Galvanized Steel Wires
Outside Diameter: 450mm
Product Description

High Security Razor Ribbon Barbed Wire Coils for Border Wall and Airport Fence Protection



1.Product description

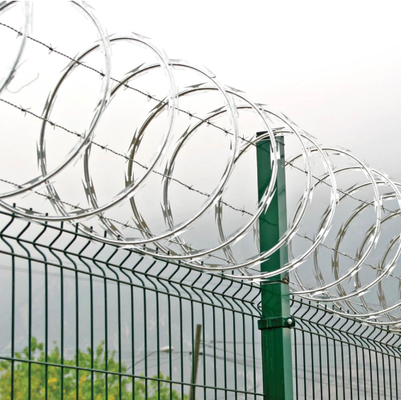

Razor barbed wire, also known as blade barbed wire, concertina wire, or barbed tape, is a modern security fencing material fabricated with razor-sharp steel blades and high-tensile steel wire. It consists of a central strand of high-tensile strength steel wire with a steel tape punched into sharp barbs, which are cold-crimped tightly onto the wire. This passive safety product delivers extremely high security and is designed to prevent intrusion and trespassing along perimeter barriers.

High Security Razor Ribbon Barbed Wire Coils for Border Wall and Airport Fence Protection
Wire diameter
2mm 2.5mm 2.8mm ( customized )
Thickness
0.5 mm - 0.6 mm.
Razor length
12 mm - 21 mm.
Razor width
13 mm - 21 mm.
Barb spacing
26 mm - 100 mm.
Outside diameter
450 mm - 960 mm.
Number of loops
33 mm - 102 mm.
Standard length per coil
8 m - 16 m.
Razor barbed types
Single coil and cross type.
Outside Diameter
No. of Loops
Standard Length per Coil
Type
Notes
450mm
33
7-8m
CBT-60/65
Single coil
500mm
56
12-13m
CBT-60/65
Single coil
700mm
56
13-14m
CBT-60/65
Single coil
960mm
56
14-15m
CBT-60/65
Single coil
450mm
56
8-9m
BTO-12/22/25/30
Cross type
500mm
56
9-10m
BTO-12/22/25/30
Cross type
600mm
56
10-11m
BTO-12/22/25/30
Cross type
600mm
56
8-10m
BTO-12/22/25/30
Cross type
700mm
56
10-12m
BTO-12/22/25/30
Cross type
800mm
56
11-13m
BTO-12/22/25/30
Cross type
900mm
56
12-14m
BTO-12/22/25/30
Cross type
960mm
56
13-15m
BTO-12/22/25/30
Cross type
980mm
56
14-16m
BTO-12/22/25/30
Cross type



Key Features & Advantages

  • Anti-Climb & Anti-Cut Performance: The razor-sharp barbs combined with high-tensile core wire make it almost impossible to cut with standard tools or climb without specialized protective gear.

  • Superior Corrosion Resistance: Utilizing heavy-duty hot-dip galvanized coating (up to 275g/m²) or stainless steel, our coils are built to withstand harsh coastal, desert, or tropical environments for over 10-15 years.

  • Concertina Cross Type Structure: Fastened by heavy-duty clips, adjacent loops interlock to form an interlocking diamond shape when expanded, leaving no gaps for intrusion.

  • Rigid and High-Strength: The core wire resists sag and distortion, maintaining its menacing profile under physical impact or extreme weather conditions.

Key Features
Superior Deterrence & Security – The multiple razor-sharp blades are designed to inflict serious injury on any vandal, robber, or saboteur, creating a strong psychological deterrent effect. The special design makes climbing and touching extremely difficult, providing a formidable physical barrier that is nearly impossible to penetrate.

High Durability & Corrosion Resistance – Manufactured from hot-dipped galvanized steel, stainless steel, or PVC-coated materials, razor wire offers excellent corrosion resistance, anti-aging properties, and long service life with minimal maintenance.

Cost-Effective & Easy Installation – Razor wire is economical and practical, with compact and rational structure. Short sections can be installed extremely fast with minimal equipment, allowing for rapid deployment during emergencies.

Aesthetic & Practical – With beautiful and sharp blades combined with a strong core wire, razor wire offers secure fencing while maintaining an attractive appearance

Manufacturing Flow & QC

  • Punching: High-speed precision punching of steel ribbons into sharp razor profiles.

  • Crimping: Mechanically wrapping and crimping the razor ribbon tightly around the high-tensile core wire.

  • Clipping: Structuring the interlocking Concertina pattern using stainless steel or galvanized clips.

  • Inspection: Testing coil weight, barb spacing, zinc coating thickness, and wire tensile strength before packaging.

Packaging & Loading Details

  • Standard Export Packing: Compressed coils wrapped with waterproof paper inside and woven bags outside.

  • Palletized Packing: Placed on heavy-duty wooden or steel pallets with protective cardboard corners for easy forklift handling.

  • Loose Loading: Maximum container capacity utilization for bulk shipments.
