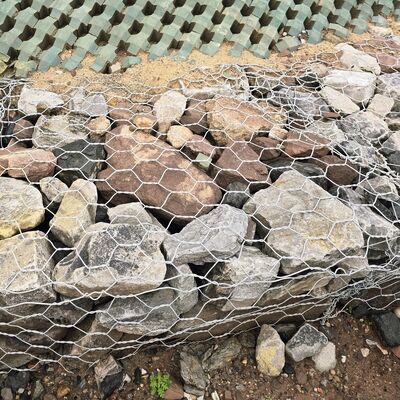

Galfan + PVC Coated Gabion Box for River Bank Retaining Wall Protection Fence
Product Description
Our Gabion Box is a high-strength, dual-corrosion-resistant metal mesh cage specially developed for river bank reinforcement, water and soil conservation, slope retaining wall and flood control protection projects. Taking gabion box as the core product, it adopts double-layer protection technology of zinc-aluminum alloy (Galfan) substrate and PVC outer coating, which perfectly solves the problems of metal rust, mesh aging and structural deformation of traditional gabion products in complex water environment. The product features high structural stability, strong erosion resistance and long service life, and is the preferred structural fence material for municipal water conservancy, river regulation, highway slope protection and coastal engineering projects worldwide
Different from ordinary single galvanized gabion boxes, this series of gabion boxes adopts integrated composite coating process, with dual protection of internal Galfan alloy and external PVC layer, realizing super environmental adaptability. The inner Galfan zinc-aluminum alloy coating has self-repairing performance, which can effectively prevent oxidation and corrosion of the wire mesh when facing minor scratches and installation wear, and its anti-rust performance is 2-3 times that of ordinary hot-dip galvanizing. The outer high-density PVC protective layer forms a closed physical barrier, which can isolate water, oxygen, acid-base substances and coastal salt fog erosion, and has excellent UV resistance and wear resistance. The overall service life of the product can reach more than 30 years, which greatly reduces the later maintenance cost of the project.
In terms of structure, all our gabion boxes adopt standard hexagonal double-twisted weaving technology, with uniform mesh tension, tight overall structure and strong toughness. The wire body is not easy to loose and deform after filling stones, and can bear long-term water flow impact and geological settlement pressure. The flexible structure can adapt to the slight deformation of river bank and slope, avoiding the collapse and damage of rigid retaining wall, ensuring the long-term stable operation of the protection project.
Specification
| Hexagonal Wire Mesh Gabion Basket, Hot Dipped Galvanized Gabion Box |
| 1. Wire diameter |
2.0-4.0mm |
| 2. Mesh opening |
60x80 mm, 80x100 mm, 100x120mm, 120x150mm |
| 3. Gabion box size |
2x1x0.5m, 2x1x1m, 3x1x1m, 4x1x1m ect. |
| 4. Material |
Hdg steel wire, Galfan Steel Wire, PVC coated steel wire ect. |
| 5. Weaving |
Straight twist,reverse twist,straight and reverse twist(3 twist,5 twist etc.) |
Feature
1. High versatility: Gabion Wall Cages can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance.
2. Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our galfan gabion and PVC gabion can last up to 120 years based on different exposure conditions.
3. Robust and flexible structure: woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses.
4. Good ductility, no structural joints.
Advantages
1. High Quality Material
2. Excellent permeability.
3. Good corrosion and rust resistance.
4. High tensile strength.
5. Good durability and long lifespan.
6. Adcanced Technique
7. Strict Quanlity Testing
Application

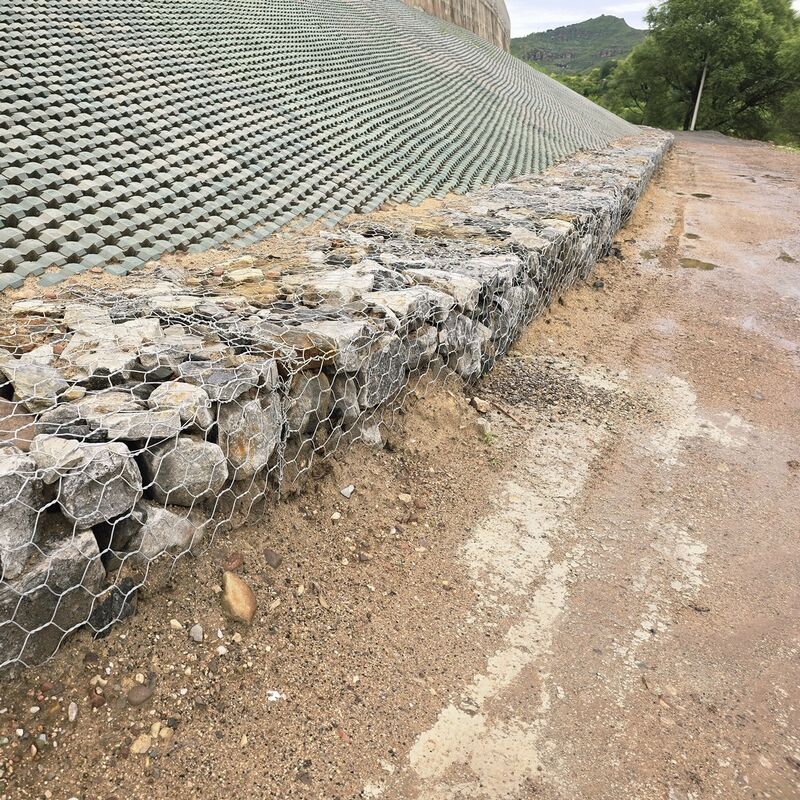

Gabion wall cages are widely used on the project sites after filling it with natural stones. They act as a flexible and permeable structures such as Retaining walls, sea walls, channel lining and wires for erosion control projects.
Hexagonal wire netting with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing
