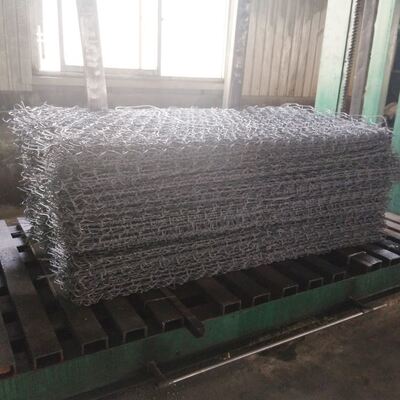

8*10cm Galvanized Pvc Coated Gabion Box Hexagonal Woven Stone Filled Gabion Basket
Product Details
8x10cm galvanized PVC gabion box
,hexagonal woven stone gabion basket
,PVC coated gabion basket with warranty
8*10cm Galvanized Pvc Coated Gabion Box Hexagonal Woven Stone Filled Gabion Basket
1. Product Overview

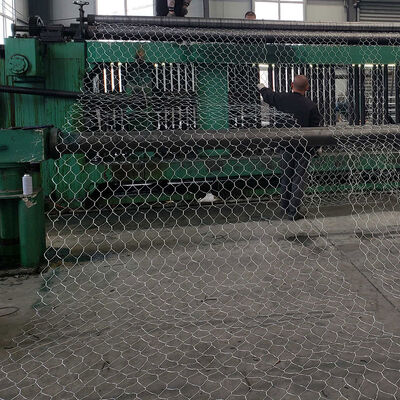

8*10cm Galvanized Pvc Coated Gabion Box represent an engineered, durable, and cost-effective solution specifically designed for heavy-duty earth retention, soil erosion control, and slope stabilization. Fabricated from high-tensile steel wire with a heavy galvanized undercoat and an extruded Polyvinyl Chloride (PVC) protective layer, these gabion baskets are mechanically woven into a continuous double-twisted hexagonal mesh structure.

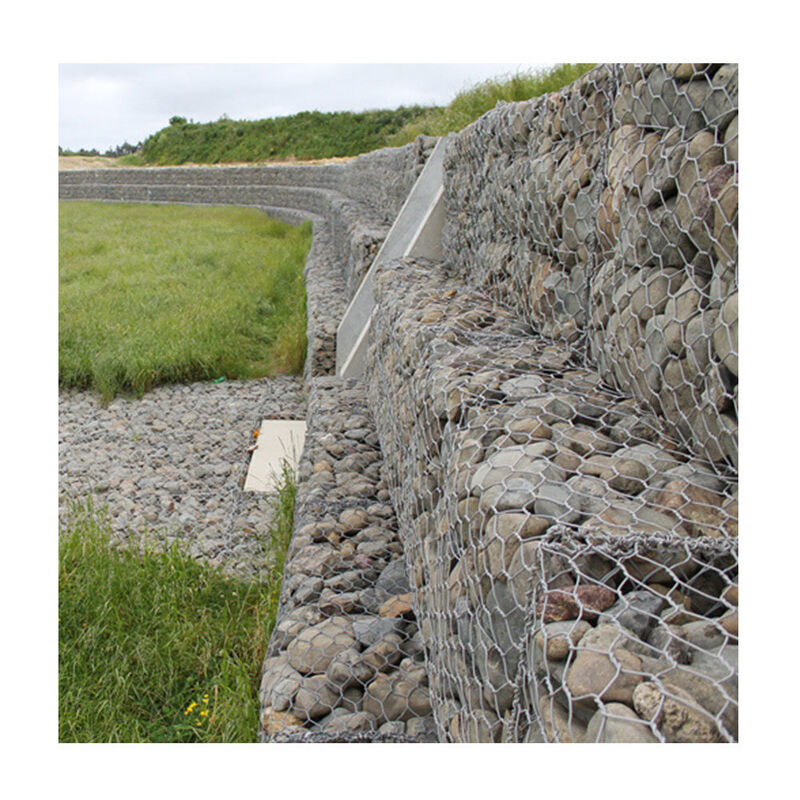

Engineered specifically for gravity retaining walls, riverbank protection, and coastal defense, the double-twist woven design ensures structural flexibility and non-raveling integrity, allowing the structure to absorb differential settlement without mechanical failure.
2. Product usage
- River channel regulation, riverbank & lake shore protection
- Slope stabilization, mountain slope reinforcement, highway & railway slope protection
- Flood control, dam reinforcement, hydraulic barrier construction
- Landscape retaining walls, garden decorative gabion walls, outdoor landscape engineering
- Coastal erosion prevention, breakwater and revetment projects
3. Technical Specifications & Manufacturing Standards
|
Parameter |
Specification Range |
|
Mesh Type |
Double-twisted hexagonal woven mesh |
|
Mesh Size |
60 × 80 mm, 80 × 100 mm, 100 × 120 mm |
|
Core Wire Diameter |
2.0 mm – 3.0 mm (Heavy Galvanized / Galfan) |
|
PVC Coating Thickness |
0.5 mm nominal (0.4 mm – 1.0 mm custom options) |
|
Overall Wire Diameter |
3.0 mm – 4.0 mm (inclusive of PVC coating) |
|
Selvedge Wire Diameter |
3.4 mm – 4.5 mm |
|
Lacing Wire Diameter |
2.2 mm – 2.4 mm |
|
Zinc Coating Weight |
240 – 300 g/m² (ASTM A641 / EN 10244-2 Class A) |
|
Standard Basket Sizes |
2m × 1m × 1m, 3m × 1m × 1m, 4m × 1m × 1m, 2m × 1m × 0.5m (Custom available) |
|
Tensile Strength |
Wire core: 350 – 500 N/mm² according to EN 10223-3 / ASTM A975 |
4. Product Advantages
- Eco-Friendly Permeability: The breathable mesh structure allows natural water and soil circulation, avoiding water stagnation and soil hardening. It creates a favorable growth environment for aquatic plants and microorganisms, gradually restoring ecological balance of riverbanks and slopes
- Flexible & Shock-Resistant: Flexible woven structure disperses water flow impact and geological pressure effectively, superior to rigid concrete structures in anti-seismic and anti-deformation performance
- Easy Installation & Low Maintenance: Pre-fabricated gabion boxes are lightweight and easy to transport. On-site assembly only requires simple lacing and stone filling, no complex construction equipment needed. Zero daily maintenance after installation, greatly reducing project labor and maintenance costs
- Durable & Cost-Effective: High anti-corrosion and anti-wear properties guarantee long service life. Compared with traditional concrete retaining walls, woven gabion projects have lower overall investment and better long-term stability
- Customizable Specifications: Support customized mesh size, wire diameter, box dimension, and coating type to meet diverse engineering and landscape design requirements
-
