Double-Twisted Galfan Zinc Coating 810cm / 21*1m Gabion Basket Retaining Wall Fence

Large Image : Double-Twisted Galfan Zinc Coating 8*10cm / 2*1*1m Gabion Basket Retaining Wall Fence

Product Details:

Place of Origin:	HB
Brand Name:	KN
Certification:	ISO, CE, SASO,CO,COC,PVOC
Model Number:	KN-Gabion

Payment & Shipping Terms:

Minimum Order Quantity:	10000 ㎡
Price:	Negotiated
Packaging Details:	In Bundle or According to Customer Request
Delivery Time:	15 Working Days
Payment Terms:	L/C, T/T, Western Union, , Trade Assurance, Paypal
Supply Ability:	5000 Tons per year

Contact Now

Detailed Product Description

Material:	Galfan Zinc Coating	Lacing Wire:	2.2mm, 2.4mm
Technology:	Woven	Surface Treatment:	Hot Dipped Galvanized
Mesh Wire:	2.2mm To 3.0mm	Selvedge Wire:	2.2mm To 2.7mm
Prodcution:	5 Container Per 7 Days	Sample:	Free
Daily Output:	10000 Sq.mt	Package:	Compress In Bundle To Save Space
Stock Size:	211m, 311m,	Production Lines:	12 Lines
Highlight:	Double-Twisted Gabion Basket retaining wall , Galfan Zinc Coating Gabion Basket fence , 8x10cm Gabion Basket with warranty

Double-Twisted Galfan Zinc Coating 8*10cm / 2*1*1m Gabion Basket Retaining Wall Fence

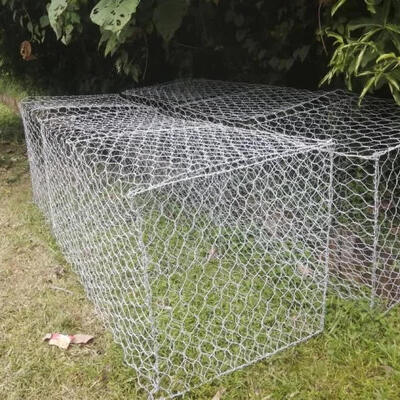

This double-twisted Galfan zinc coated gabion basket is a heavy-duty hexagonal wire mesh stone cage, common sized in 2x1x1m dimension with 8×10cm mesh aperture.

Adopting Galfan zinc-aluminum(Zn95+Al5) coating and mechanical double-twisted weaving technology, the gabion cage features ultra-strong corrosion resistance, structural stability and flexibility.

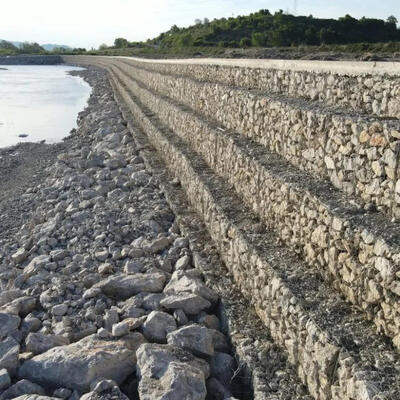

It is widely used for retaining wall construction, slope protection, river bank reinforcement, landscape fencing and erosion control projects, serving as a durable and eco-friendly civil engineering solution.

Wire Thickness Specification:

Mesh type	8*10cm		6*8cm
Characteristics	Metallic coated	PVC coated	Metallic coated	PVC coated
Mesh openings	83mm x 114mm	83mm x 114mm	64mm x 83mm	64mm x 83mm
Mesh wire	2.7mm (0.106 in.)	3.05mm( 0.120 in.)	2.2mm (0.087 in.)	2.2mm (0.087 in.)
Selvage wire	3.4mm (0.134 in.)	3.8mm (0.150 in.)	2.7mm (0.105 in.)	2.7mm (0.105 in.)
Lacing wire	2.2mm (0.087 in.)	2.2mm (0.087 in.)	2.2mm (0.087 in.)	2.2mm(0.087 in.)

Size of Gabion Box:

Opening(mm)	Wire Diameter(Metal Wire) mm	Wire Diameter (PVC Coated) Inner/Outside(mm)	Strands
60X80	2.0-2.8	2.0/3.0-2.5/3.5	3
80X100	2.0-3.2	2.0/3.0-2.8/3.8	3
80X120	2.0-3.2	2.0/3.0-2.8/3.8	3
100X120	2.0-3.4	2.0/3.0-2.8/3.8	3
100X150	2.0-3.4	2.0/3.0-2.8/3.8	3
120X150	2.0-4.0	2.0/3.0-3.0/4.0	3

Size of Gabion Mattress:

Size				Notes
Length(mm)	Width(mm)	Height(mm)	Unit	volume(m³)
2.00	1.00	0.30	1	0.60
3.00	1.00	0.30	2	0.90
4.00	1.00	0.30	3	1.20
2.00	1.00	0.50	1	1.00
3.00	1.00	0.50	2	1.50
4.00	1.00	0.50	3	2.00
1.00	1.00	1.00	0	1.00
1.50	1.00	1.00	0	1.50
2.00	1.00	1.00	1	2.00
3.00	1.00	1.00	2	3.00
4.00	1.00	1.00	3	4.00

1. High-Grade Galfan Coating

Different from ordinary hot-dip galvanized wire, this gabion basket adopts Galfan zinc-aluminum composite coating technology. The alloy coating forms a dense protective layer on the steel wire surface, effectively isolating air, water and saline-alkali substances. It delivers 3-5 times longer service life than traditional galvanized gabions, with excellent anti-rust and anti-corrosion performance, adapting to harsh environments such as coastal areas, river wetlands and saline-alkali land.

2. Reinforced Double-Twisted Structure

The mesh is woven by professional mechanical double-twisted process with uniform mesh opening and tight wire joint connection. The unique double-twisted hexagonal structure will not loose or deform even if single wire is damaged, ensuring overall structural integrity and strong tensile strength. The rigid woven structure can bear heavy stone filling and long-term soil pressure, avoiding collapse and deformation of retaining walls.

3. High-Tensile Steel Wire Base

Made of high-quality low-carbon steel wire as raw material, the wire body has good toughness and high tensile strength, not easy to break or bend. All edges are neatly processed without burrs, ensuring safe construction and installation. Equipped with matching lacing wires and reinforcing rings, the gabion basket can be firmly fixed after assembly, greatly improving overall stability.

One-Stop Customized Service

In addition to standard 3*3*0.3m Turkish-size gabion mattresses, we support personalized customization of wire diameter, mesh size, coating thickness, color and product size for all gabion box products. We provide free professional engineering solution consultation, parameter matching and construction suggestion guidance for Turkish customers. From order confirmation, production inspection, logistics tracking to after-sales technical support, we provide full-cycle one-stop service to help customers reduce project costs and improve construction efficiency.

Double-Twisted Galfan Zinc Coating 8*10cm / 2*1*1m Gabion Basket Retaining Wall Fence

Packaging & Shipping

All gabion baskets are folded and packed in standard export cartons or woven bags, equipped with complete installation accessories (lacing wires, reinforcing wires). Folded packaging saves shipping space and reduces transportation cost. We support bulk order supply and global shipping, and can provide customized packaging solutions according to customer requirements.
