ASTM A975 Certified Gabion Basket 2.7mm Wire Galfan Coated for Slope Stabilization & Erosion Control Projects

Large Image : ASTM A975 Certified Gabion Basket 2.7mm Wire Galfan Coated for Slope Stabilization & Erosion Control Projects

Product Details:

Place of Origin:	China(main land),Hebei
Brand Name:	SHUXIN Gabion Basket 2.7mm
Certification:	CE / SGS / ISO
Model Number:	SX-001

Payment & Shipping Terms:

Minimum Order Quantity:	5000square meters
Price:	negotiated
Packaging Details:	Usually in bundle and Shrink Film outside. Gabion Basket 2.7mm
Delivery Time:	10 day(s) after payment received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	100000 square meters per week

Contact Now

Detailed Product Description

Material:	Galvanized Iron Wire, Low-Carbon Iron Wire	Type:	Weave Type
Hole Shape:	Hexagonal	Wire Gauge:	2.0-4.0mm
Usage:	Protection	Packing:	Bundle
Highlight:	ASTM A975 Gabion Basket , Galfan coated gabion basket , Gabion basket for slope stabilization

ASTM A975 Certified Gabion Basket 2.7mm Wire Galfan Coated for Slope Stabilization & Erosion Control Projects

Product Highlights

Certified to EN10223-3 and ASTM A975 standards
Hot-dip galvanized ≥300g/m², Galfan (Zn-5%Al), or PVC coated for 50–120 years service life

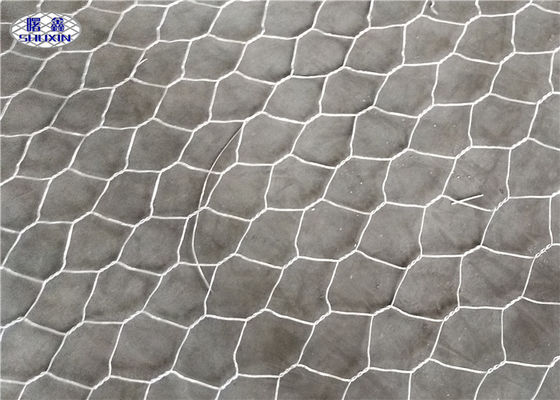

Double-twisted hexagonal mesh for high tensile strength and flexibility
Uniform mesh opening and flat panels for faster installation
Full customization: size, wire diameter, coating, and packaging
BV / SGS factory audit reports and mill test certificates available

Hexagonal Sack Gabion Mattress is similar with gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.

Product Attributes

Material	Low Carbon Steel Wire / Galvanized Wire / Galfan Wire / PVC Coated Wire
Wire Diameter	2.0-4.0mm
Mesh Opening	60×80mm / 80×100mm / 80×120mm / 100×120mm / 120×150mm
Surface Treatment	Hot-Dip Galvanized / Galfan (Zn-5%Al) / PVC Coated
Zinc Coating	≥240-300g/m²
Hole Shape	Hexagonal
Weave Type	Double Twisted
Application	River Protection / Slope Stabilization / Retaining Wall / Flood Control
Feature	Corrosion Resistant / High Tensile / Flexible / Permeable
Origin	Hebei, China
Brand Name	[Your Brand]
Model Number	[Your Model No.]
Customization	OEM/ODM Available
Certification	ISO 9001 / EN10223-3 / ASTM A975
MOQ	500 m²

ASTM A975 Certified Gabion Basket 2.7mm Wire Galfan Coated for Slope Stabilization & Erosion Control Projects

Weave Gabion Basket Specifications
Gabion Basket Retaining Wall 80x100mm 100x120mm	Mesh Wire Dia.	2.7 mm	Zinc coating: >260g/m2
	Selveage Wire Dia.	3.4 mm	Zinc coating: >275g/m2
	Tie Wire Dia.	2.2 mm	Zinc coating: >240g/m2
Sack Gabion Basket 60x80mm	Mesh Wire Dia.	2.4 mm	Zinc coating: >240g/m2
	Selveage Wire Dia.	2.7 mm	Zinc coating: >260g/m2
	Tie Wire Dia.	2.2 mm	Zinc coating: >240g/m2
Gabion Cage for Flood Control Customized Size	Mesh Wire Dia.	2.0 ~ 4.0 mm
	Selveage Wire Dia.	2.7 ~ 4.0 mm
	Tie Wire Dia.	2.0 ~2.2 mm

Technical Specifications

Material: Low carbon steel wire, galvanized wire, Galfan wire, PVC/PE coated wire
Mesh Wire Diameter: 2.0mm – 4.0mm
Selvedge Wire: One gauge thicker than mesh wire
Lacing Wire: 2.2mm standard
Mesh Opening: 60×80mm, 80×100mm, 80×120mm, 100×120mm, 120×150mm
Zinc Coating: ≥240–300g/m² (hot-dip galvanized)
Tensile Strength: ≥380–420 MPa
Elongation: ≥12%

Why Choose Us)

Factory Direct – 8 production lines, 200 tons/day capacity
Free Technical Support – Design optimization and spec consultation by our engineering team
Fast Response – Reply within 2 hours during business hours
Sample Available – Free samples for quality verification (freight collect)
OEM/ODM – Custom sizes, colors, coatings, and private label packaging
Quality Guarantee – Third-party inspection (SGS/BV) accepted
