Product Details:
|
| Cells: | 5 Cells | Sureface Treatment: | Heavy Hot Dipped Galvanized |
|---|---|---|---|
| Mesh Hole: | 3" X 3" | Wire: | 5.0mm |
| Life Duration: | ≥ 25 Years | Warranty: | ≥ 3 Years |
| High Light: | hesco defensive barriers,hesco bastion |
||

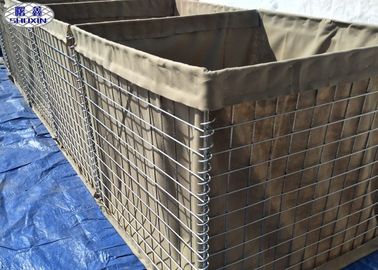

Sand and earth filled Military Sand Wall Gabion Box With Geotextile Lined
Military Sand Wall is a modern gabion primarily used for flood control and militaryfortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms. It has seen considerable use in Iraq and Afghanistan.
Assembling the Military Sand Wall entails unfolding it and filling it with sand, soil or gravel, usually using a front end loader. The placement of the barrier is generally very similar to the placement of a sandbag barrier or earth berm except that room must generally be allowed for the equipment used to fill the barrier. The main advantage , strongly contributing to their popularity with troops and flood fighters, is the quick and easy setup. Previously, people had to fill sandbags, a slow undertaking, with one worker filling about 20 sandbags per hour. Workers using and a front end loader can do ten times the work of those using sandbags
Material Specification
Wire Thickness 8 Gauge (4mm) Zinc coated
Mesh Size 3”(76.2mm) x 3”(76.2mm)
Joining Pins 8 Gauge (4mm) Zinc coated steel wire
Geotextile(2mm) 300 gsm heavy-duty non-woven polypropylene
Flat Packed Individual Unit Dimensions & Weight
| Unit | Height | Width | Length | Weight |
| 3 | 8" (0.2m) | 39" (1.0m) | 39" (1.0m) | 231lb (105kg) |
Packing Dimensions & Weights
| Unit | Units per Pallet | Pallet Height | Pallet Width | Pallet Length | Pallet Weight | Pallets Per 13.5m Trailer | Pallets Per 40' Container |
| 3 | 8 | 70" (1.78m) | 46" (1.17m) | 46" (1.17m) | 1892lb (860kg) | 22 |
20 |
All Size Sheet :
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
The Detailed Explanation of Application for Military Sand Wall:
1. Military Fortifications
Most Army Used build up a Military Fortifications, Because it can stack on each other, You can change the width and height by your demands. More easy and flexible.
2. Shooting Range
Nowadays, A lot of people useto build a shooting range, because its High Strength Defense, more safety.
3. Flood Control
We Mentioned above, The Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the Barrier as Flood Protection Wall.Even around the hotel they stand up the Barrier for Protection Wall.
The Advantages for Military Sand Wall:
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay
