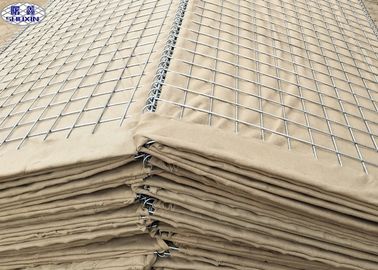

Brown Military Hesco Barrier Sand Wall , Gabion Baskets Retaining Wall

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: Military Sand Wall
Trading Properties
Minimum Order Quantity: 100 unit
Price: Negotiated
Standard Packaging: pallet and plastic film
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500 units per week
Product Summary
Military Defensive Barriers Retaining Wall For Protection Description of Military Barriers : Military Sand Wall rapidly deployable fortification systems Easily and Rapidly constructed reate effective and economical protective structures. Originally designed to replace conventional field fortificatio...

Product Details

Highlight:

hesco bastion

,

wire mesh box

Accessories: Spring, Joint Pin, Geotextile
Sureface Treatment: Heavy Hot Dipped Galvanized
Mesh Hole: 3" X 3"
Wire: 5.0mm
Life Duration: ≥ 25 Years
Warranty: ≥ 3 Years
Product Description

                          Military Defensive Barriers Retaining Wall For Protection



Description of Military Barriers :



Military Sand Wall rapidly deployable fortification systems



Easily and Rapidly constructed reate effective and economical protective structures. Originally designed to replace conventional field fortification materials such as sandbags, units were first used operationally by the British Army in the 1991 Gulf War.  is now in service with many major military organisations including the UK MoD, ADF and the US Military and has become a benchmark in force protection throughout the world.



Whether used to define boundaries or as a preventative barrier,  units have been employed to safeguard personnel, vehicles, equipment, facilities and other vulnerable target areas in a variety of military, peacekeeping, humanitarian and civilian operations.  units have also been extensively used in civil applications in flood management, erosion control and slope stability applications.



Quick View of Military  Hesco Barriers:



Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding



The Military Sand Wall​ come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4m x 1.1m x 9.8m (4'6" x 3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').

The Common Specification of Military  Barriers as followed:

MODEL Height Width Length NO. of Cells
SX-1 4'6"(1.37M) 3'6"(1.06M) 32'(10M) 9 cells(1*4, 1*5)
SX-2 7'(2.1M) 3'6"(1.06M) 108'(33M) 30 cells(6*5)
SX-3 2'(0.61M) 2'(0.61M) 4'(1.21M) 2 cells
SX-4 3'3"(1.0M) 3'3"(1.0M) 32'(10M) 10 cells(2*5)
SX-5 2'(0.61M) 2'(0.61M) 10'(3.05M) 5 cells
SX-6 5'6"(1.68M) 2'(0.61M) 10'(3.05M) 5 cells
SX-7 7'3"(2.21M) 7'(2.13M) 90'(27.74M) 13 cells(2*4,1*5)
SX-8 4'6"(1.37M) 4'(1.22M) 32'(10M) 9 cells(1*4, 1*5)
SX-9 3'3"(1.0M) 2'6"(0.76M) 30'(9.14M) 12 cells(2*6)
SX-10 7'(2.12M) 5'(1.52M) 95'(30.5M) 20 cells(4*5)
SX-11 3'3"(1.0M 3'3"(1.0M) 3'3"(1.0M) 1 Cell
SX-12 7'3"(2.21M) 7'3"(2.21M) 7'3"(2.21M) 1 Cell



Military  Barriers Features :



Military Sand Wall​ can be built to any required length and to any height. The unique joining system allows the user great flexibility in configurations and requirements. One of the key advantages of the system is that any readily available infill material can be utilised. Sand, rubble, rocks, soil, concrete and even snow have been successfully used.



Rapid construction is another key feature of the product. A typical wall of units equivalent to approximately 1500 sandbags, can be erected and filled by two men and a single common loader in less than twenty minutes. An equivalent wall constructed of sandbags would take 10 men 7 hours to build.



Military  Barriers Application:



1. Flood Control.



Most of People used the Barrier as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.



2. Military Defence



Most of army used  Barrier for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.



3. Hotel Pretection



A lot of Superior Hotel used  Barrier as the protection wall outside, safety, and beautiful.



Brown Military Hesco Barrier Sand Wall , Gabion Baskets Retaining Wall
