Product Details:
|
| Material: | Q195 Low Carbon Wire | Mesh Hole: | 76.2mm X76.2mm, 8cm X 8cm |
|---|---|---|---|
| Wire: | 5.00 Mm | Geotextile: | 300gsm Sand Color,Green Color, Beige Color |
| Life Duration: | ≥ 25 Years | Warranty: | ≥ 3 Years |
| Highlight: | wire mesh retaining wall,bastion barrier |
||
Security Defensive Bastion Barriers Gabion Basket Sand Wall For Denfense Department
Product Description:

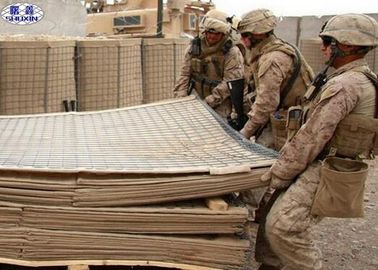

The gabion Defensive Bastion Barriers is a modern gabion primarily used for flood control and military fortifications.
It is made of a collapsible wire mesh container and heavy duty fabric liner.
Defensive Bastion Barriers Conponents:
it is made of galvanized welded mesh panels and lined with non-woven geptextile , spring and other fittings, can be filled with sand,earth,cement,stone.can be used in speparate cell or come cells joint together.
Quick View of Defensive Bastion Barriers :
Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
Defensive Bastion Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Bastion Barriers Characters:
Defensive Bastion Barriers Wall Application :
FAQ:
1. When can I get the price?
We usually quote within 24 hours after we get your inquiry.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3. Can you do the design for us?
Yes. We have a professional team with rich experience in design and manufacturing.
4. What about the lead time for mass production?
It depends on the order quantity and the season you place the order
Products pictures:
