Product Details:
|
| Raw Material: | Galfan Coated Wire | Geotextile: | 300 G/㎡ Standard |
|---|---|---|---|
| Mesh Diameter: | 4.0mm Diameter Wire | Apeture: | 3" (76.2mm×76.2mm) |
| T/S: | 500 - 800 MPA | ||
| Highlight: | hesco defensive barriers,hesco bastion |
||
SX Military Used Sand Wall For Stopping Floodwaters Easy Installation

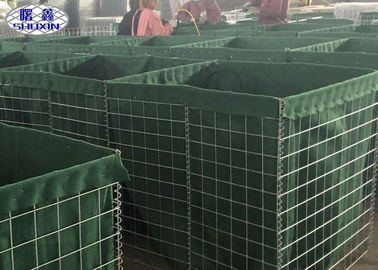

Military Gabion Box is a kind of wire-mesh steel basket, hinged together with a helical coil system and lined with non-mesh geotextile cloth that folds up like flat-pack furniture. In the field, it's unfolded and filled by a standard front loader or backhoe, with any dirt or rubble that's locally available and tamped down hard. By lining these baskets up and stacking them like building blocks, army engineers can build a wall ten times faster than sandbagging, with fewer people. The result is an earthen wall thick enough to shrug off a rocket propelled grenade.
The Standard Technical Specifications from SX 1 to SX 19
| Welded Military Gabion Box for Flood Retaining Wall | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Military Defensive Barrier Wall
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Gabion Basket products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Defensive Barrier can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Gabion Barrier Box is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
