Product Details:
|
| Raw Material: | Hot Dipped Galvanized Iron Wire | Geotextile: | 250 G/㎡ Or 300 G/㎡ Standard |
|---|---|---|---|
| Technology: | Welded, Assemble And Stapled | Apeture: | 3" (76.2mm×76.2mm) |
| Color: | Sand Color | Accessories: | Staple, Joint Pin, Spring |
| High Light: | defence barrier,bastion barrier |
||
Multi - Cellular Customized Galvanized Defensive Bastion Barriers Wall Used For Prevent Rust
Defensive Bastion Barriers Wall is is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, earth, gravel and blinding are frequently used as filling inside which can prevent by Heavy non-woven geotextile cloth.
Welded Gabion Bastion Wall are mainly used in military and flood control for its modular structure and quick setup. For military, a gabion Box with 24 inches thickness can stop rifle bullets, shell fragments and other shrapnel. While for flood protection, gabion Basket can be assembled soonest and come into use.
SHUXIN products have been used in many countries around the world including Afghanistan, Iraq, Bosnia, Kosovo, Yemen, Sri Lanka, Jordan, UAE and Turkey.
Brief Introduction for Defensive Bastion Barriers Wall:
Material: Galvanized steel wire or Galfan / zinc-5%aluminum wire
Service Life: 15-20 years
Wire diameter: 3.0mm- 6.0mm
Aperture: 3" (76.2mm × 76.2mm ) Standard
Color of geotextile: Grey and Military, Beige, Sand Color and so on.
Weight of Geotextile: 250 g/m2 or 300 g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded
The Standard Technical Specifications from SX 1 to SX 19
| Welded Defensive Bastion Barrier Walls | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Welded Gabion Barrier Walls
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, SHUXIN products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Military Gabion Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Welded Gabion Barrier can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Defensive Gabion Barrier is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Gabion Box for Retaining Wall
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible

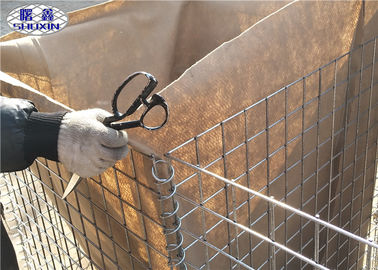

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
4. Fast and Simple Operation
A security wall using Sand earth-filled barrier can be filled by two persons and a standard front-end loader in just 20 minutes, the equivalent sized wall of 1,500 sandbags will take 10 persons up to 7 hours to fill and build.
