Product Details:
|
Components: | Gabion Mesh,Spring, Joint Pin, Geotextile Fabric | Sureface Treatment: | Heavy Hot Dipped Galvanized |
---|---|---|---|
Mesh Hole: | 3" X 3" | Wire: | 5.0mm |
Life Duration: | ≥ 25 Years | Warranty: | ≥ 3 Years |
Type: | Welded Wire Mesh | Style: | Mil 1 -- Mil 10 |
Highlight: | hesco bastion,wire mesh box |

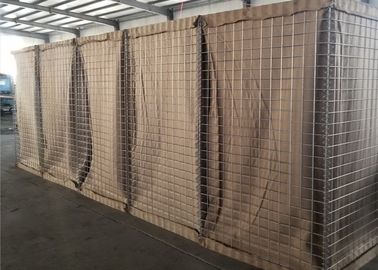

Heavy Galvanized Wire Military Sand Wall Hesco Defence Barriers
( 12 years of export experience )
Introduction of Hesco Defence Barriers :
Since the First Gulf War the rapidly deployable wire mesh baskets have been deployed in arduous and remote locations creating simple perimeter walls to complex city-like fortification, defending personnel, equipment and critical assets of the US Army, UK MOD, USMC, USAF and NATO.
Hesco Barrier units can be used for perimeter protection, border control and temporary accommodation bunkers.
The Concertainer MIL hesco barrier unit is a multi-cellular barrier system manufactured from welded Zinc-Aluminium coated steel mesh or galvanized steel wire mesh and lined with heavy-duty non-woven polypropylene geotextile.
The unique design, strength and versatility enable corners to be constructed easily, shaping the defensive barrier to the surrounding landscape and when joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
1. Military Barrier
A geotextile lined unit for general use as an earth filled barrier .
The units are suiltable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the contruction of protective walls and barriers.
2. Specification:
1) Material: Steel wire, galvanized wire
2) Wire diameter: 4mm-5mm
3) Hole: 3''x3''
4) Hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
5) Geotextile: heavy duty geotextile,non-woven,permeable, polypropulene farbric,
beige or green color,
Material : All wires conform to BS EN10218-2012, Zinc-Alunminum coating are to BS EN 10244-2:2009 Geotextile: heavy duty geotextile, non-woven,permeable,polypropulene farbric Geotextile color: beige or green color
Mesh Hole: 3” X 3” Unit Size : 0.61m x 0.61m x 3.05m Cells: 1 unit = 5 cells
|
||||
all dimensions and weight are nominal ,Diagrams and products are for illustrative purpose only. |
The Common Specification of Military HESCO barriers as followed:
MODEL | Height | Width | Length | NO. of Cells |
SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
Military barriers Sand Wall Application:
1. Flood Control.
Most of People used as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.
2. Military Defence
Most of army used for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.
3. Hotel Pretection
A lot of Superior Hotel used as the protection wall outside, safety, and beautiful.
